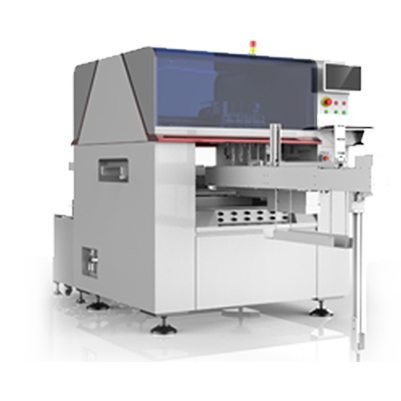

BRUNIMIND Y50/Y60 Multifunctional Special-Shaped Plug-In Machine - High Speed & Precision
Performance Parameters
|
Item |
Y50 |
Y60 |
|---|---|---|
|

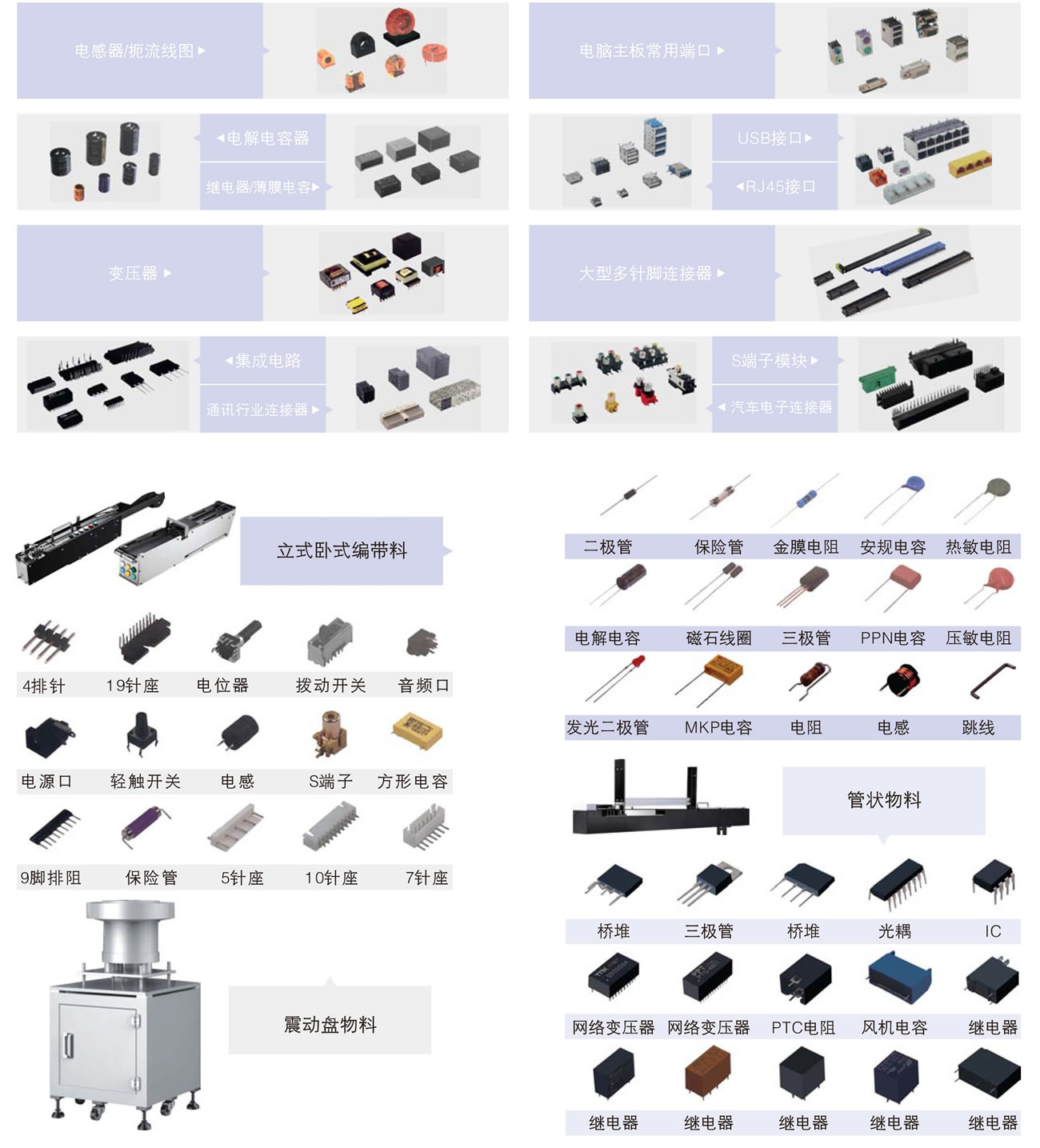

Applicable Component |
Capacitor, Transistor, IC, Inductor, Connector, Transformer, etc., tape components, SMT components |
Capacitor, Transistor, IC, Inductor, Connector, Transformer, etc., tape components, SMT components |
|
Component Size |
L40xW35mm, H<55mm (including SMT components) |
L40xW35mm, H<55mm (including SMT components) |
|
Insertion Accuracy |
±0.025mm(3σ，H<25mm); ±0.035mm(3σ，H<55mm) (max<0.05mm) |
±0.025mm(3σ，H<25mm); ±0.035mm(3σ，H<55mm) (max<0.05mm) |
|
Repeatability |
±0.02mm |
±0.02mm |
|
Insertion Direction |
360° in 0.1° increments |
360° in 0.1° increments |
|
Tact Time |
0.50 S/C |
0.50 S/C |
|
Theoretical Speed |
>7500CPH |
>11000CPH |
|
PCB Size |
Min.L50xW50--Max.L410x W360 mm (T:0.6-5.0mm) |
Min.L50xW50--Max.L550x W450 mm (T:0.6-5.0mm) |
|
PCB Thickness |
0.5-5mm, max 5kg |
0.5-5mm, max 5kg |
|
Insertion Head Number |
Four heads |
Six heads |
|
Feeder Capacity |
32 stations (Special-shaped Component); if 8mm SMT feeder, front side 60 stations, back side 60 stations |
32 stations (Special-shaped Component); if 8mm SMT feeder, front side 60 stations, back side 60 stations |
|
Feeder Type |
Radial Tape Feeder, Multi-tube Feeder, Loose Packed Bowl Feeder, Tray Feeder, 8mm SMT feeder (compatible with some popular brands) |
Radial Tape Feeder, Multi-tube Feeder, Loose Packed Bowl Feeder, Tray Feeder, 8mm SMT feeder (compatible with some popular brands) |
|
Programming Method |
Manual Teaching Programming, Vision Teaching Programming, EXCEL Data Input |
Manual Teaching Programming, Vision Teaching Programming, EXCEL Data Input |
|
Component Alignment |
>6.0 Mega-pixel Industrial CCD Vision Recognition |
>6.0 Mega-pixel Industrial CCD Vision Recognition |
|
Board Offset Correction |
PCB Mark is recognized by industrial CCD Vision |
PCB Mark is recognized by industrial CCD Vision |
|
PCB Conveyor Device |
3-step Belt Conveyor, Direction: L→R (std.), Automatic Width Adjustment; Conveyor Height: Input 910mm, Output 750 or 910mm selectable (±10mm) |
3-step Belt Conveyor, Direction: L→R (std.), Automatic Width Adjustment; Conveyor Height: Input 910mm, Output 750 or 910mm selectable (±10mm) |
|
Operation System |
Industrial computer controlled, Windows® operation system, LCD display |
Industrial computer controlled, Windows® operation system, LCD display |
|
Compressed Air Source |
0.4-0.7Mpa 150L/min (A.N.R) |
0.4-0.7Mpa 150L/min (A.N.R) |
|
Power Source |
AC380V + Transformer, Multiphase AC220V Balanced Output, 3.5KVA |
AC380V + Transformer, Multiphase AC220V Balanced Output, 3.5KVA |
|

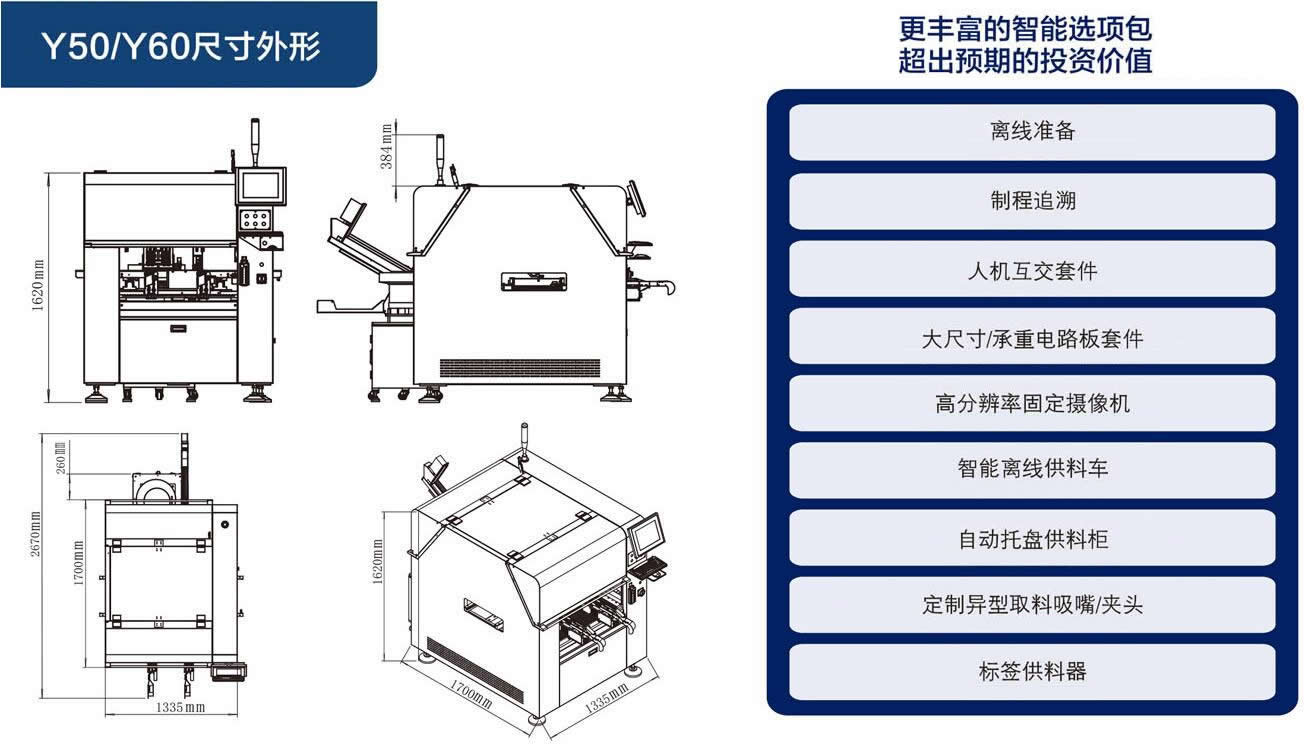

Dimension |
W1250x D1300xH1500mm (Exclude Signal Tower) |
W1250x D1300xH1500mm (Exclude Signal Tower) |
|
Weight |
Approx. 1500 Kg |
Approx. 1550 Kg |
|
Options |
Passive Lead Clinching Device; PCB Conveyor Electrical Width Adjustment |
Passive Lead Clinching Device; PCB Conveyor Electrical Width Adjustment |
Struggling with inflexible, low-efficiency special-shaped insertion machines? Most on the market handle only a few component sizes, complicating production and hindering line efficiency. The solution: Brunimind Y50/Y60 series from Zhonghexu, designed for stronger compatibility and higher productivity.
Integrating low-maintenance linear motors, high-resolution cameras and advanced optical sensors, the Brunimind Y50/Y60 solves industry pain points of speed vs. flexibility. Its compact design delivers exceptional efficiency, eliminating trade-offs between special-shaped insertion and overall line productivity.
With a modular structure, it adapts to growing process needs easily. It handles 1000+ components (5mm*5mm to 150mm*80mm, up to 400g), reducing manual work and boosting stability.
Choose Brunimind Y50/Y60 for a flexible, efficient production mode — and gain a market edge.
Struggling with inflexible, low-efficiency special-shaped insertion machines? Most on the market handle only a few component sizes, complicating production and hindering line efficiency. The solution: Brunimind Y50/Y60 series from Zhonghexu, designed for stronger compatibility and higher productivity.
Boasting high-precision intelligence, it has two high-precision identification cameras to quickly detect defective components, with independent signal control for each insertion head and nano-diamond coated rods for low-maintenance, high-efficiency operation.
Its compact modular design enables flexible installation, integrating with existing lines or new configurations. Lightweight moving parts and linear motor-driven X-axis ensure agility and precision even at 3G acceleration.
Highly compatible with 32+ feeder stations, optional offline preparation racks and diverse feeder types (coil, matrix tray, etc.), it achieves 0.32s/component insertion speed, handling 1000+ components (5mm*5mm to 150mm*80mm, up to 400g).
Choose Brunimind Y50/Y60 for a flexible, efficient production mode — and gain a market edge.
1. The dimension data of the machine does not include the extension parts such as signal indication tower.
2. Weight is only the main body weight.
3. Data such as plug-in speed vary according to conditions such as component distribution density.
4. For details, please refer to the specification.
