BRUNIMIND BM-DT300 Desktop Desoldering Rework System | Intelligent SMT Equipment
Intelligent Manufacturing · Efficient Rework
BRUNIMIND is a trusted provider of intelligent SMT equipment and automation solutions. The BM-DT300 desktop rework system integrates component removal, solder extraction, and reflow soldering in one compact machine. Featuring precise temperature control, intelligent visual positioning, and stable operation, it delivers a complete PCB/PCBA rework solution for 3C electronics, automotive electronics, semiconductor packaging, and other high-value manufacturing industries. By improving efficiency and production yield, BRUNIMIND supports enterprises in achieving intelligent production upgrades.
Product Overview

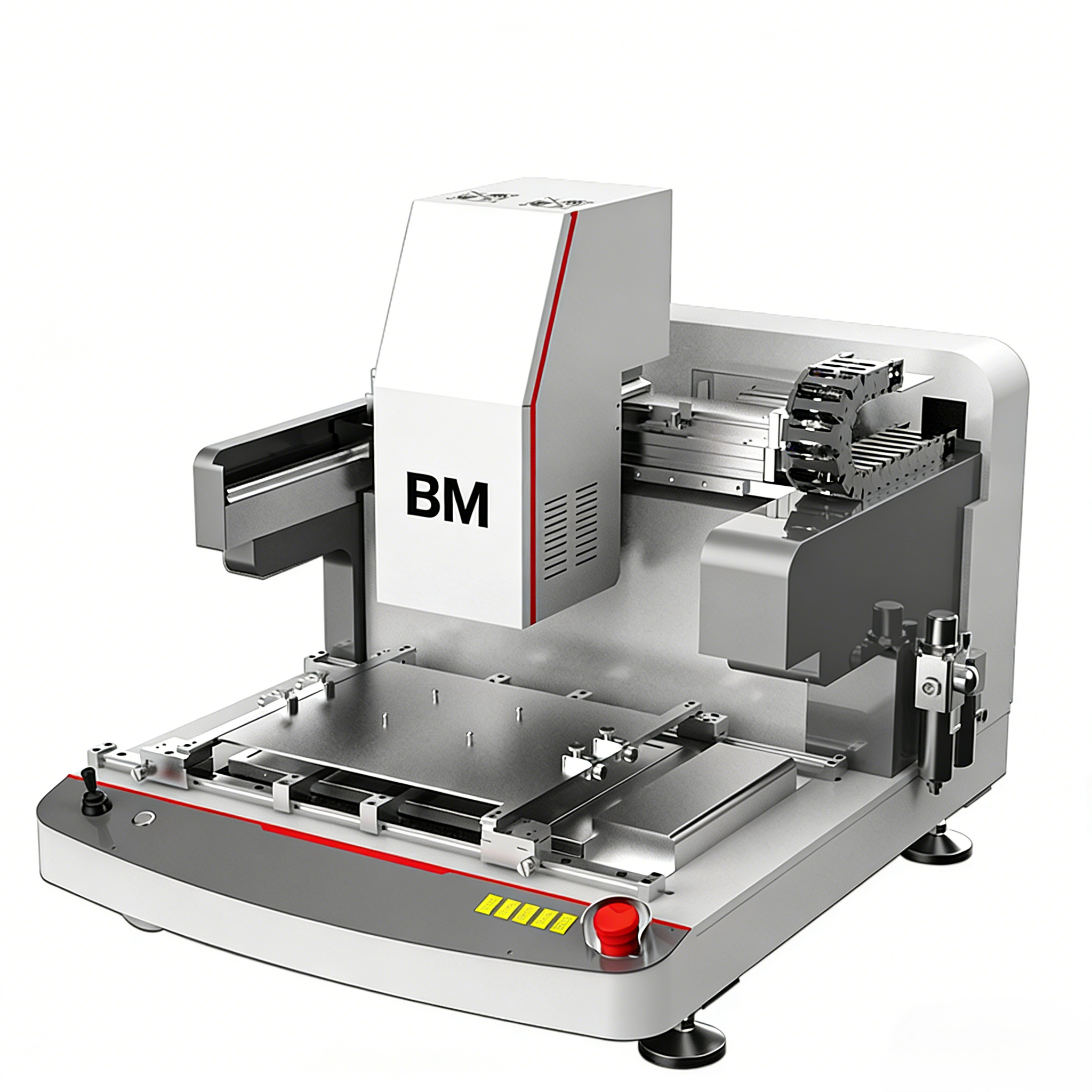

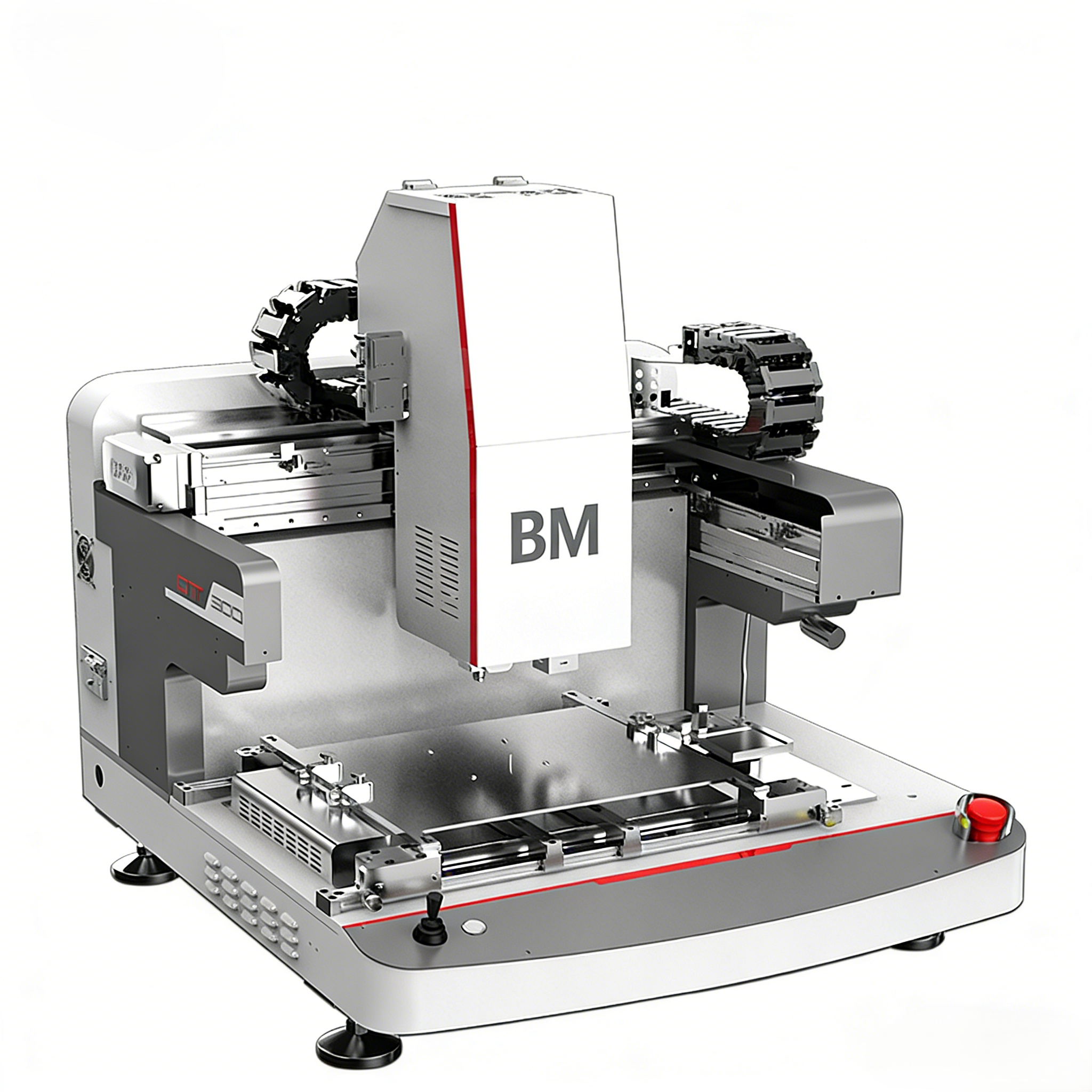

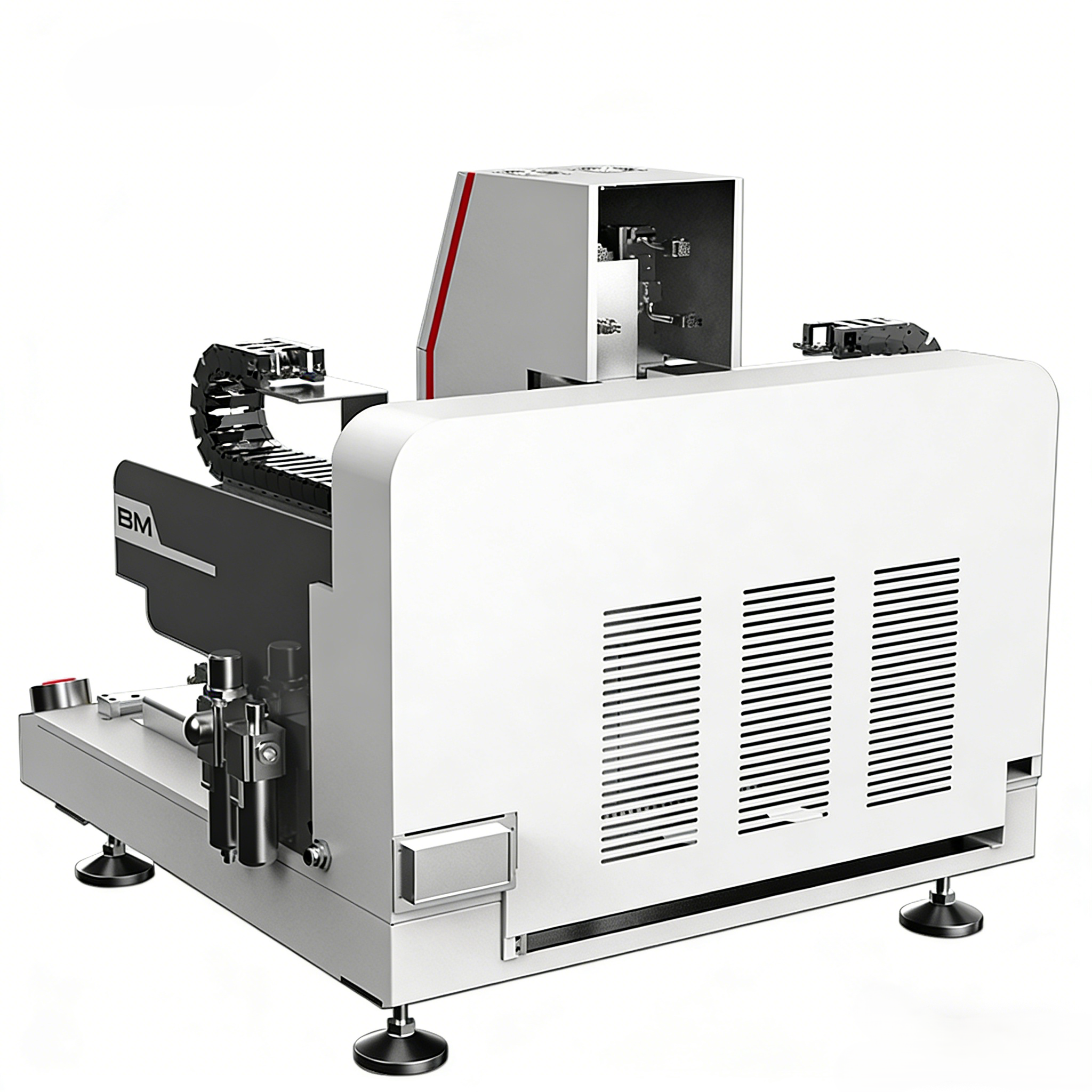

The BRUNIMIND BM-DT300 is a multi-functional desktop rework machine designed for modern electronics manufacturing. It overcomes the limitations of traditional single-function rework tools by supporting a full removal–desoldering–soldering workflow in a single unit. Equipped with an industrial PC and motion control system, the machine is compatible with a wide range of PCB sizes and electronic components. It supports fast CAD data import and programmable recipe storage, paired with dual upper-and-lower CCD visual positioning and non-contact vacuum desoldering technology. Combined with a closed-loop precision heating system, the system effectively resolves common issues such as component damage, positioning errors, and uneven heating during rework. It greatly improves rework efficiency while maintaining high yield rates, making it ideal for small-batch, high-mix electronics production.
Key Features
All-in-One Workflow, Wide Compatibility
Integrates component removal, solder removal, and re-soldering in one machine to complete full PCB/PCBA rework without changing equipment. Supports PCB sizes from 10×10mm up to 350×300mm and component pitches down to 0.2mm. Suitable for consumer electronics, industrial control, automotive electronics, and other applications, reducing overall equipment investment.
Intelligent Programming & Easy Operation
User-friendly human-machine interface with support for multi-group recipe storage and one-click recall, minimizing repeated setup time. Desoldering paths can be generated via direct CAD data import or CCD-assisted programming, enabling fast setup for new products. Easy for new operators to learn, supporting flexible and efficient production.
Precision Temperature Control, Minimal Thermal Damage
Three independent heating systems — infrared preheating, hot-air rework, and desoldering heating — all feature closed-loop temperature control for real-time monitoring and adjustment. Stable and uniform heating prevents PCB warping and component thermal damage, ensuring consistent rework quality.
Non-Contact Desoldering, Protects Workpieces
Equipped with a non-contact vacuum desoldering nozzle and real-time vacuum flow feedback. The system automatically adjusts nozzle height to maintain non-contact operation, avoiding scratches or damage to PCB pads and circuits. Solder removal is thorough and clean, maximizing workpiece integrity and yield.
Dual CCD Visual Positioning, High Placement Accuracy
Dual upper-and-lower CCD vision system ensures accurate component alignment and positioning. It supports high-precision placement and assists in path teaching for desoldering, reducing manual errors and improving process consistency even for fine-pitch components.
Core Advantages
-
Non-Contact Desoldering SystemReal-time vacuum flow monitoring and automatic height adjustment prevent physical damage to PCBs. Solder is removed cleanly with minimal residue.
-
Closed-Loop Temperature ControlInfrared and hot-air heating with full closed-loop control deliver stable temperature performance, preventing PCB deformation and component failure.
-
Fast Programming SystemCAD file import and CCD-assisted path setup reduce programming time. Multiple production recipes can be saved and reused for high-mix production.
-
Dual CCD Vision SystemHigh-precision visual positioning improves placement accuracy and supports reliable fine-pitch component rework.
-
Industrial Motion ControlIndustrial PC control ensures stable and precise movement, enabling semi-automated operation and reducing labor dependence.
Technical Specifications
| Item | Specification |
|---|---|
| Model | BM-DT300 |
| Dimensions | L852×W871×H795mm |
| Weight | 90KG |
| Power Supply | AC220V±10% 50/60Hz |
| Max PCB Size | 350×300mm |
| Min PCB Size | 10×10mm |
| Max Component Size | 60×60×30mm |
| Min Component Size | 10×10mm |
| Min Desoldering Pitch | 0.2mm |
| Control System | Industrial PC + Motion Control System |
| Heating System | Infrared Preheating + Hot-Air Rework + Desoldering Heating (Closed-Loop Control) |
| Desoldering Method | Non-Contact Vacuum Desoldering |
| Positioning System | Dual Upper & Lower CCD Vision System |
| Recipe Management | Multiple Programmable Recipes Storage & Recall |
| Data Import | CAD File Support for Desoldering Path Programming |
About BRUNIMIND
BRUNIMIND is a leading global provider of intelligent SMT equipment and manufacturing solutions. With years of deep experience in electronic manufacturing equipment, the company maintains a professional R&D team and a global service network. Its core engineering team brings over 10 years of industry expertise, ensuring high precision, stability, and performance in every product.
BRUNIMIND equipment serves well-known manufacturers in consumer electronics, automotive, and industrial sectors, and is exported to markets worldwide. Through continuous technological innovation and reliable customer service, BRUNIMIND empowers global partners with intelligent manufacturing solutions.
Service & Support
BRUNIMIND provides lifelong technical support for all equipment, including professional installation, commissioning, operator training, regular maintenance, and fast troubleshooting. A global service network ensures responsive on-site and remote assistance to minimize production downtime.
