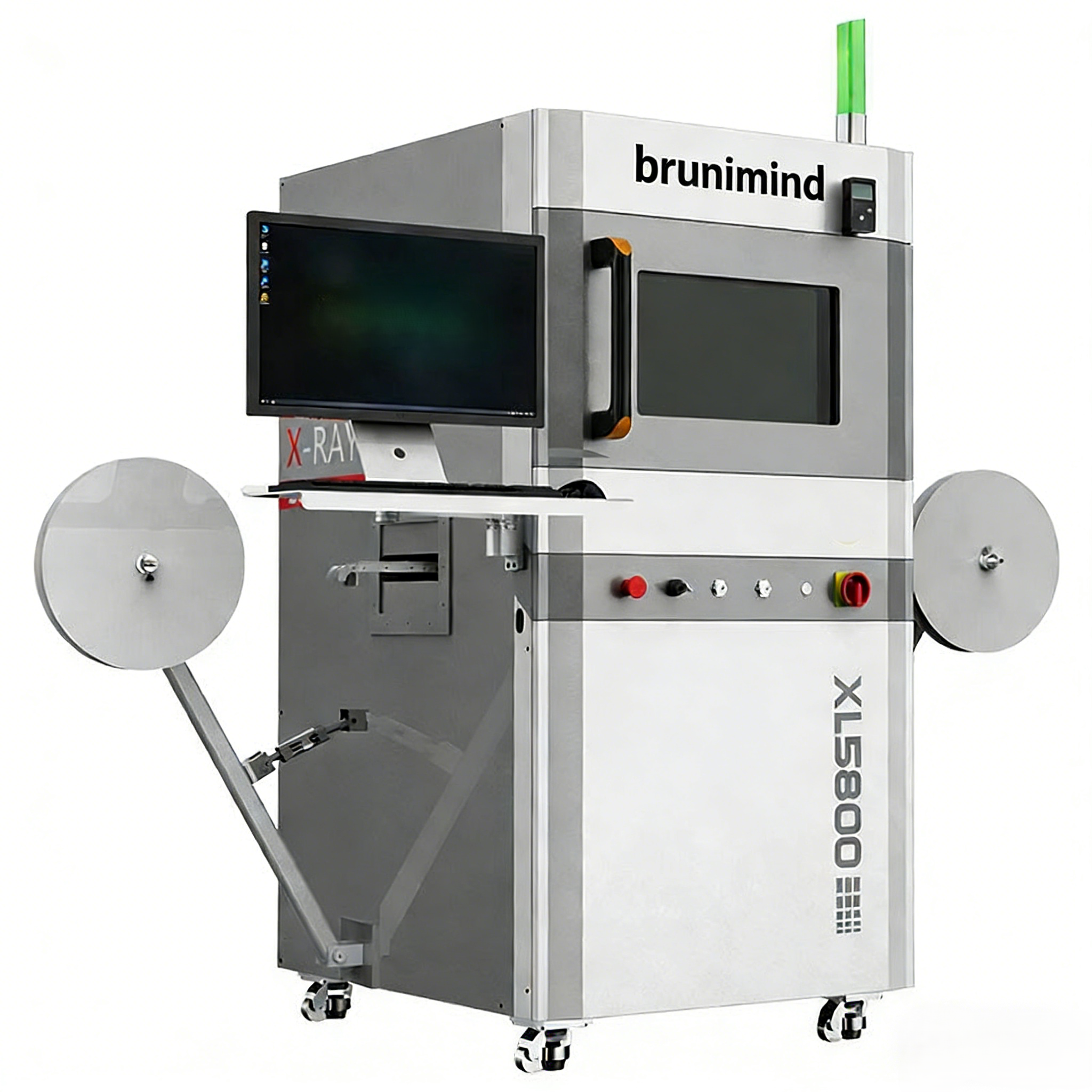

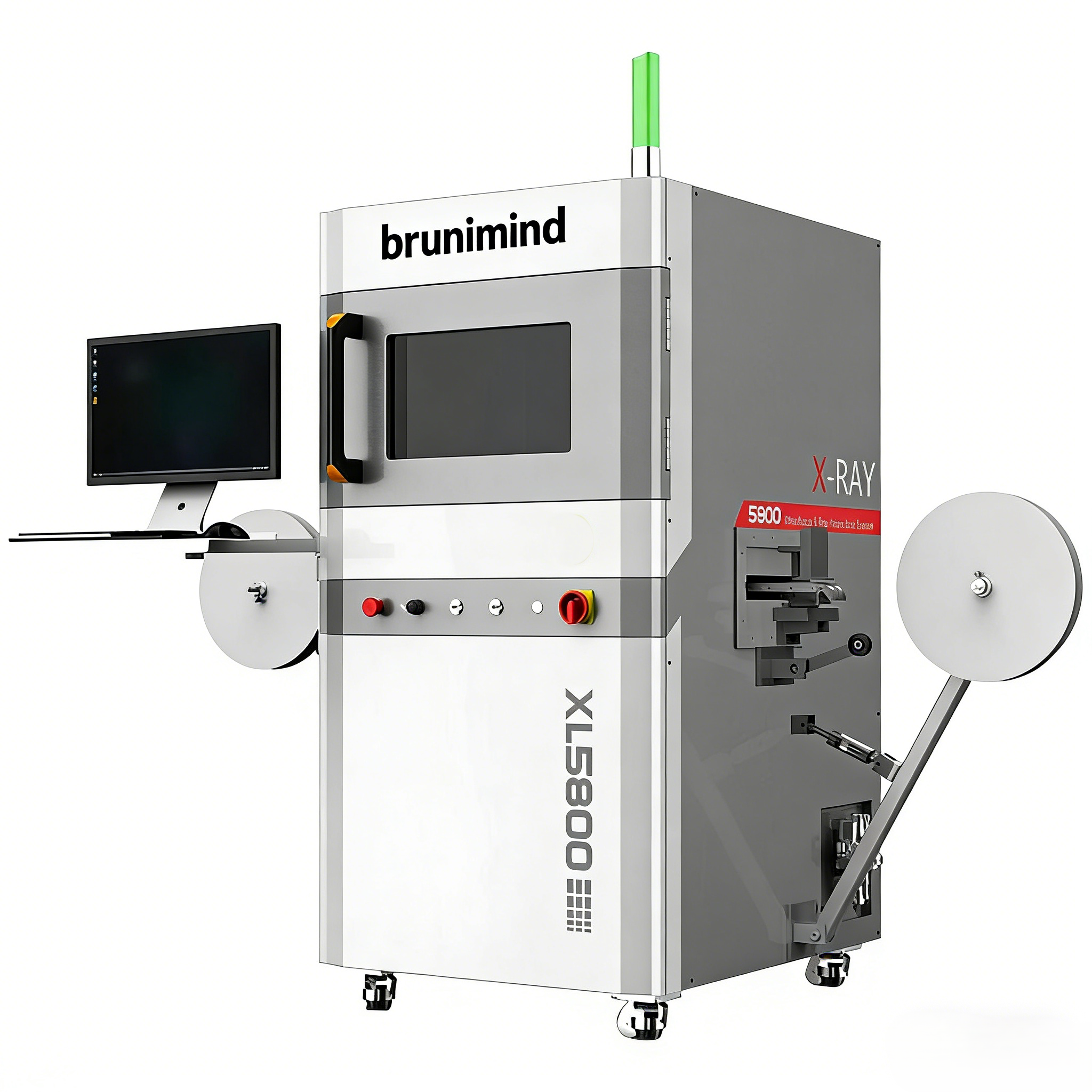

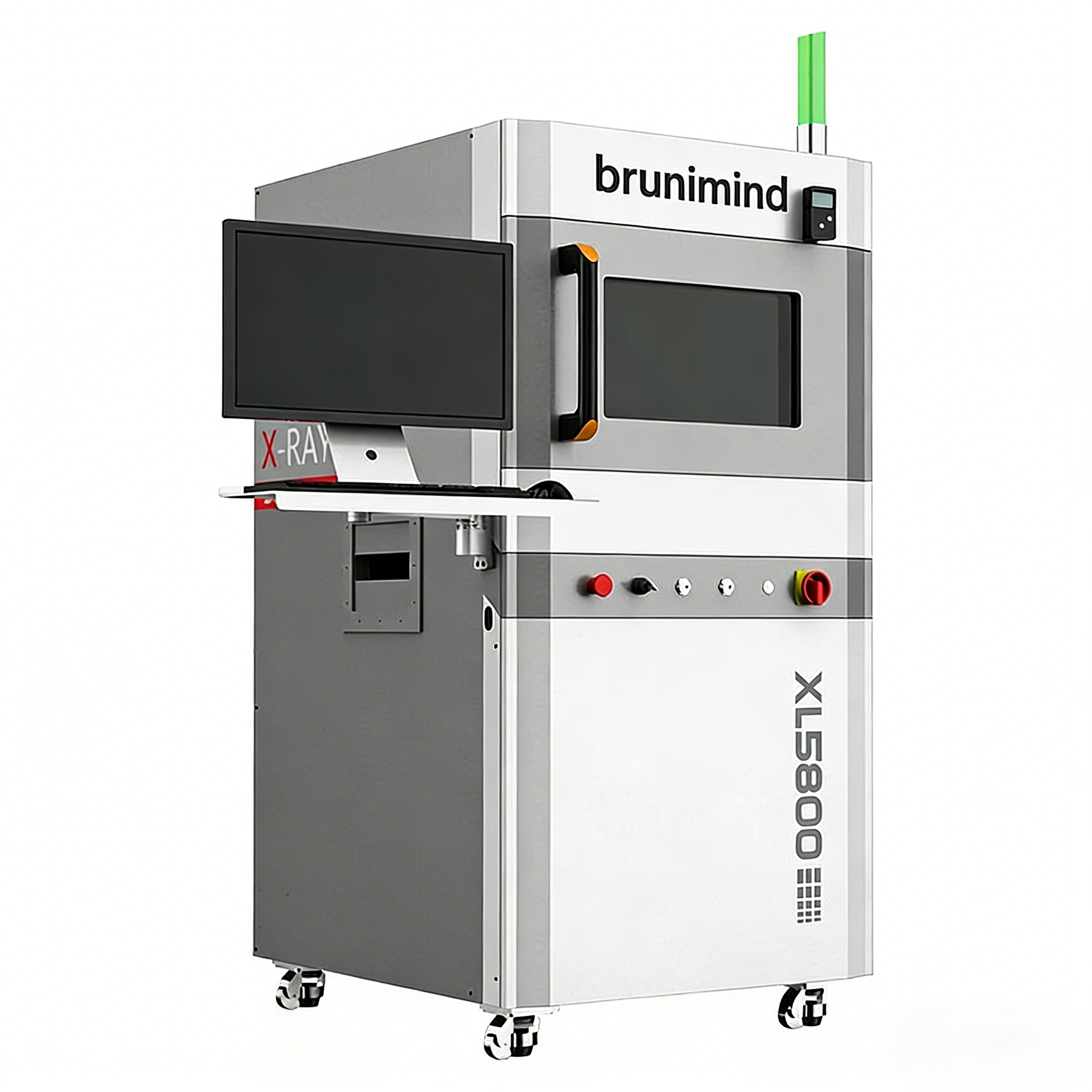

Brunimind XL5800 15μm Microfocus Online X-Ray Inspection Machine for SMT & Semiconductor
Brunimind XL5800, a professional device in the field of industrial intelligent X-ray inspection, features 15μm high-precision detection and is equipped with an online automated inspection system. It enables fully unmanned operation throughout the feeding, inspection and sorting processes, and can also perform punching cutting or marking on defective products. Perfectly adapted to the inspection scenarios of roll materials, reel materials and automatic production line feeding, it is widely used for product defect detection in various industries such as electronic semiconductors and automotive electronics, and supports customized development of inspection solutions according to customers' actual needs.
Core Product Applications
Brunimind XL5800 covers multiple fields including electronic manufacturing, automotive industry and new material processing, conducting precise detection of internal structures and process defects of various precision components and industrial products. Its core application scenarios are as follows:
- Electronic semiconductor field: Inspection of IC chips, triodes, IGBTs, sensors, BGA, capacitors, batteries and other components;
- SMT manufacturing field: Detection of welding and assembly defects of PCBA motherboards, connecting wires, electronic modules, etc.;
- LED industry: Full-process inspection of LED lamp beads, modules, circuit boards, etc.;
- Automotive and parts field: Inspection of automotive electronic components, aluminum die-casting parts, automotive precision parts;
- Other special industries: Internal structure and defect detection of molded plastics, ceramic products, hardware castings, photovoltaic products, etc.
Core Product Features
- Seamless production line connection & high automation: Equipped with a rail-type docking station, it can directly connect to the production line to realize automatic loading and unloading, supports fully automatic inspection of reel and roll materials, greatly improves production line inspection efficiency and reduces manual intervention;
- Intelligent defective product processing: Built-in automatic cutting or inkjet marking function, it immediately marks or punches defective products after detection, realizing rapid sorting of qualified and defective products and avoiding material mixing;
- High-precision microfocus detection: Equipped with a professional microfocus X-ray source with a 15μm microfocus size and a detection accuracy of 15μm, which can clearly identify tiny internal defects of precision components;
- Multifunctional imaging inspection: Supports tilt detection and real-time navigation imaging, presenting the internal structure of inspected samples from multiple perspectives and in an all-round way, leaving no defects hidden;
- Safe and intelligent management and control: Equipped with a fingerprint unlock function to strictly control equipment operation authority; the real-time radiation monitoring system monitors the equipment's radiation value throughout the process and automatically alarms when the threshold is exceeded;
- Customized services: Customized inspection solutions can be designed according to customers' product specifications, inspection requirements and production line layout to adapt to the personalized inspection needs of different industries.
Detailed Technical Parameters
Basic Specifications
| Parameter Item | Technical Index |
|---|---|
| Model | XL5800 |
| Input Power | 220V 10A/110V 15A 50-60Hz |
| Overall Dimension | L1850mm×W1400mm×H1970mm |
| Sample Width Range | 30-150mm |
| Net Weight | Approx. 1020KG |
| Control System | Industrial Computer WIN7 (WIN10 Optional) 64-bit |
X-ray Core Configuration
| Parameter Item | Technical Index |
|---|---|
| X-ray Tube Type | Reflective Sealed Microfocus X-ray Source |
| Tube Voltage Range | 40-90KV |
| Maximum Output Power | 8W |
| Microfocus Size | 15μm |
| Detection Accuracy | 15μm |
Multiple Safety Guarantees
Brunimind always puts the safety of equipment operation in the first place. The XL5800 adopts a multi-layer radiation protection design to provide all-round safety guarantees for operators:
- Radiation-proof structural design: All six sides of the equipment adopt a three-layer structure of Steel + Lead + Steel, which effectively isolates X-ray radiation and reduces the risk of radiation leakage from the source;
- Real-time radiation monitoring: Equipped with a professional radiation meter, it monitors the radiation value around the equipment 24 hours a day. When the radiation value exceeds the preset safety threshold, the equipment automatically triggers an alarm to remind operators in a timely manner;
- Operation authority control: Equipped with a fingerprint unlock function, only authorized personnel can operate the equipment, avoiding potential safety hazards caused by misoperation by non-professionals. Customer Case
The XL5800 X-ray inspection machine is primarily applied in the detection of electronic semiconductors, SMT components, LEDs, batteries, ICs, BGAs, IGBTs, and other related devices.It is also suitable for inspection in special industries such as automotive parts, hardware castings, photovoltaic products, plastic parts, and ceramic products.
Brand Services
Brunimind is deeply engaged in the R&D and manufacturing of industrial X-ray inspection equipment, with a professional technical R&D team and a complete after-sales service system. We provide customers with one-stop services including equipment customization, installation and commissioning, operation training, and after-sales maintenance. The national professional technical team responds 24/7 to solve various problems in the process of customer equipment use in a timely manner and ensure the stable operation of production line inspection equipment.
