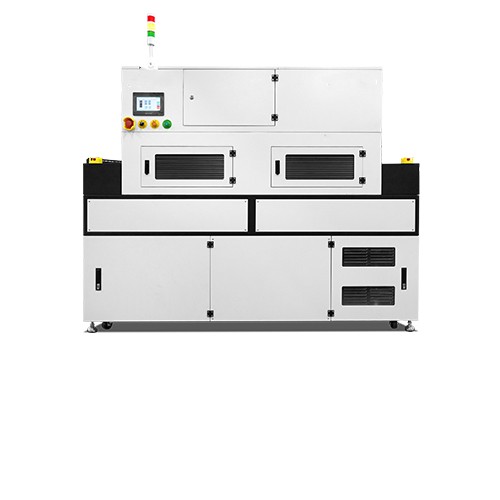

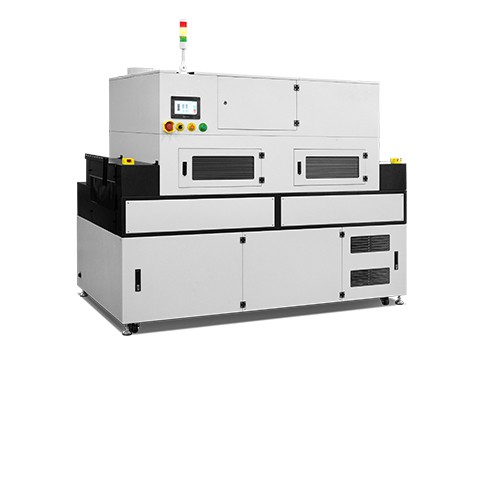

BRUNIMIND BM-400 Electrodeless Lamp UV Curing Machine

Product Overview

BRUNIMIND BM-400 Electrodeless Lamp UV Curing Machine is an innovative eco-friendly radiation curing solution designed to solve the pain points of traditional UV curing equipment: poor penetration, unstable curing and high working temperature. With advanced electrodeless lamp technology, it features fast curing speed, stable UV output, ultra-low power consumption and minimal thermal radiation, realizing cold light source curing that effectively protects heat‑sensitive components.

As a low‑VOC environmental protection device, it provides professional curing and drying for adhesives, inks, coatings, conformal coatings and conformal glues in various high‑tech industries. It is fully compatible with various production lines, supports intelligent MES system connection and high‑efficiency automated production, making it the ideal choice for electronic manufacturing, printing and precision component processing.

Core Technical Advantages

Fast Curing & High Efficiency

  • Equipped with 2 sets of F300S electrodeless lamp systems, full‑band UV output from 280nm to 420nm, suitable for various adhesives and inks.
  • Light intensity adjustable from 50~600mW/cm, energy range 300~6000mJ/cm² for instant and stable curing.
  • Patented rail transmission with automatic lubrication system prevents board jamming and meets CT<24S production standards.
  • Conveyor speed: 0.5~5m/min infinitely adjustable; track width: 50~500mm automatic adjustment.

Stable Output & Excellent Curing Quality

  • High‑performance electrodeless UV lamps with high‑uniformity reflective lampshade eliminate uneven irradiation.
  • Greatly improved UV penetration for deep and thorough curing of complex components and thick coatings.
  • Coated quartz glass filters unnecessary wavebands to ensure stable and consistent curing quality.

Low Power Consumption & Cost Saving

  • Saves more than 60% electricity compared with traditional UV light sources under the same capacity.
  • Electrodeless lamp service life exceeds 6000 hours, reducing maintenance and replacement costs.
  • Start power: 15KW; normal working power: only 7KW.

Low-Temperature Curing & Sensitive Component Protection

  • Innovative heat dissipation structure + air‑cooled forced exhaust system for rapid cooling.
  • Realizes cold light curing, safe for semiconductors, displays, optical parts and other heat‑sensitive materials.
  • Variable frequency exhaust fan with large air volume ensures stable internal temperature.

Technical Specifications

System Item HUVW-F300S-D2Z1 Specification
UV System UV Lamp Electrodeless lamp, 450mm irradiation area
  Lampshade High uniformity reflective lampshade
  Energy Range 300~6000mJ/cm², stepless adjustable
  Power Control 0~100% stepless adjustable
  Wavelength 280nm~420nm full band
Conveying Transport Single chain rail with automatic lubrication
  Track Width 50~500mm automatic adjustment
  Conveyor Speed 0.5~5m/min stepless adjustable
Temperature Control Cooling Air-cooled forced exhaust, variable frequency fan
  Exhaust Volume 43CMM
Control System Main Control PLC + touch screen
  Intelligence Supports MES system docking
  Alarm Sound & light dual alarm
Equipment Dimensions 2200mm × 1200mm × 1800mm
  Power Supply 3‑phase 5‑wire 380V 50/60Hz
  Power Start:15KW; Working:7KW

Key Applications

BRUNIMIND BM-400 is widely used for UV curing of adhesives, inks, coatings and conformal materials in:

  • 3C Electronics: mobile phones, computers, consumer electronics
  • Automotive Electronics: automotive PCBs, vehicle components
  • Display & Optics: LCD, LED, optical parts
  • Semiconductor & Power: power modules, chips
  • Printing Industry: packaging, industrial printing
  • Precision Manufacturing: medical devices, aerospace components

Enterprise Strength & Service

  • National high‑tech enterprise with over 100 patents.
  • Certified with SGS, ISO9001, CE.
  • R&D team with 10+ years of industry experience.
  • Widely used by world‑famous manufacturers such as Foxconn, BYD, Xiaomi, OPPO, BOE, ZTE.
  • Full life cycle service: on‑site installation, commissioning, training, maintenance and spare parts support.
