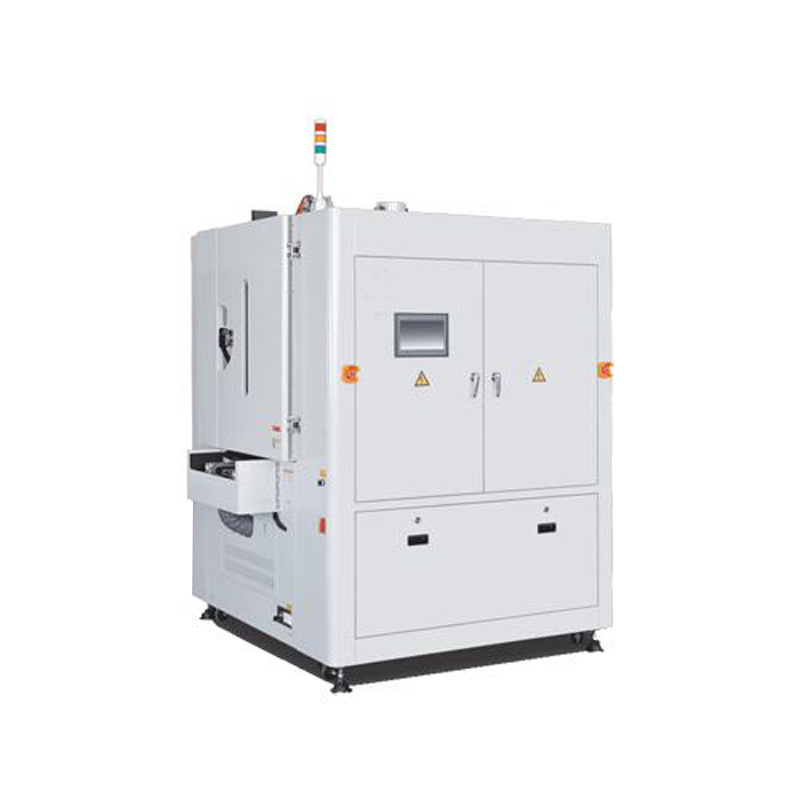

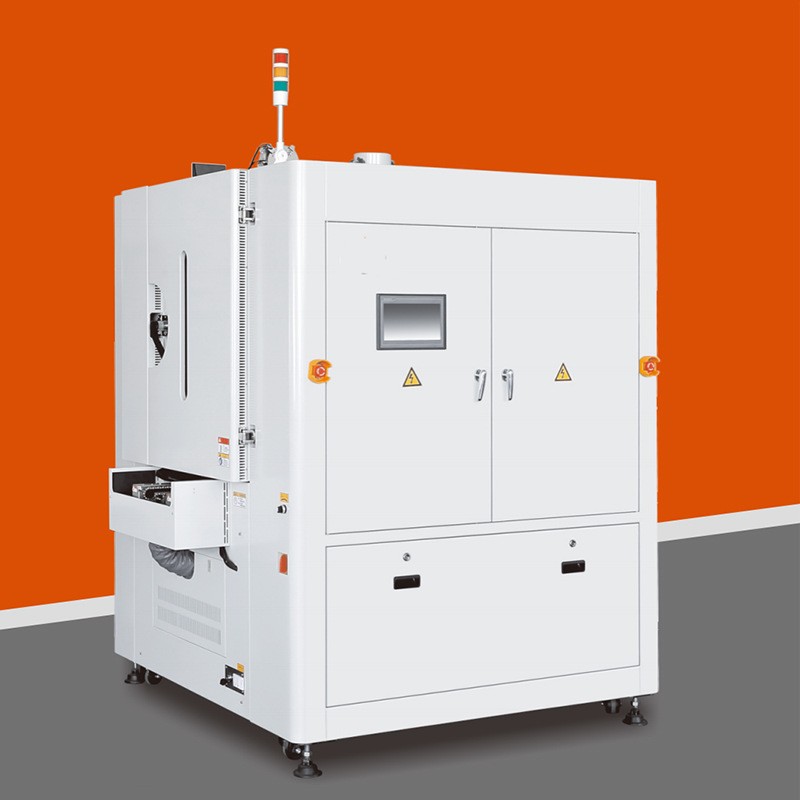

BRUNIMIND UV Curing Ovens for Coating Line

Product Overview

BRUNIMIND UV Curing Oven is a cutting-edge, precision-engineered curing solution designed exclusively for PCB manufacturing Technical Specifications



Parameter Category Specifications
UV System Core Heraeus-Fusion F-300S series (customizable on request)
Model ExplorCuring-XXX (matching your specific bulb/coating requirements)
Overall Dimensions (L×W×H) 1500mm × 1100mm × 1662mm
Process Tunnel 1500mm length; 100mm top clearance, 100mm bottom chain clearance
Compatible PCB Size Min: 30mm (W) × 120mm (L) (smaller products via carrier); Max: 460mm (W) × 500mm (L)

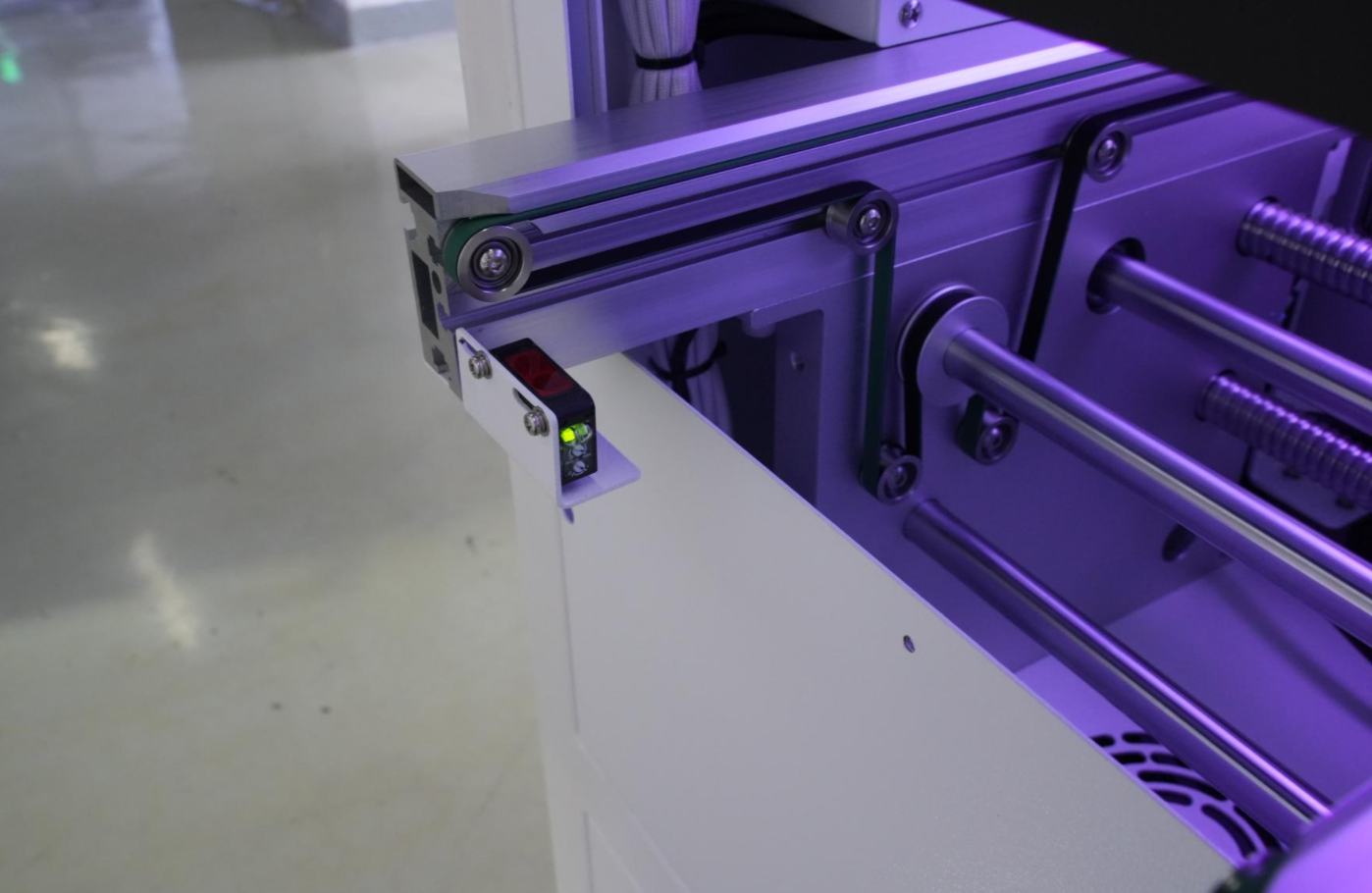

Conveyor System Pin chain conveyor (5mm pins); motorized width adjustment (software auto-adjust optional)
Transport Speed 0-5m/min (stepless adjustable)
Controller Microprocessor PLC controller (speed, shutters, UV on/off; auto jam detection)
User Interface Integrated touch screen on oven
Production Line Docking SMEMA interface
Safety Certification Fully CE certified; entrance/exit UV shutters
Power Range 3.6kW - 18.6kW (depends on number of UV lamps; 1 to max 6 bulbs)
Air Supply Min 3.5 bar pressure; 5L/min air consumption

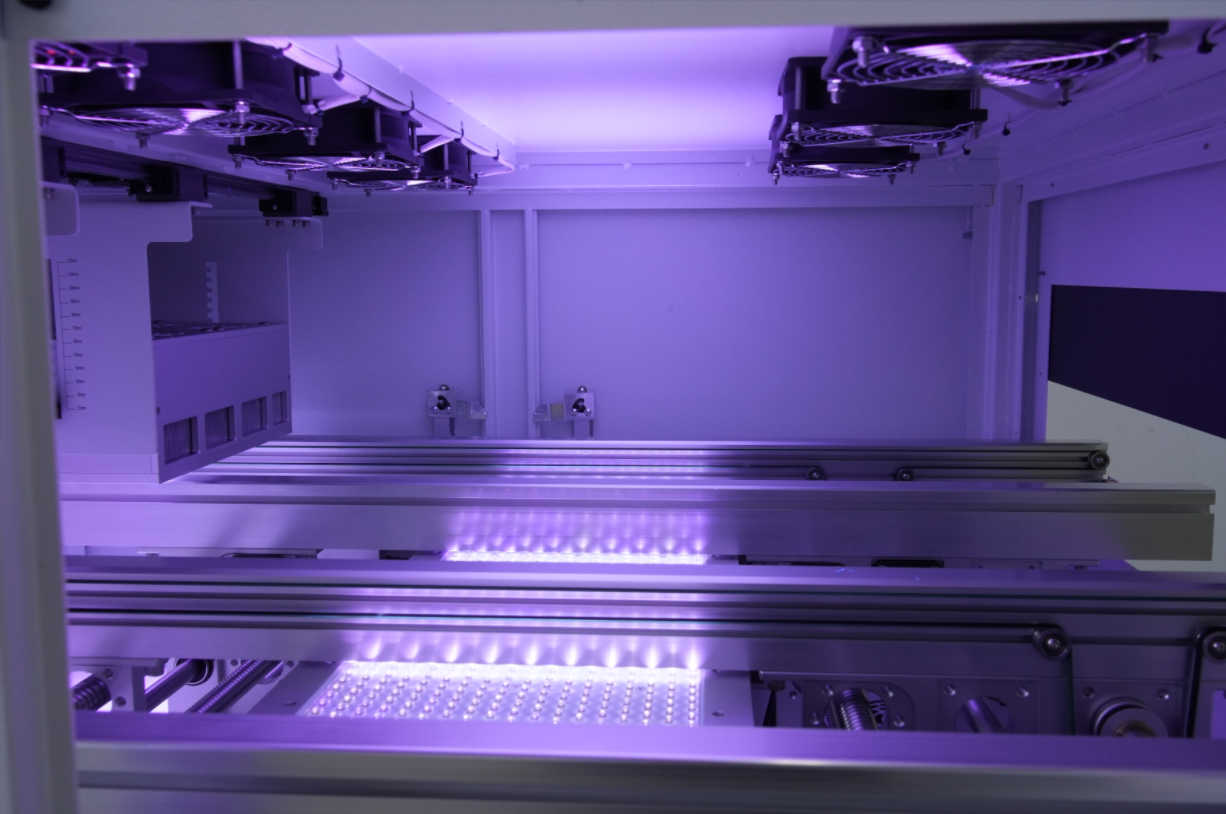

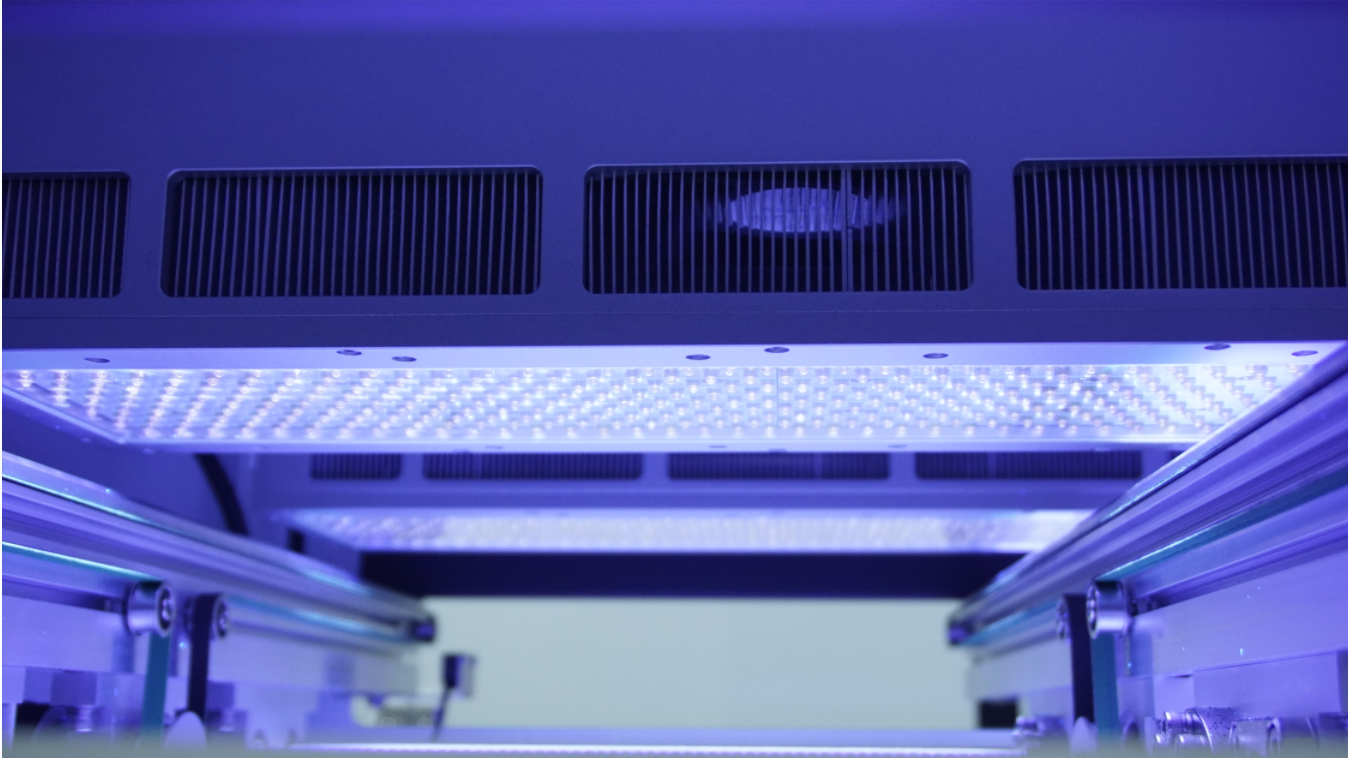

Light Emitters Standard: top lights; bottom emitters (optional custom mounting)
Cooling & Exhaust External extraction/cooling required; external exhaust system
Weight 300kg (1 lamp); +35kg per additional UV lamp
Guaranteed UV Lamp Life Minimum 8000 hours stable output

Main Applications

BRUNIMIND UV Curing Ovens are engineered for precision UV curing in electronics and PCB manufacturing, with core applications including:

  1. PCB Solder Mask Curing：Fast, uniform curing of PCB green oil, solder mask and protective coatings
  2. Electronic Adhesives Curing：Curing of UV-curable adhesives for component bonding, wire fixing and encapsulation
  3. PCB Coating Curing：Conformal coating curing for PCB moisture, dust and corrosion protection
  4. Electronic Component Coating：UV curing of protective coatings for sensors, connectors and small electronic components
  5. Automotive Electronics Curing：Curing of coatings/adhesives for automotive PCB and electronic components (high-reliability requirements)
  6. SMT Production Line Integration：Seamless UV curing process for SMT assembly line coating and bonding steps
  7. Batch & Continuous Production：Suitable for both continuous high-volume coating line curing and small-batch customized PCB production

Why Choose BRUNIMIND UV Curing Ovens?

BRUNIMIND UV Curing Ovens redefine industrial UV curing for PCB and electronics manufacturing by combining Heraeus Fusion’s industry-leading UV technology with our precision engineering and customer-centric design—addressing the core pain points of traditional UV curing equipment (uneven curing, high maintenance, heat damage, inflexible parameters).

Our ovens deliver 8000+ hours of stable UV output with the Heraeus electrodeless lamp system, eliminating frequent bulb replacements and production downtime, while the high peak irradiance/low infrared design ensures fast curing without damaging heat-sensitive electronic components. The fully adjustable conveyor and customizable curing parameters make it compatible with all PCB sizes and coating materials, and the SMEMA interface enables seamless integration into your existing SMT/PCB production line—no costly line reconfiguration required.

Fully CE-certified with comprehensive safety features (UV shutters, auto jam detection/shutdown), our ovens guarantee operator safety and compliance with international manufacturing standards. The compact, durable build saves valuable factory floor space, and the intuitive touch screen interface minimizes operator training time and human error.

Backed by our professional technical support and Heraeus’ global UV technology service network, BRUNIMIND UV Curing Ovens are a cost-effective, long-term investment for electronics manufacturers—boosting production efficiency, improving product quality and reducing overall operational costs.
