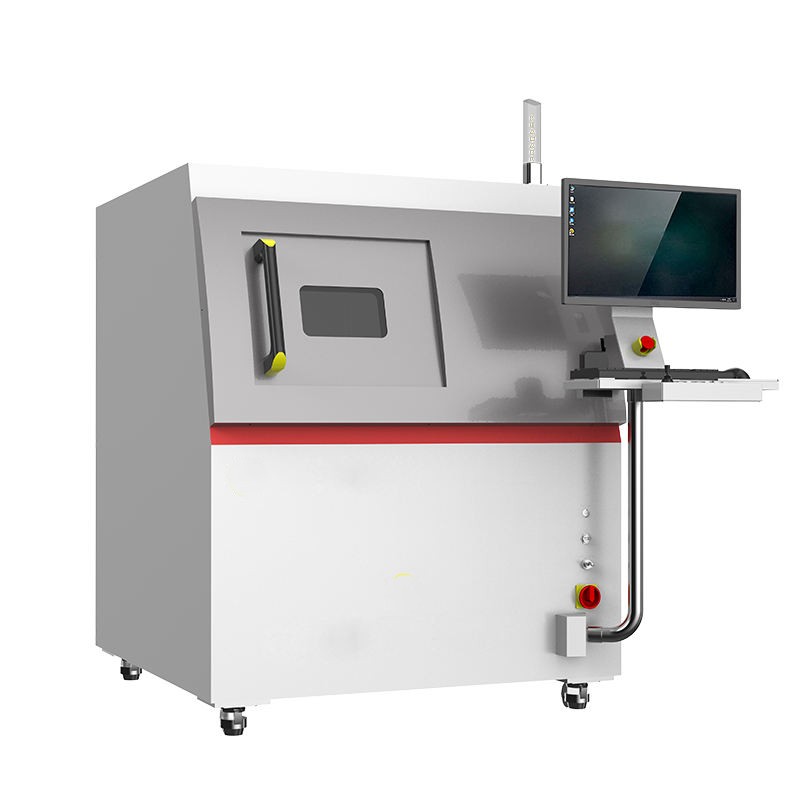

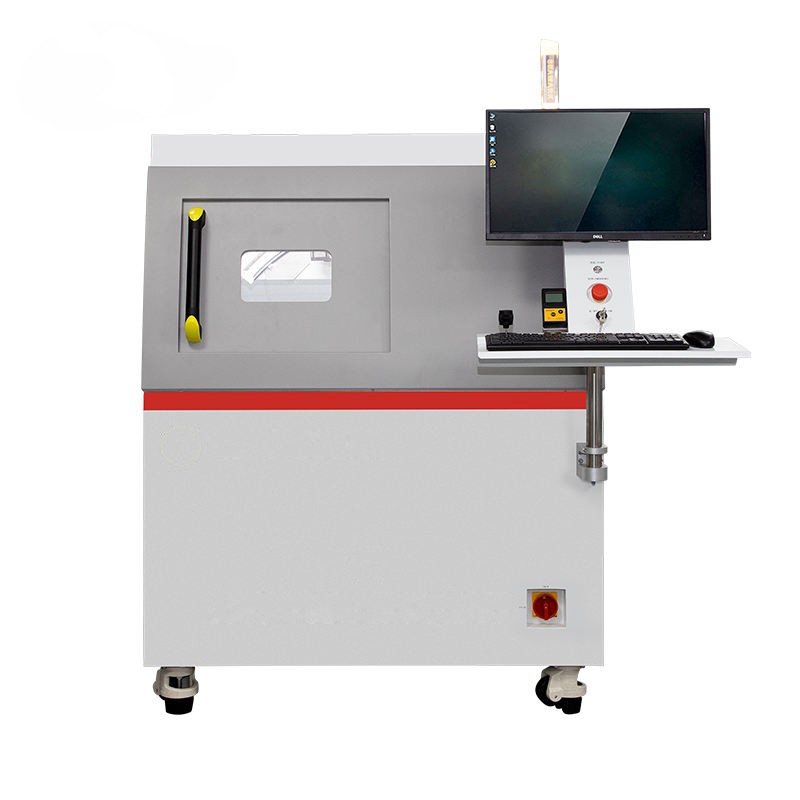

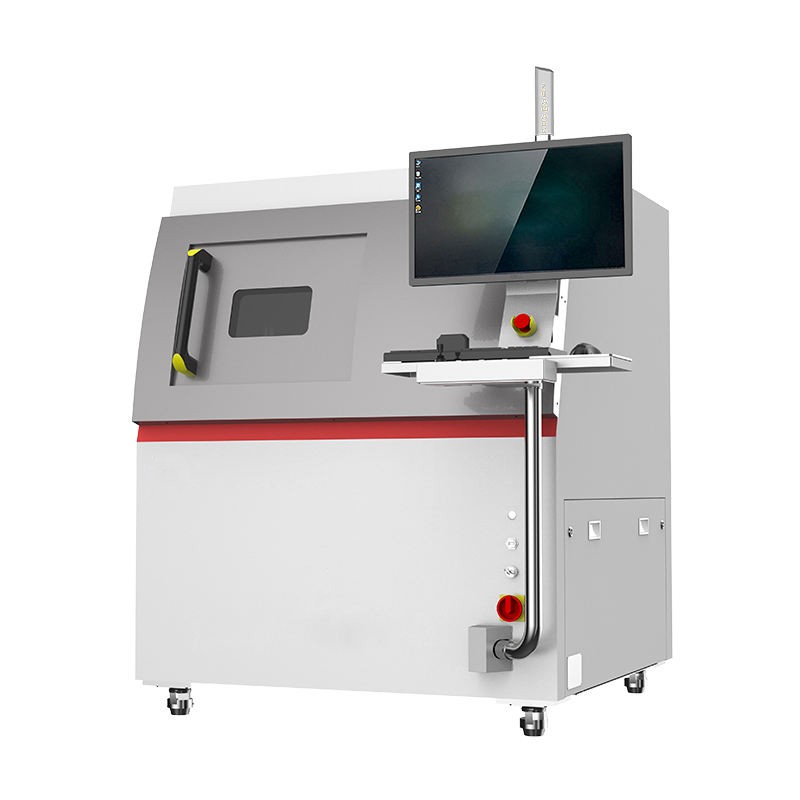

BRUNIMIND Xmark 6600 Offline X-ray Inspection Machine
Product Overview
BRUNIMIND Xmark 6600 is a high-precision offline microfocus X-ray inspection system designed for professional quality control of PCBs, SMT assemblies and electronic components, holding a perfect 5.0/5 customer rating for its superior performance and reliability. Engineered with core technologies including 7-axis linkage, 360° stage rotation and Z-axis movable X-ray tube & detector, it delivers ultra-precise non-destructive testing for micro defects as small as 2.5μm.
Featuring a unique max 65° inclined viewing angle for unconventional perspective sample observation, a lifetime maintenance-free long-life X-ray tube, and a high-definition digital flat panel detector, this system excels in automatic BGA soldering inspection and CNC precision measurement. With customizable detection programming, real-time defect analysis and comprehensive radiation safety protection, it is the ideal offline X-ray inspection solution for electronics manufacturers in aerospace, automotive, medical device and consumer electronics industries, enabling enhanced product quality and reduced production errors.
Core Key Features
- 7-Axis Linkage & 3D Motion Flexibility：X-ray tube/detector Z-axis movement, adjustable X-Y table speed, 360° stage rotation for all-angle inspection
- Ultra-High Precision Detection：Detects defects as small as 2.5μm, 3μm repeated test accuracy for micro component and solder joint inspection
- Unique Inclined Viewing Angle：Max 65° inclined angle for unique perspective sample observation, perfect for hidden BGA/QFN solder joint testing
- Lifetime Maintenance-Free X-ray Tube：Sealed microfocus X-ray tube with convection cooling, zero maintenance for the entire service life

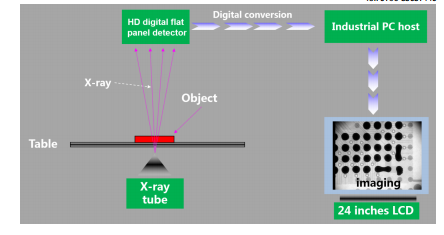

- High-Resolution Imaging：15361536 HD FPD detector, 130mm130mm imaging area for clear, detailed defect visualization
- Powerful CNC Measuring Function：Customizable detection routes/sequences, categorized parameter storage, auto testing & photo saving
- Dual Energy X-ray Detection：Identifies material density differences and hidden defects with high sensitivity for multi-layer PCBs
- User-Friendly Operation：Mouse + keyboard dual operating modes, 24-inch widescreen industrial display, intuitive software for minimal training
- Comprehensive Radiation Safety：Steel-lead-steel protection structure, radiation ≤1μSV/H @20mm, multiple safety interlocks & auto protection
- Large Inspection Capacity：540mm*440mm standard table, 500mm×410mm effective inspection area, ≤5Kg load capacity for various PCB sizes
Technical Specifications
表格
| Parameter Category | Details | Specifications |
|---|---|---|
| X-Ray Tube | Tube Type | Sealed microfocus X-ray tube |
| Tube Voltage | 40-90kV | |
| Tube Current | 10-200μA | |
| Focal Spot Size | 5-15μm | |
| Cooling Method | Convection cooling | |
| Service Life | Lifetime maintenance-free | |
| Detector | Type | HD digital flat panel detector (FPD) |
| Imaging Area | 130mm*130mm | |
| Pixel Matrix | 1536*1536 pixels | |
| Max Inclined Angle | 65° (0-60° adjustable) | |
| Inspection Performance | Min Detectable Defect | ≤2.5μm |
| Repeated Test Accuracy | 3μm | |
| Software Inspection Speed | 3.0s/point (excluding loading/unloading) | |
| Worktable | Standard Size | 540mm*440mm |
| Effective Inspection Area | 500mm×410mm | |
| Load Capacity | ≤5Kg | |
| X-Y Movement | Speed-adjustable | |
| Programming & Operation | CNC Programming | Categorized parameter storage, customizable detection routes/sequences, auto photo saving |
| Operating Modes | Mouse + keyboard (2 modes) | |
| Industrial Display & PC | 24-inch widescreen LCD, I3 CPU, 2G memory, 200G hard disk | |
| Mechanical & Structural | Radiation Shielding | 5mm thick inner lead plate, steel-lead-steel protection structure |
| Overall Dimensions (L×W×H) | 1360mm1240mm1700mm | |
| Net Weight | 1250Kg | |
| Power Supply | Input Voltage | AC220V 10A |
| Total Power | 1700W (1.7KW) | |
| Environmental Requirements | Operating Temperature | 22±3℃ |
| Operating Humidity | 50%RH±10%RH | |
| Safety Features | Radiation Emission | ≤1μSV/H at any position 20mm from shell (complies with international standards) |
| Safety Interlock | 2 high-sensitivity limit switches (door open → X-ray tube immediate power off) | |
| Electromagnetic Switch | Observation window locked during X-ray operation | |
| Observation Window | Real-time sample viewing during machine operation | |
| Emergency Stop | Prominent positions on console + machine body, one-touch power cut | |
| X-Ray Tube Protection | Auto power off after 5 mins of inactivity | |
| Machine Protection | Immediate shutdown if any door/window is opened, all operations disabled |
Main Applications

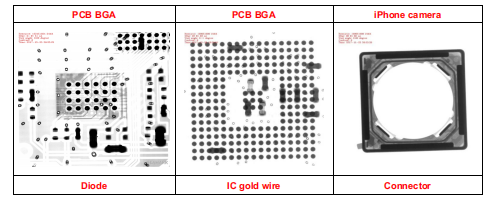

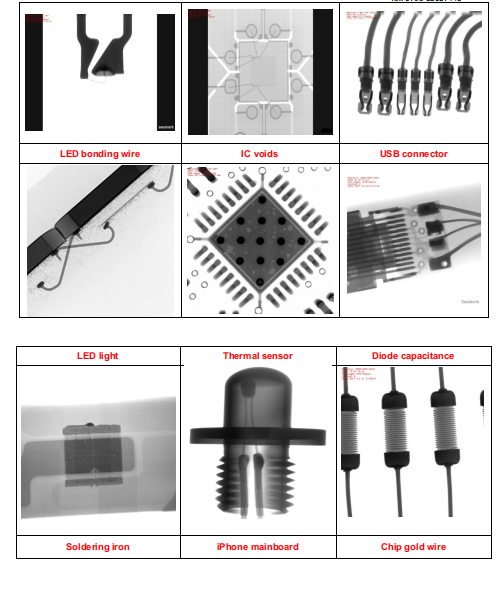

- SMT & PCB Assembly Quality Control：Offline inspection of BGA, QFN, QFP solder joints, component misalignment and solder voids
- Micro Electronic Component Testing：Non-destructive detection of internal defects in high-precision electronic components (≤2.5μm)
- Multilayer PCB Inspection：Analysis of hidden internal structures and defects in complex multi-layer printed circuit boards
- Aerospace Electronics Testing：High-precision X-ray inspection for aerospace-grade electronic assemblies with strict quality requirements
- Automotive & Medical Device Electronics：Reliability testing of electronic components for automotive and medical device manufacturing
- CNC Precision Measurement：Automated dimensional measurement and defect mapping of electronic components and assemblies
- Electronics R&D & Failure Analysis：Root cause analysis of electronic product failures and prototype quality verification
Why Choose BRUNIMIND Xmark 6600?
BRUNIMIND Xmark 6600 sets a new standard for offline high-precision X-ray inspection in the electronics manufacturing industry, combining unrivaled detection accuracy, mechanical flexibility and operational reliability to solve the core pain points of traditional offline inspection equipment.
Its ability to detect 2.5μm micro defects and 3μm repeated test accuracy ensures zero missed detection of critical micro defects in high-end electronic assemblies, while the 7-axis linkage and 65° inclined angle provide unparalleled flexibility for inspecting hard-to-reach hidden solder joints like BGA and QFN. The lifetime maintenance-free X-ray tube eliminates long-term maintenance costs and downtime, and the powerful CNC measuring function automates the entire inspection process, reducing human intervention and errors.
Built with international radiation safety standards and a multi-layer steel-lead-steel protection structure, it guarantees 100% operator safety with radiation emission far below international limits. The compact design (1360mm1240mm1700mm) saves factory floor space, and the user-friendly software and dual operating modes minimize operator training time.
For manufacturers pursuing the highest quality standards in aerospace, automotive, medical and consumer electronics, BRUNIMIND Xmark 6600 is a cost-effective investment that enhances product quality, reduces rework costs and ensures compliance with stringent industry regulations—backed by reliable performance and professional technical support.
