BRUNIMIND Xmark 7 X-ray Inspection Machine - High Precision PCB SMT Inspection
BRUNIMIND Xmark 7 X-ray Inspection Machine
HProduct Overview

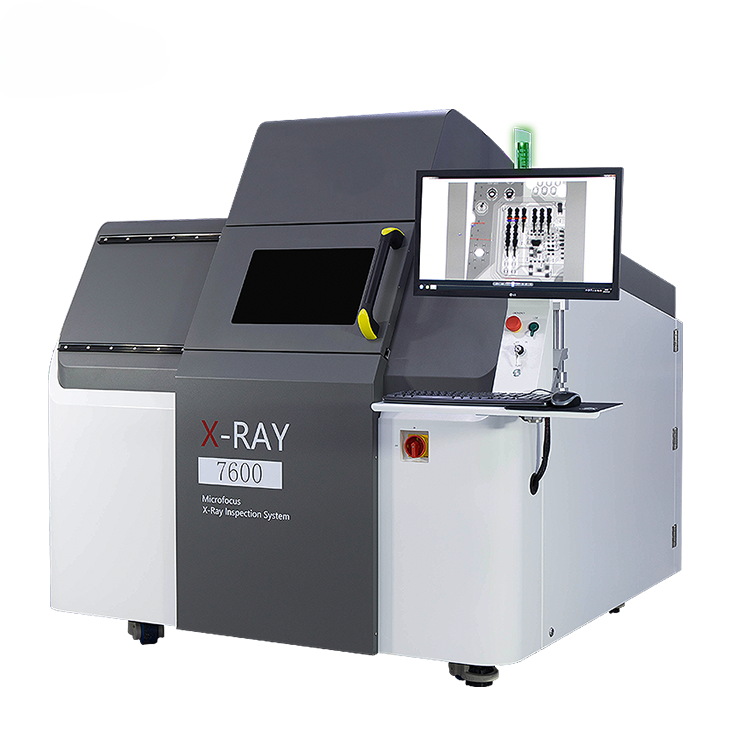

BRUNIMIND Xmark 7 is a high-end offline X-ray inspection system engineered for high-precision quality control in SMT production lines and PCB assembly processes. Rated 5.0/5 by customers, it integrates superior X-ray imaging quality with intelligent automated detection capabilities, delivering unmatched inspection accuracy and production throughput for electronic manufacturing.
Equipped with core technologies like 360° rotating stage, 7-axis linkage, 1500x system magnification and dual energy X-ray detection, it excels in automatic BGA soldering inspection—one of the most critical quality check points in PCB assembly. The system supports software-adjustable X-ray voltage and current, features powerful CNC detection and professional software analysis functions (upgradeable to CT), and is built with visual image navigation for intuitive operation. It is the ideal non-destructive testing solution for high-precision electronic component and PCB assembly inspection.
Core Key Features

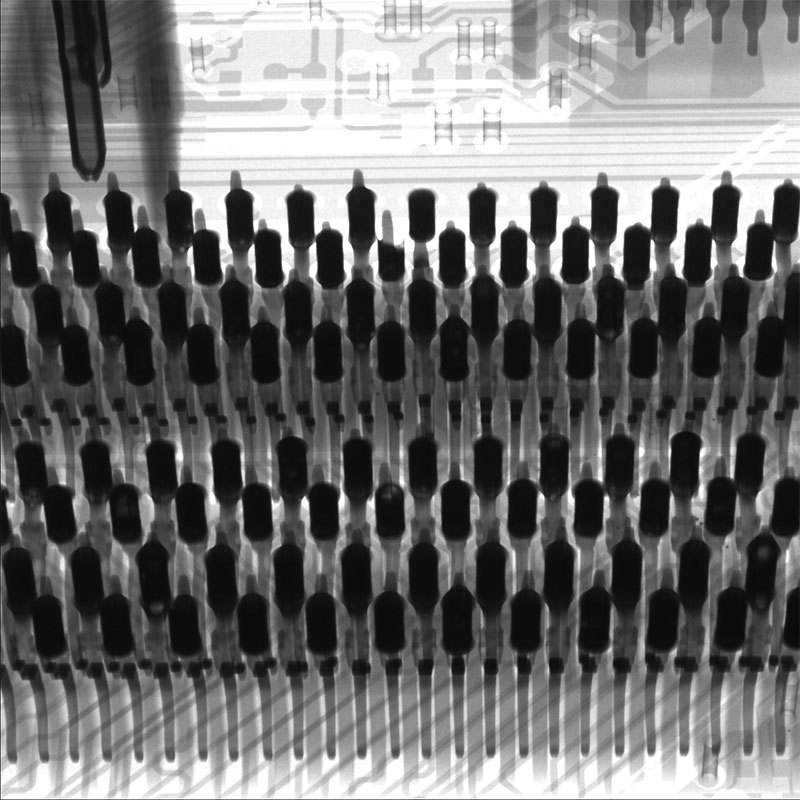

- 7-Axis Linkage & 360° Rotation：Loading platform 360° rotation + detector 60° tilting, easy and comprehensive detection of BGA soldering and hidden solder joints
- Ultra-High Magnification：1500x system magnification, clear visualization of micro components and fine soldering details
- Dual Energy X-ray Detection：0.5mm detection sensitivity, dual energy system for accurate identification of material density differences and defects
- Software-Controlled X-Ray：Digital adjustment of tube voltage (40KV-130KV) and current (10-300uA) for customized inspection of different materials
- Powerful Image Performance：1536*1536 high resolution, 20fps image speed, 16-bit grayscale display with real-time enhancement & contrast optimization
- Intelligent Automated Detection：AI-powered algorithm for PCB inspection, auto recognition of product shape/density variations, multi-zone density analysis
- Upgradeable to CT：Professional software analysis functions support CT upgrade for 3D tomographic inspection of complex components
- FDA & CE Compliant Safety：Robust radiation protection, radiation leakage ≤1μSv/h (＜0.5μSv/h at 10cm), lead-free safety curtains with interlocks, dual emergency stop buttons
- User-Friendly Operation：Intuitive touchscreen interface, one-touch product changeover, automatic system calibration, remote diagnostic capabilities
- Comprehensive Data Management：Real-time data logging, quality report export, full production data tracking for traceability and quality assurance
Technical Specifications
| Parameter Category | Details | Specifications |
|---|---|---|
| Model | - | Xmark 7 |
| X-Ray Launching Tube | Tube Type | Sealed type X-ray tube |
| Tube Voltage | 40KV - 130KV (software adjustable) | |
| Tube Current | 10 - 300μA (software adjustable) | |
| Focal Size | 5 - 15 μm | |
| Detector | Image Speed | 20 fps |
| Resolution | 1536 * 1536 pixels | |
| Tilting Angle | 60° (for BGA soldering detection) | |
| Mechanical System | Stage Rotation | 360° unlimited rotation |
| Axis Linkage | 7-axis linkage | |
| Stage Size | 500mm * 500mm | |

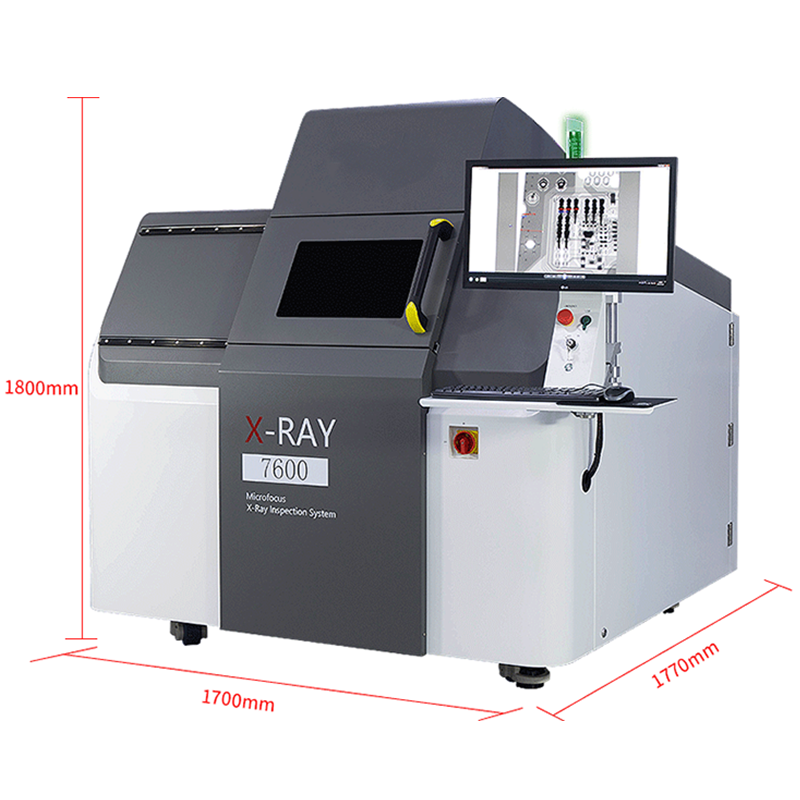

| Cabinet Specifications | Overall Dimension | L170cm * W177cm * H177cm |
| Net Weight | 1900kg | |
| Power Supply | Input Voltage | AC 110-220V（±10%）- International general power supply |
| Total Power | 2.5Kw | |
| Power Consumption | 1.5kW | |
| Safety Performance | Radiation Leakage | ≤1 μSv/h (＜0.5 μSv/h at 10cm from cabinet) |
| Compliance | FDA & CE radiation protection standards | |
| Operating System | - | Windows 7 |
| Environmental Adaptability | Operating Temperature | 0 - 40°C |
| Humidity Range | 20 - 90% non-condensing | |
| Production Efficiency | Conveyor Belt Speed | 0.2 - 0.8 m/s (adjustable) |
| Max Product Height | 300mm | |
| Max Product Width | 400mm | |
| Max Throughput | Up to 200 items per minute | |
| Display & Operation | Monitor | 17″ high-resolution LCD (16-bit grayscale) |
| Interface | Intuitive touchscreen + physical emergency stops |
Main Applications

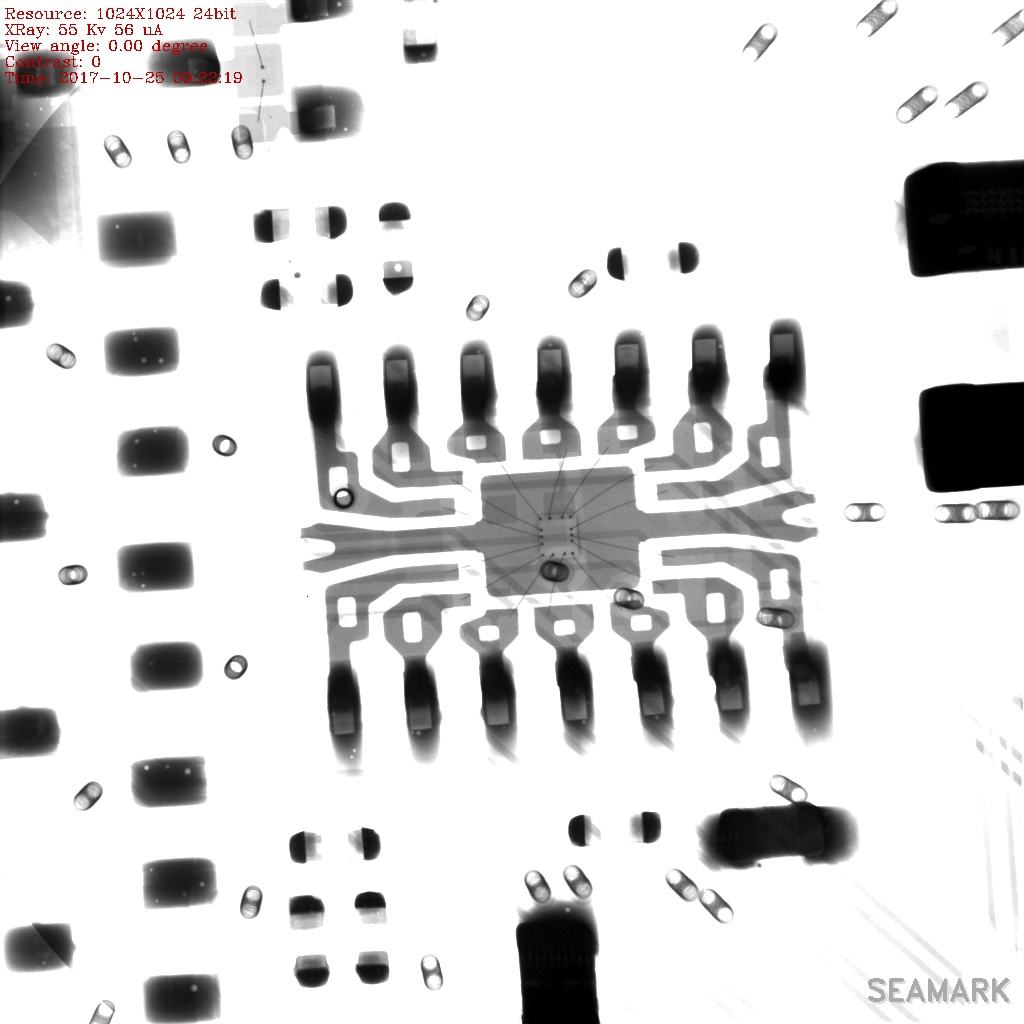

- PCB & SMT Assembly Inspection：BGA, QFP, CSP soldering quality check, hidden solder joint defect detection
- Electronic Component Inspection：Micro component internal structure testing, pin connection verification
- PCBA Quality Control：Full PCB assembly non-destructive testing for automotive, aerospace, consumer electronics

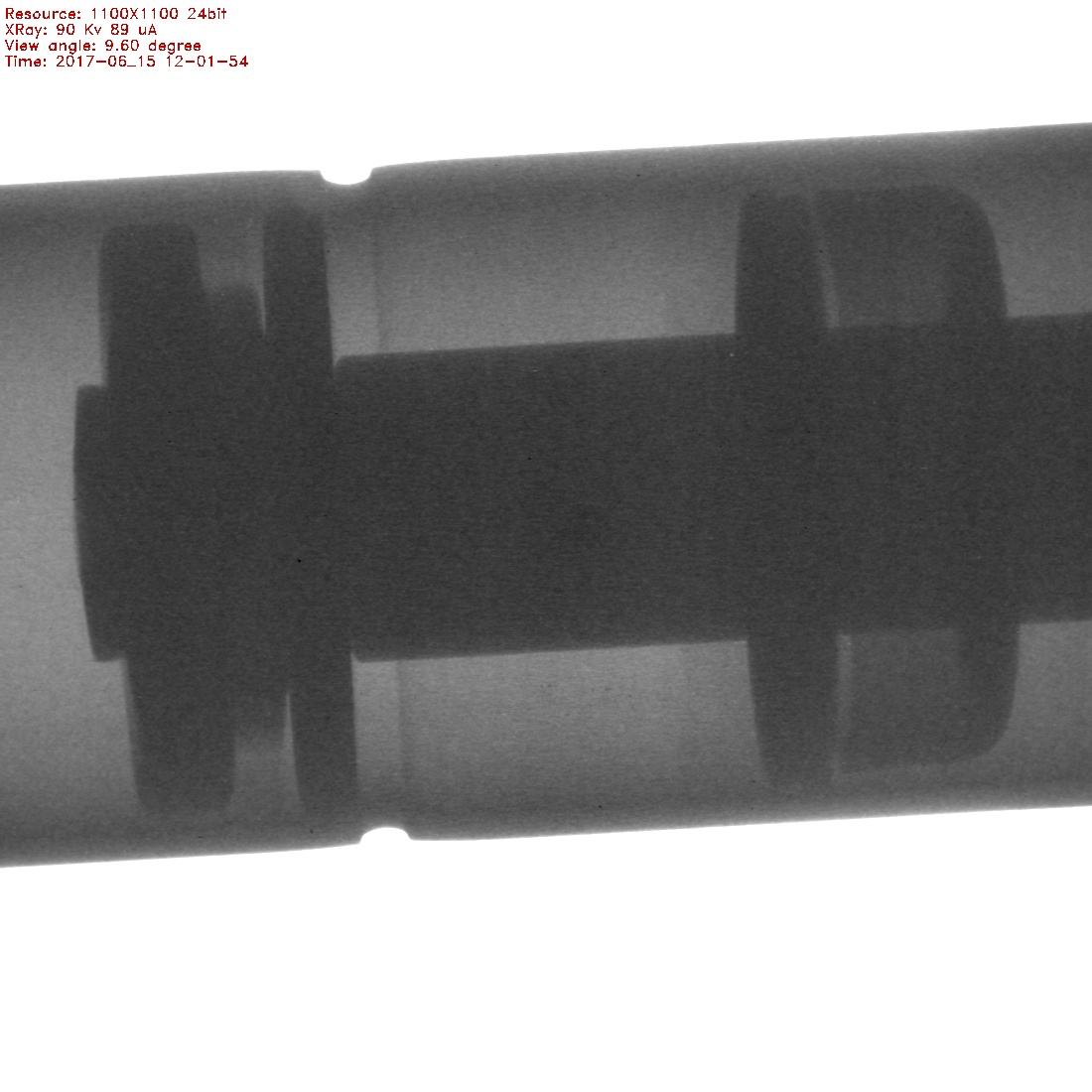

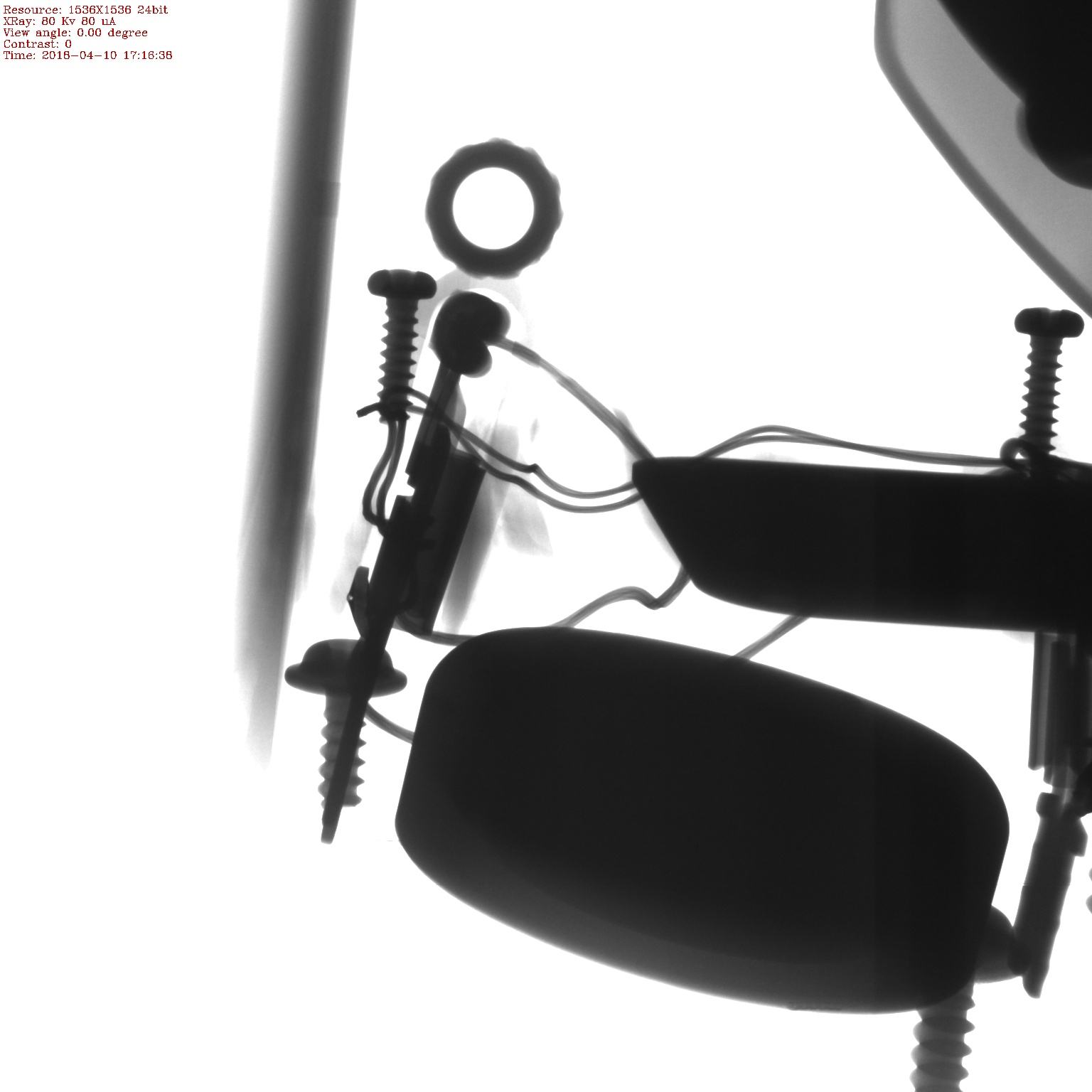

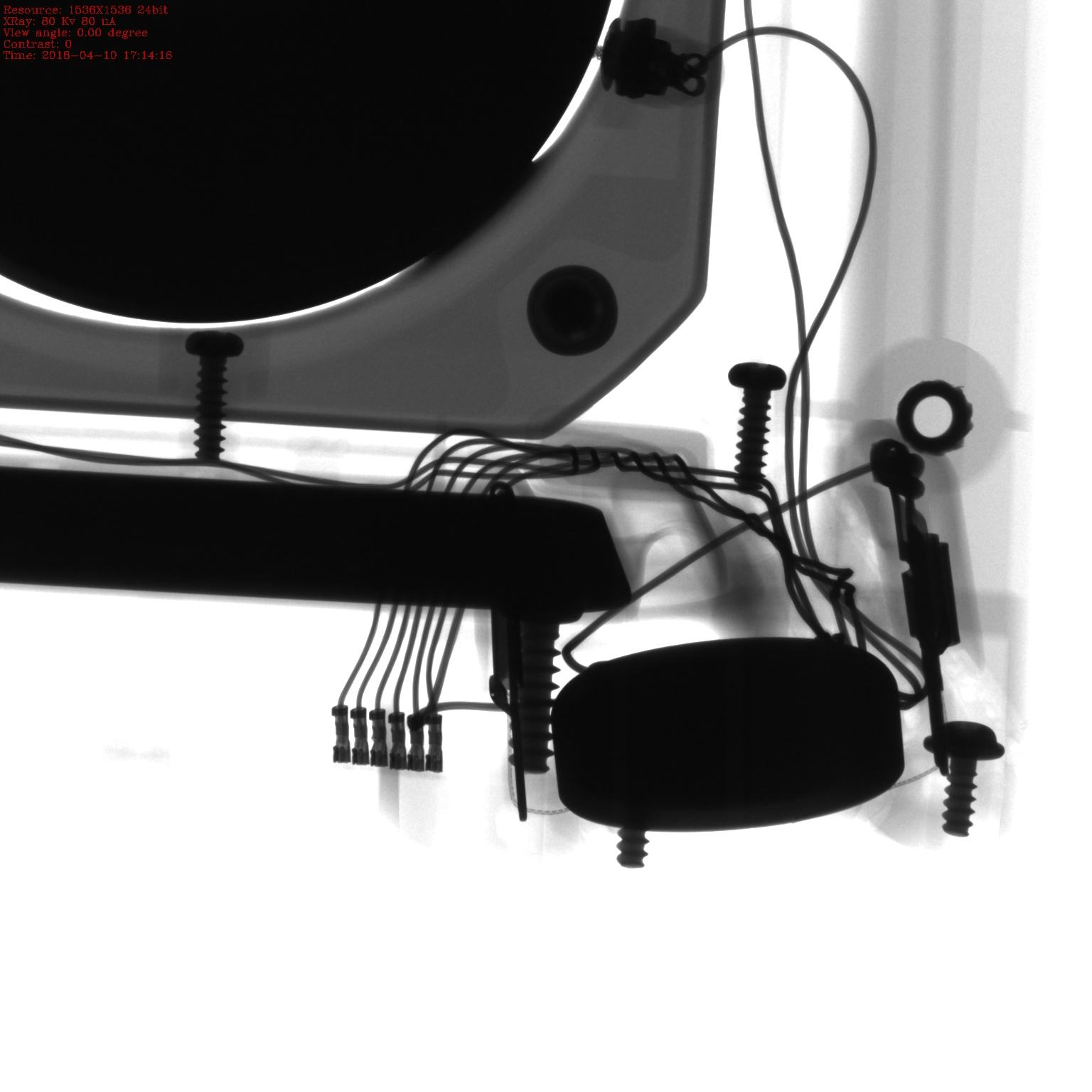

- Industrial Components Inspection：Internal defect detection of metal/plastic industrial parts
- Pharmaceutical Manufacturing：Packaging integrity inspection, contamination detection
- Food & Beverage Production：Foreign object detection in sealed packaging, HACCP compliance inspection
- Consumer Goods Packaging：Safety and quality inspection of sealed consumer product packaging
Why Choose BRUNIMIND Xmark 7?
BRUNIMIND Xmark 7 stands at the pinnacle of X-ray inspection technology, combining high-precision non-destructive testing with optimal production efficiency for modern manufacturing. Its 7-axis linkage and 360° rotating stage solve the pain point of difficult detection of hidden solder joints like BGA, while the 1500x magnification and dual energy detection ensure zero missed detection of micro defects.
The system is built with global compliance in mind—FDA & CE certified radiation protection, international universal power supply, and customizable detection parameters for different industries and products. With remote diagnosis, automatic calibration and one-touch changeover, it significantly reduces operator training time and production downtime. The full data tracking and report export functions realize closed-loop quality management, helping manufacturing enterprises improve product yield and brand quality.
Backed by 24/7 technical support, comprehensive warranty coverage and preventive maintenance programs, BRUNIMIND Xmark 7 is a reliable long-term investment for enterprises pursuing high-precision quality control and intelligent production.
