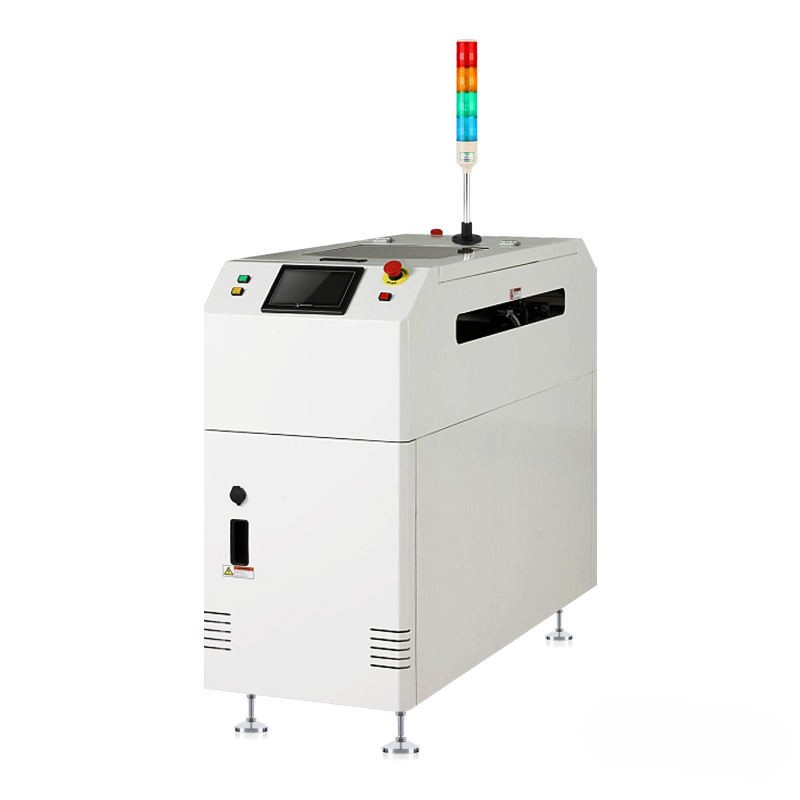

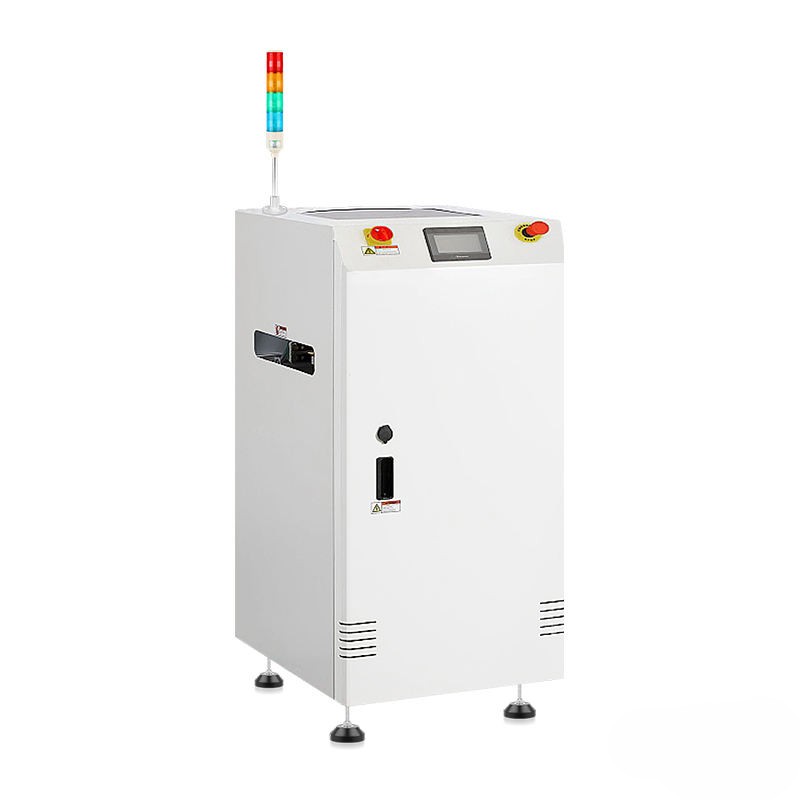

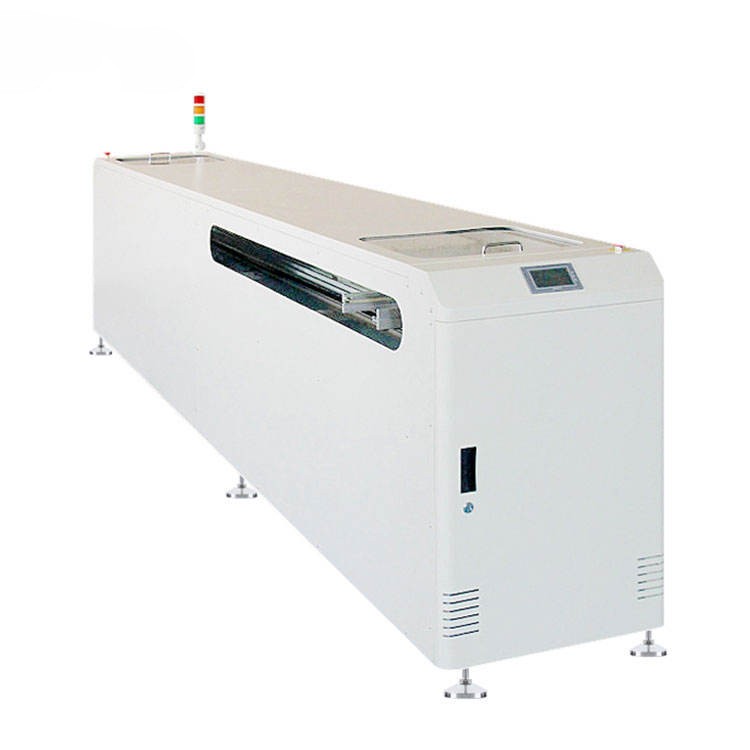

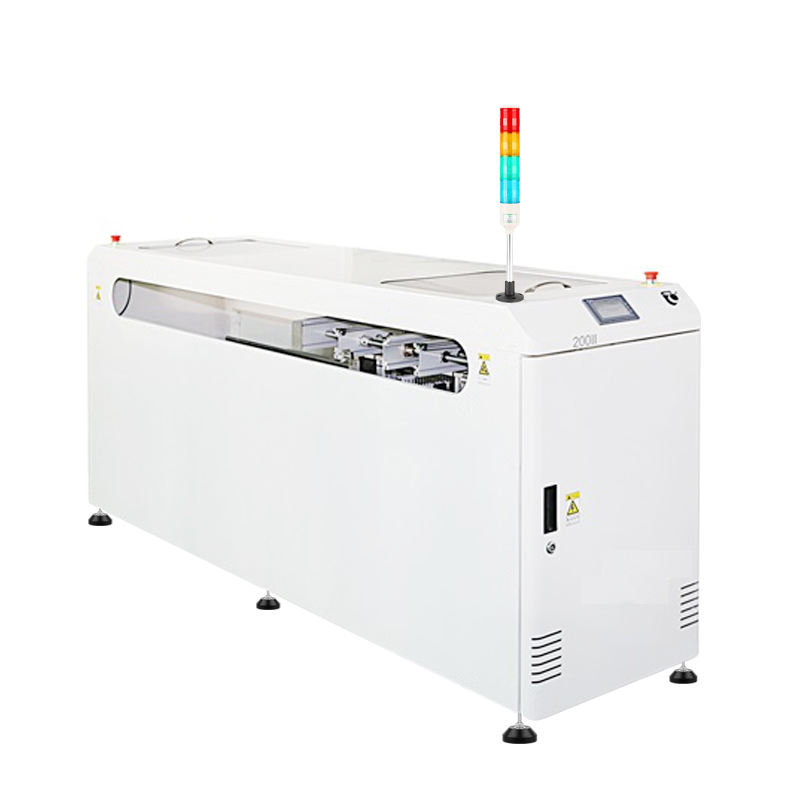

Brunimind PCB Stacker and Destacker

Key Features

  • Panasonic PLC control system for stable and precise operation
  • Optional user soft-touch control panel or touch screen for flexible operation
  • Aluminum structure with bottom weighted design, anti-shift and high stability
  • Equipped with by-pass mode for diversified production needs
  • Stepper motor drive for smooth and precise linear motion
  • High-load bearing with interference-free PCB transfer
  • Minimized conveyor clearance for seamless connection
  • Fully SMEMA compatible for easy SMT line integration

Product Description

Brunimind PCB Stacker and Destacker is a compact, high-efficiency automated PCB handling solution designed for the entry and exit points of SMT production lines. It realizes automatic destacking of bare PCBs at the start of the production line and automatic stacking of finished PCBs at the end, replacing manual board handling to significantly reduce labor costs and improve overall SMT line efficiency.

Featuring a smooth pneumatic lifting system, this equipment ensures gentle and damage-free PCB transfer, and is fully compatible with belt conveyors and rail-type SMT conveyors. Its compact structure and stable performance make it an ideal choice for high-speed assembly lines, prototype production, and large-volume standard PCB manufacturing scenarios.

Technical Specifications



Item Details
Application Automatic transmission of bare PCBs in SMT production lines; automatic loading/unloading & stacking/destacking
Cycle Time About 10 seconds
Max. PCB Storage Capacity 400 pcs (0.6mm thickness board)
Minimum PCB Thickness 0.6mm
Max. Power Source 100V
Power Supply AC 110V / 220V; single phase
Air Pressure & Consumption 4-6 bar; max. 10ltr/min
Transport Height 900 ± 20mm (or customer specified)
Transport Direction Left to right / right to left (bidirectional)

Core Parts Configuration



Component Brand
Motor VTV
PLC Panasonic
Touch Screen Qinglan
Magnet Switch SMC
Air Cylinder SMC
Inductive Switch Omron
Limit Switch Omron
Sensor Omron
Relay Omron
Switching-Mode Power Supply Omron

Product Model Specifications

Machine Type Model Dimension (L × W × H, mm) PCB Board Size (mm) Weight (kg)
Stacker BM-460 550×889×1200 50×50-460×460 200
Destacker BM-460 503×889×1200 50×50-460×460 180

Key Applications

  • Destacker function: Feeds bare PCBs at the starting point of SMT production lines
  • Stacker function: Collects finished PCBs at the end of SMT production lines
  • Ideal for consumer electronics, LED lighting, automotive and home appliance manufacturing industries
  • Fully compatible with inline PCB conveyors, screen printers, AOI machines and PCB buffers
  • Suitable for high-speed SMT assembly lines, prototype runs and large-volume standard PCB production

Usage Benefits

  • Automates bare PCB loading and unloading, drastically reducing manual labor costs
  • Eliminates PCB damage risks caused by manual handling, lowering production loss
  • Compact footprint, perfect for SMT production environments with limited space
  • Seamless integration with existing SMT conveyor systems, no complex reconfiguration
  • Stable and precise operation ensures continuous and efficient SMT line running
  • Dual-direction transport and by-pass mode meet diverse production layout needs
  • High-quality core components for long service life and low maintenance costs
