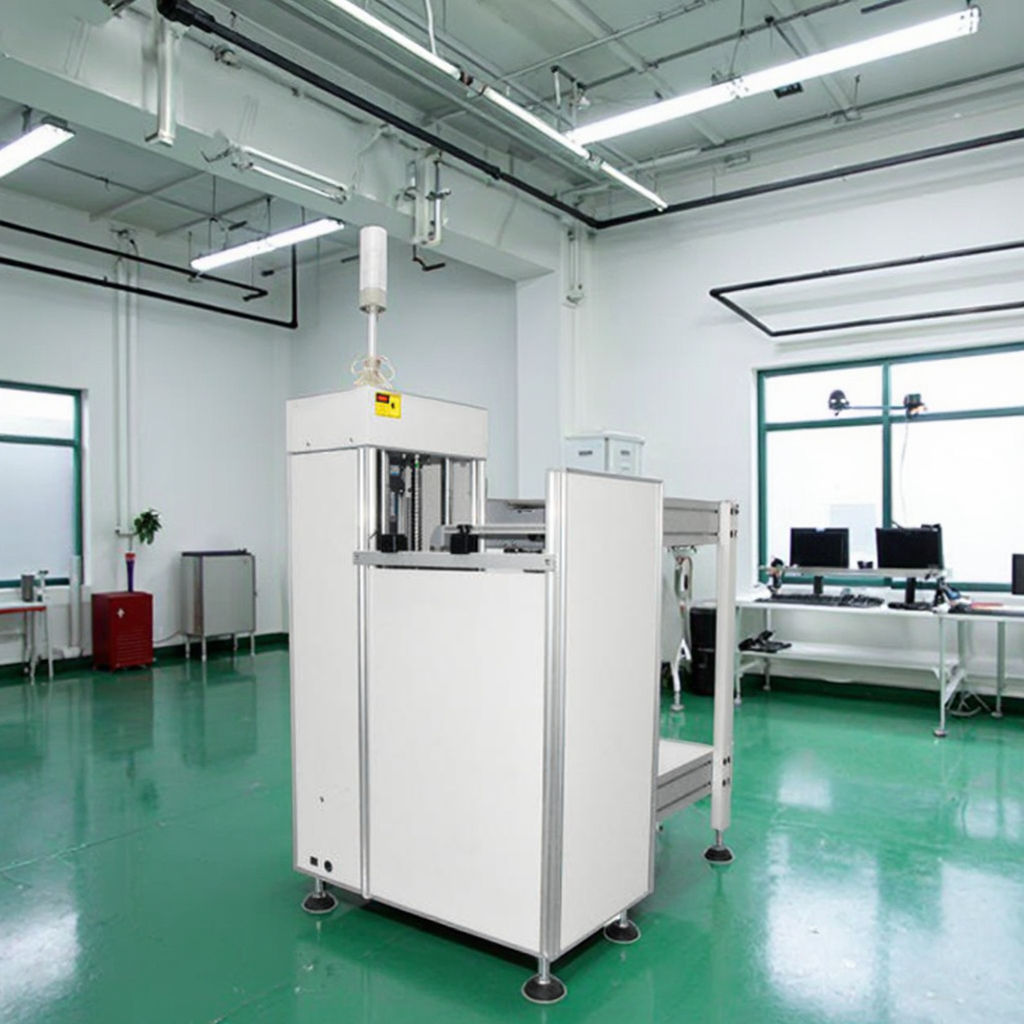

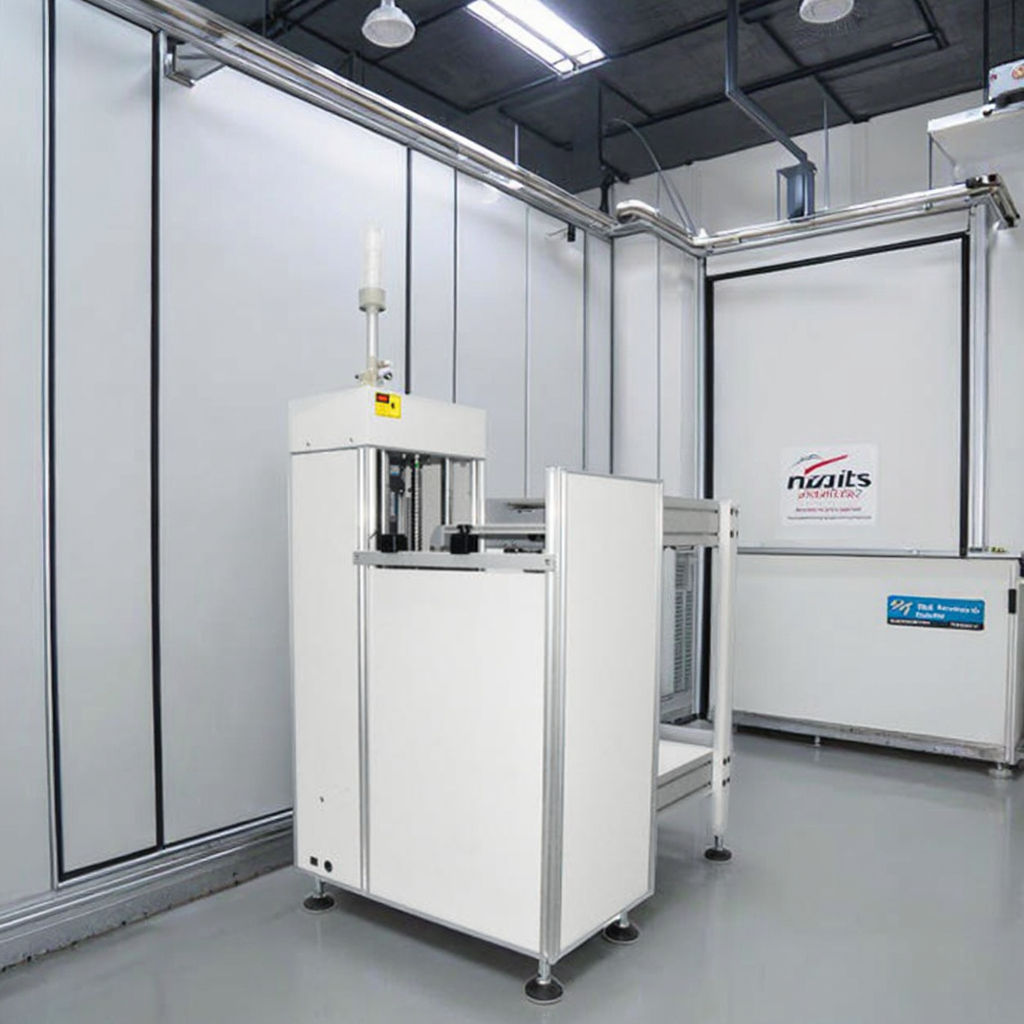

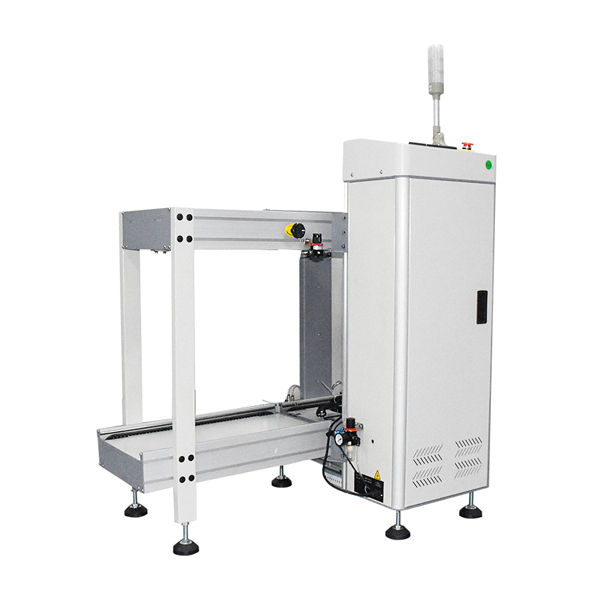

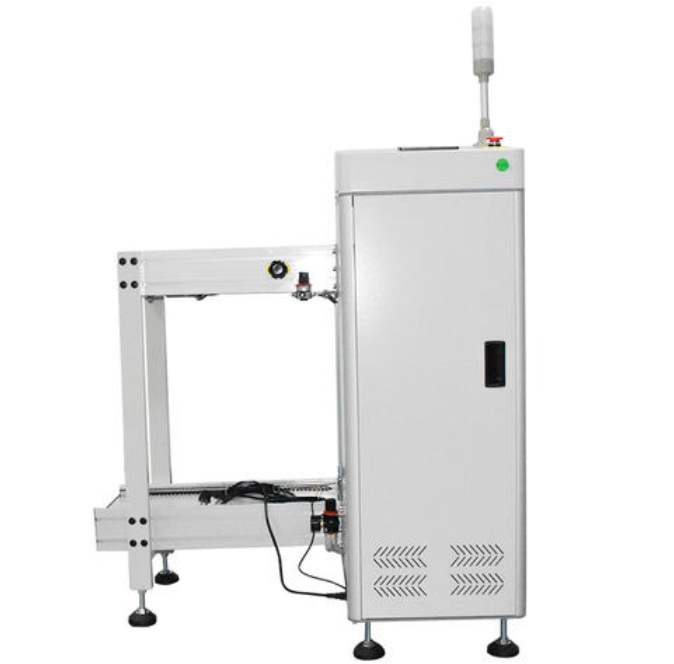

Brunimind Vacuum and Magazine Combination Loader
Key Features
- Special aluminum alloy structure for clear monitoring of magazine operation status
- Integral casting lifting platform structure enhances equipment stability
- Multifunctional electronic circuit and program design ensure stable performance and smooth production lines
- 4 PITCH selections on the bin for customizable PCB feeding step distance
- 7-inch color HMI controls LED tricolor working indicator for intuitive operation
- Universal positioning mechanism for suction nozzles, adjustable according to PCB characteristics

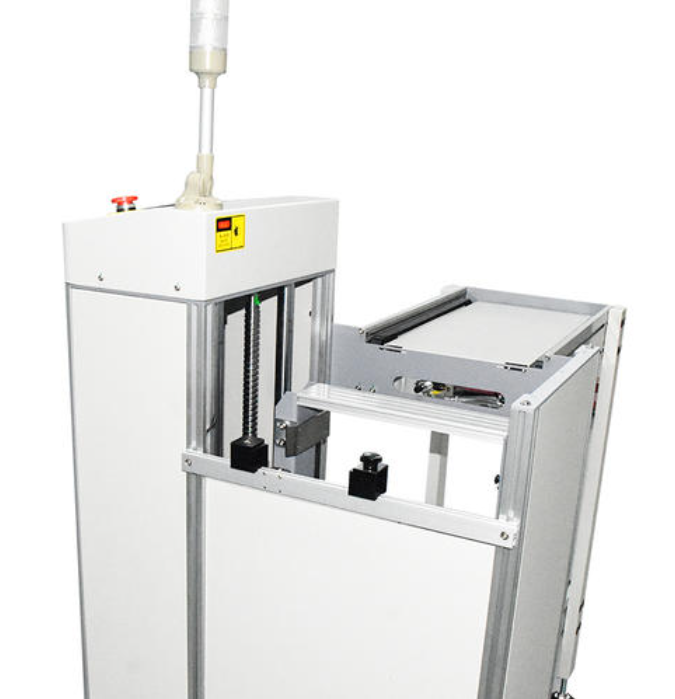

- Elevator function integrated in the vacuum PCB feeding section
- Flat plastic strip transmission for smooth magazine conveying
- Adjustable push plate speed to meet flexible production requirements
- Three-point positioning with upper and lower pneumatic clamping for precise magazine positioning
- Push plate protection system prevents PCB damage and reduces process loss
- Standard SMEMA communication interface for seamless integration with other automation devices
Product Description
Brunimind Vacuum and Magazine Combination Loader is a high-flexibility dual-function PCB loading machine that integrates vacuum suction and magazine-based loading into a single compact system. Engineered for efficiency and adaptability, it enables manufacturers to handle both bare PCBs and assembled PCBs with different thicknesses and surface conditions, solving the challenge of reliably loading fragile, thin or warped PCBs that traditional mechanical pushers cannot manage.
The magazine mode supports standard automatic PCB feeding from slotted magazines, while the vacuum suction mode ensures gentle, damage-free handling of sensitive PCB types. This dual-mode design makes the machine an ideal choice for high-mix SMT production lines that require frequent product and PCB type changes, and it seamlessly integrates into existing automated assembly setups to enhance operational continuity.
Technical Specifications
| Item | Details |
|---|---|
| Application | Automatic loading of bare and double-size PCBs in SMT production lines |
| Number of Magazines | Upper conveyor: 1 magazine; Lower conveyor: 1 magazine |
| Max. PCB Storage Capacity | 400pcs (0.6mm thickness PCB) |
| Indexing Pitch | 10, 20, 30, 40mm (or customer specified) |
| Minimum PCB Thickness | 0.6mm |
| Cycle Time | Approx. 12 seconds (or customer specified) |
| Max. Power | 300VA |
| Power Supply | AC 110V / 220V; single phase |
| Air Pressure & Consumption | 4-6 bar; max. 30ltr/min |
| Transport Height | 900 ± 20mm (or customer specified) |
| Transport Direction | Left to right / right to left (bidirectional) |
Core Parts Configuration
| Component | Brand |
|---|---|
| Motor | VTV |
| PLC | Panasonic |
| Touch Screen | Qinglan |
| Grooved Electric Eye | Omron |
| Elevator Screw | Taiwan TBI (full set) |
| Photoelectric Switch | Omron |
| Flexible Cable | Germany Igus |
| Relay | Omron |
| Switching-Mode Power Supply | Omron |
Product Model Specifications
| Model | Dimension (L × W × H, mm) | PCB Board Size (mm) | Magazine Size (L × W × H, mm) | Weight (kg) |
|---|---|---|---|---|
| BM250 | 1640×865×1250 | 50×50-330×250 | 355×320×563 | 200 |
| BM330 | 1950×945×1250 | 50×50-445×330 | 460×400×563 | 240 |
| BM390 | 2270×1110×1250 | 50×50-530×390 | 535×460×563 | 280 |
| BM460 | 2270×1250×1250 | 50×50-530×460 | 535×530×563 | 320 |
Key Applications
- Primary loading equipment at the start of SMT production lines for bare and assembled PCBs
- Ideal for gentle handling of fragile, thin, warped or non-standard PCBs via vacuum suction
- Perfect for high-mix, multi-product SMT assembly lines requiring flexible PCB handling
- Compatible with belt conveyors, rail-type SMT conveyors and inline PCB handling systems
- Suitable for electronic manufacturing facilities with variable production needs and frequent setup changes
Usage Benefits
- Integrates two loading methods in one compact unit, reducing equipment investment costs and saving factory floor space
- Broad compatibility with diverse PCB types and sizes, with quick mode switching to minimize downtime
- Minimizes changeover time in flexible production setups, directly boosting overall productivity
- Vacuum suction technology ensures gentle, damage-free loading of sensitive or warped PCBs, reducing process loss
- Robust component configuration and stable structure for long-term reliable operation
- SMEMA compatibility enables seamless integration with existing automated SMT line equipment, enhancing overall line automation
