BruniMind SMT PCB Dual-Side Cleaner | SMT Line PCB Dust Removal & Static Elimination Equipment

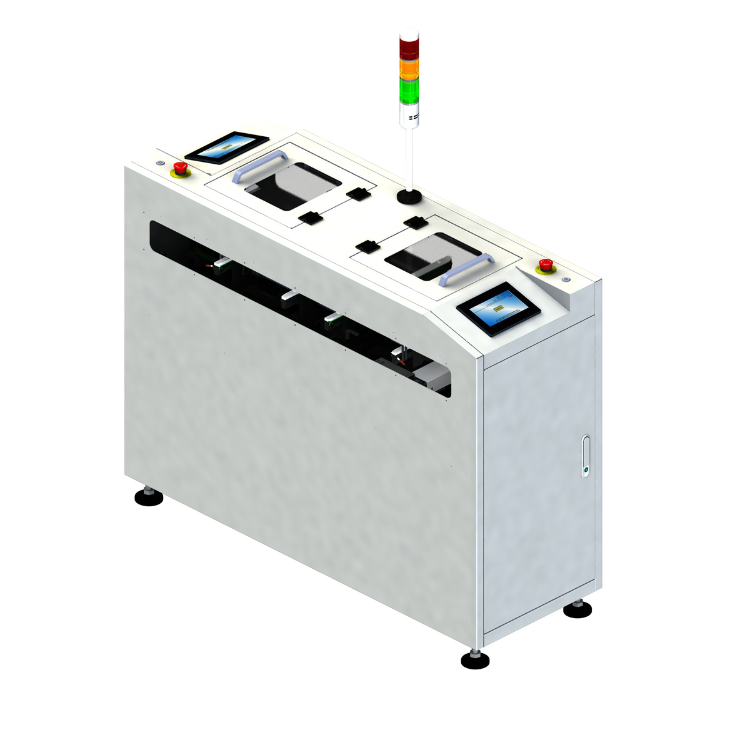

BruniMind SMT PCB Dual-Side Cleaner is a high-precision automation device engineered for SMT production lines, ideally positioned before solder paste printers or after laser markers. It efficiently removes surface dust and eliminates static electricity from PCBs, ensuring superior printing and laser marking quality, reducing process defects, and boosting overall production yield for electronic manufacturing. Built with industrial-grade components and intelligent control, it delivers consistent,

Key Features

  • Dual-Side Contact Cleaning: Upper and lower cleaning rollers directly contact PCB surfaces for thorough dust removal; paired sticky paper keeps rollers clean at all times, maintaining stable and consistent cleaning performance.
  • Comprehensive Static Elimination: 4 SMC electrostatic eliminators (2 at entrance, 2 at exit) effectively reduce PCB static buildup, optimizing dust removal results and ensuring process stability.
  • 3 Flexible Operation Modes: Adapt to diverse production needs with customizable cleaning modes—Dual-side dust removal, Top-side only cleaning, and Conveyor mode (accommodates components up to 13mm on top / 40mm at bottom).
  • Easy Maintenance: Sticky rollers are pull-out design for quick cleaning and sticky paper replacement, minimizing equipment downtime and simplifying daily upkeep.
  • Adjustable Cleaning Speed: 4~30 seconds adjustable cleaning cycle, matching the speed of different SMT production lines for seamless integration.
  • Precision Industrial Control: Omron PLC + Panasonic sensors ensure accurate PCB positioning and stable operation; Weinview touch screen enables intuitive parameter adjustment and operation.
  • Standard SMEMA Compatibility: Seamless connection with existing SMT production line equipment, supporting automated continuous production workflows.

Models & Dimensions

表格

Model Number PCB Size Range Machine Overall Dimensions
BM9330 (L)100*(W)70 ~ (L)460*(W)330mm (L)360 x (W)880 x (H)1400mm
BM9460 (L)100*(W)70 ~ (L)330*(W)460mm (L)360 x (W)1010 x (H)1400mm

Full Technical Specifications

表格

Item Main Specification
Transport Direction Front fixed; Left to Right / Right to Left (optional)
AC Power Supply AC220V/50~60HZ
Sticky Roller Pull-out design for roller cleaning and sticky paper replacement
Transport Motor Leadshine stepper motor
Max Transport Weight Under 2kg (3mm black edge belt & rail)
Standby Board Quantity 1 PCB (stay mode)
Transport Height 900+50/-20mm
Control System Omron PLC + Panasonic sensors
Control Panel Weinview touch screen
Static Eliminator Quantity 4 pcs (2 at entrance, 2 at exit)
Static Eliminator Brand SMC electrostatic eliminator
Adjustable Cleaning Speed 4~30 seconds
Cleaning Scope Dual-side (switchable to single top side)
Cleaning Rollers 2 upper & 2 lower cleaning rollers (one set for each side)
Required Air Pressure 6kg/cm³
Air Specification 0.4MPa

Product Application

BruniMind SMT PCB Dual-Side Cleaner is an essential pre-processing and post-processing equipment for SMT production lines, widely used in electronics manufacturing plants, PCB assembly facilities, and high-precision electronic component processing workshops. It is professionally installed before solder paste printers (to avoid dust affecting solder paste printing precision) and after laser markers (to remove marking residue and static), and seamlessly integrates with SMT conveyors, magazine loaders, shuttle conveyors, and other SMT line equipment to build a fully automated, high-quality production workflow.

Why Choose BruniMind SMT PCB Dual-Side Cleaner?

BruniMind focuses on manufacturing high-performance SMT handling and surface treatment equipment, with the PCB Dual-Side Cleaner designed for precision, durability, and ease of use. Adopting top-tier industrial components (SMC static eliminators, Leadshine stepper motors, Omron PLC), it ensures long-term stable operation and low maintenance costs. The 3 flexible operation modes and adjustable cleaning speed make it adaptable to diverse PCB production requirements, while the thorough dust removal and static elimination function directly improves printing/marking quality, reduces defective products, and increases your production efficiency and economic benefits.
