BruniMind PCB Magazine Loader | Automatic SMT Line PCB Feeding Equipment

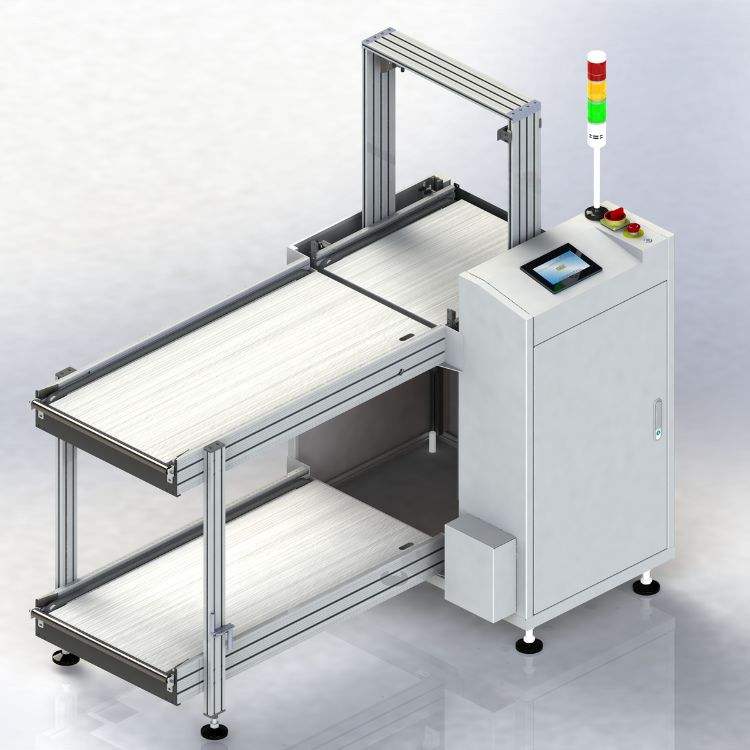

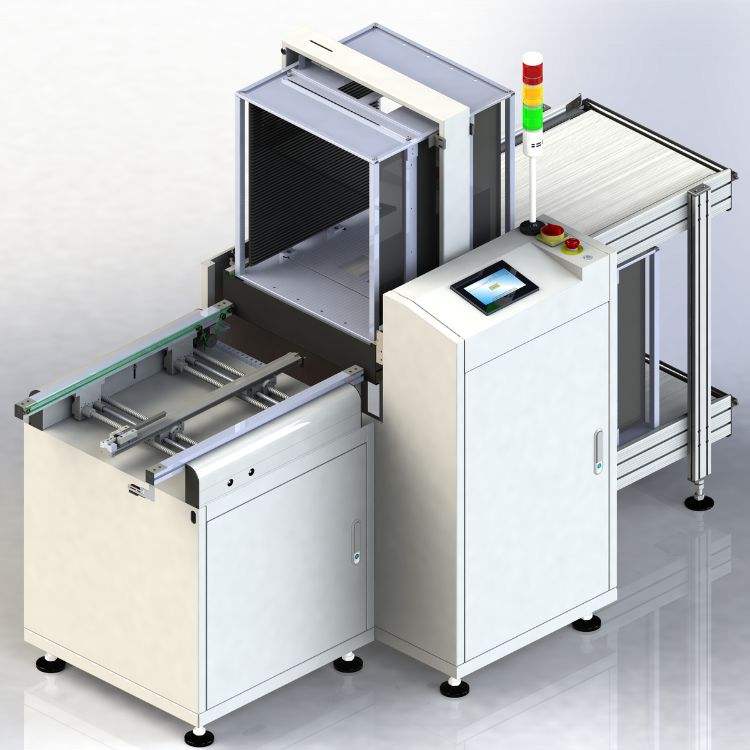

BruniMind PCB Magazine Loader is an industrial-grade automation solution engineered for the start of SMT production lines, automatically feeding PCBs from magazines one by one into the production workflow upon receiving downstream equipment signals. Built for high-speed SMT automation environments, it delivers precise PCB handling, smooth magazine transitions and reliable continuous feeding, optimizing the efficiency of your entire SMT production line with stable and intelligent operation.

Key Features

  • Automated Signal-Triggered Feeding: Releases PCBs singly from magazines in response to downstream machine signals, achieving fully automated SMT line start-up and reducing manual intervention.
  • Versatile Magazine Compatibility: Input, output and lift stations each support independent magazine placement, enabling streamlined and continuous PCB handling for mass production.
  • Configurable Lift Pitch: Customizable lift pitches of 10mm, 20mm, 30mm or 40mm to perfectly match various standard magazine types, enhancing equipment adaptability.
  • Flexible Transport Direction: Front fixed design with optional left-to-right or right-to-left PCB flow, easily integrated into different SMT line layout requirements.
  • Robust Industrial Construction: 3.0mm welded steel frame with premium PC color coating for superior structural stability, wear resistance and long-term reliable operation in harsh factory environments.
  • Precision Intelligent Control: Integrated Omron PLC and Panasonic sensors ensure accurate positioning, stable feeding and error-free PCB transfer, minimizing production downtime.
  • Dual Magazine Stations: Top and bottom dual magazine positions (2 each) for extended continuous feeding capacity and reduced magazine replacement frequency.

Available Custom Options

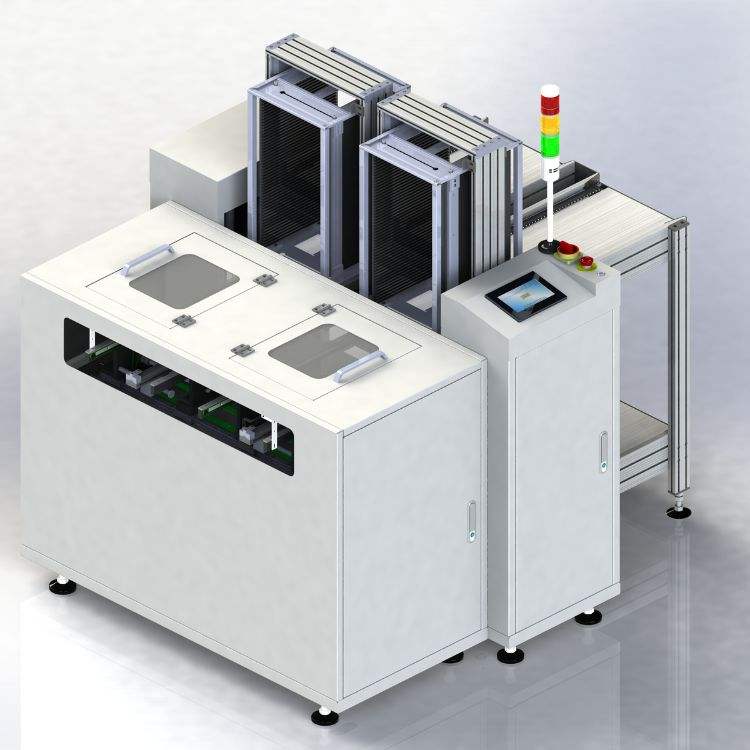

  1. Safety Cover (enhances operator safety and prevents dust from entering the working area)
  2. Universal Magazine Compatibility (supports 250mm, 330mm, 390mm or 460mm standard magazines)
  3. Auto Width Adjustment (one-click quick adaptation to different PCB sizes, reducing manual setup time)

Models & Technical Dimensions

表格

Model Number PCB Size Range Magazine Size Machine Overall Dimensions
BM9250 5050 ~ L350W250mm L355W320H536mm L1360W766H1200mm
BM9330 5050 ~ L460W330mm L460W400H570mm L1650W845H1200mm
BM9390 5050 ~ L535W390mm L535W460H570mm L1760W906H1200mm
BM9460 5050 ~ L535W460mm L535W530H570mm L1760W975H1200mm

Full Technical Specifications

Item Main Specification
Transport Direction Front fixed; Left to Right / Right to Left (optional)
PCB Top/Bottom Clearance 20/20mm
PCB Edge Requirement 3mm
Transport Height 900+50/-20mm
Lift Motor ZD 120W motor with brake
Transport Motor ZD 15W fixed speed motor
Max PCB Loading Weight Under 2kg
PCB Loading Direction Upper to Bottom (50-1)
Number of Magazines Top 2 magazines, Bottom 2 magazines
AC Power Supply AC220V/50-60HZ (single electric box control)
Lift Platform Ball screw lift with all-in-one aluminum platform
Control System Omron PLC + Panasonic Sensor
Control Panel Weinview Touch Screen
Frame Construction 3.0mm welded metal sheet with PC color coating
Communication Protocol Standard SMEMA

Product Application

BruniMind PCB Magazine Loader is a core feeding equipment for SMT production lines, widely applied in electronics manufacturing plants, printed circuit board (PCB) assembly facilities, electronic component processing workshops and high-speed SMT automation production scenarios. It seamlessly integrates with SMT conveyors, solder paste printers, pick-and-place machines, AOI inspection equipment and other downstream SMT line machinery, forming a fully automated, high-efficiency PCB assembly production workflow.

Why Choose BruniMind PCB Magazine Loader?

BruniMind is a professional manufacturer of high-performance SMT handling and automation equipment, committed to delivering reliable, efficient and adaptable solutions for electronics manufacturing. Our PCB Magazine Loader adopts industrial-grade core components (ZD motors, Omron PLC, Panasonic sensors, Weinview touch screen) for ultra-stable operation and low maintenance costs. The flexible configuration options and universal magazine compatibility make it suitable for diverse production needs, while the intelligent control system and automated feeding function help you reduce labor costs, improve production efficiency and achieve higher productivity in SMT mass production.
