BruniMind SMT Shuttle Conveyor | SMT Line PCB Transfer & Connection Equipment

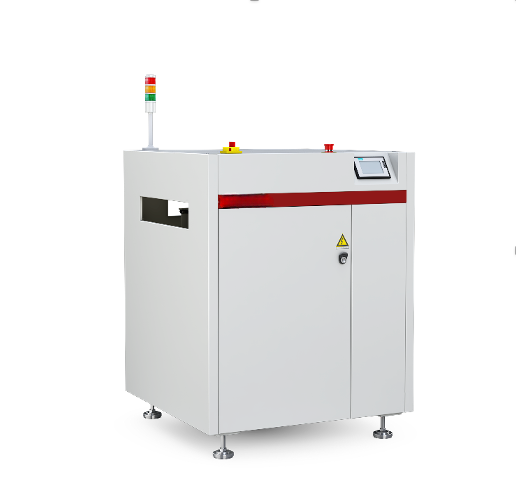

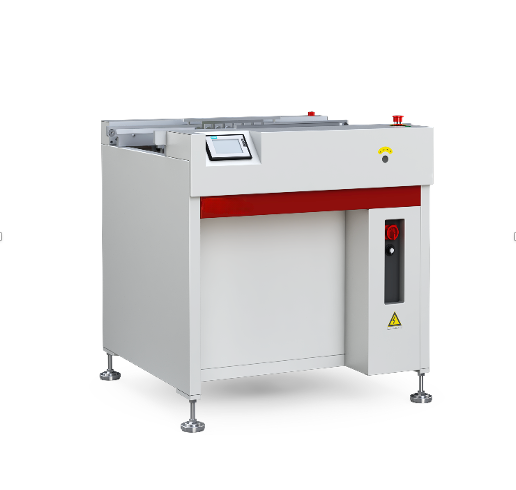

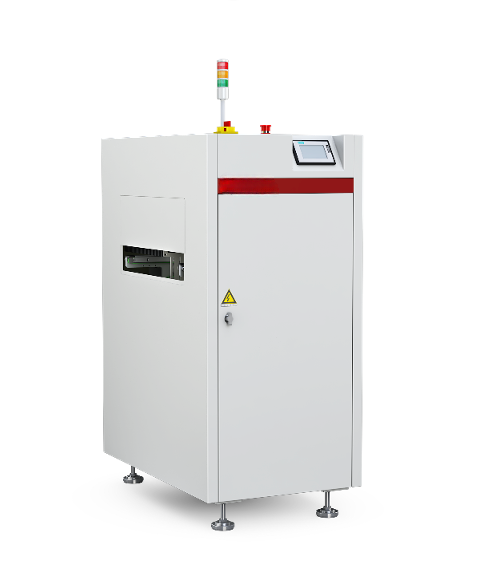

BruniMind SMT Shuttle Conveyor is a pivotal automation solution for seamless and flexible PCB transfer in SMT production lines. It effectively bridges rail edge misalignment gaps between front and rear SMT machines, and enables flexible production line reconfiguration—combining two SMT lines into one or splitting a single line into two independent workflows. Engineered for durability and adaptability, it’s an essential component for optimizing SMT line efficiency and flexibility.

Key Features

  • Eliminates PCB transfer interruptions caused by front/rear machine rail edge misalignment, ensuring continuous production flow
  • Flexible line reconfiguration: easily merge two SMT production lines or split one line into two independent lines to match production demands
  • Precision shuttle motion: step motor paired with synchronous belt and T-type rail delivers smooth, stable, and consistent PCB transfer
  • Robust build quality: 3.0mm welded steel frame with premium PC color coating for exceptional durability, stability and long-term industrial use
  • Seamless integration: compatible with standard SMEMA communication protocol for quick connection to existing SMT production systems
  • User-friendly operation: intuitive control system for easy setup and adjustment of transfer and shuttle parameters

Available Custom Options

  1. Ethernet Line Width Adjustment (remote width control for added operational convenience)
  2. Auto Width Adjustment (one-click adaptation to different PCB sizes, reducing manual setup time)

Models & Dimensions



Model Number PCB Size Range Machine Overall Dimensions
BM9350 L50W50 ~ L460W350mm (L)500 x (W)1200 x (H)1100mm
BM9460 L50W50 ~ L535W460mm (L)600 x (W)1200 x (H)1100mm

Technical Specifications

表格

Item Main Specification
Transport Direction Front fixed; Left to Right / Right to Left (optional)
AC Power Supply AC220V/50-60HZ (Single electric box control)
PCB Edge Requirement 3mm
Transport Height 900+50/-20mm
Transport Rail Special aluminum rail with 4.8mm flat belt for smooth transfer
Max PCB Loading Weight Under 2kg
Transport Motor ZD 15W adjustable speed motor
Control System Omron PLC + Panasonic Sensor
Control Panel Weinview Touch Screen
Shuttle System Step motor + Synchronous belt with T-type rail; 350mm moving distance
Frame Construction 3.0mm welded metal sheet with PC color coating on the surface
Communication Protocol Standard SMEMA

Product Application

BruniMind SMT Shuttle Conveyor is a core linking equipment for electronics manufacturing SMT production lines. It is widely used in circuit board assembly plants, electronic component processing facilities, and all SMT production scenarios that require machine rail alignment compensation or flexible line reconfiguration. It seamlessly connects with SMT destackers, conveyors, AOI inspection machines, solder paste printers and other SMT equipment to build a flexible and efficient automated production line.

Why Choose BruniMind SMT Shuttle Conveyor?

BruniMind specializes in high-performance SMT handling and automation equipment, with a focus on reliability, flexibility and industrial durability. Our SMT Shuttle Conveyor adopts industrial-grade core components (Omron, Panasonic, ZD) for stable operation and low maintenance costs. The flexible line reconfiguration function helps manufacturers quickly adapt to changing production orders and improve overall production line utilization, while the robust structural design ensures long-term operation in harsh industrial environments.
