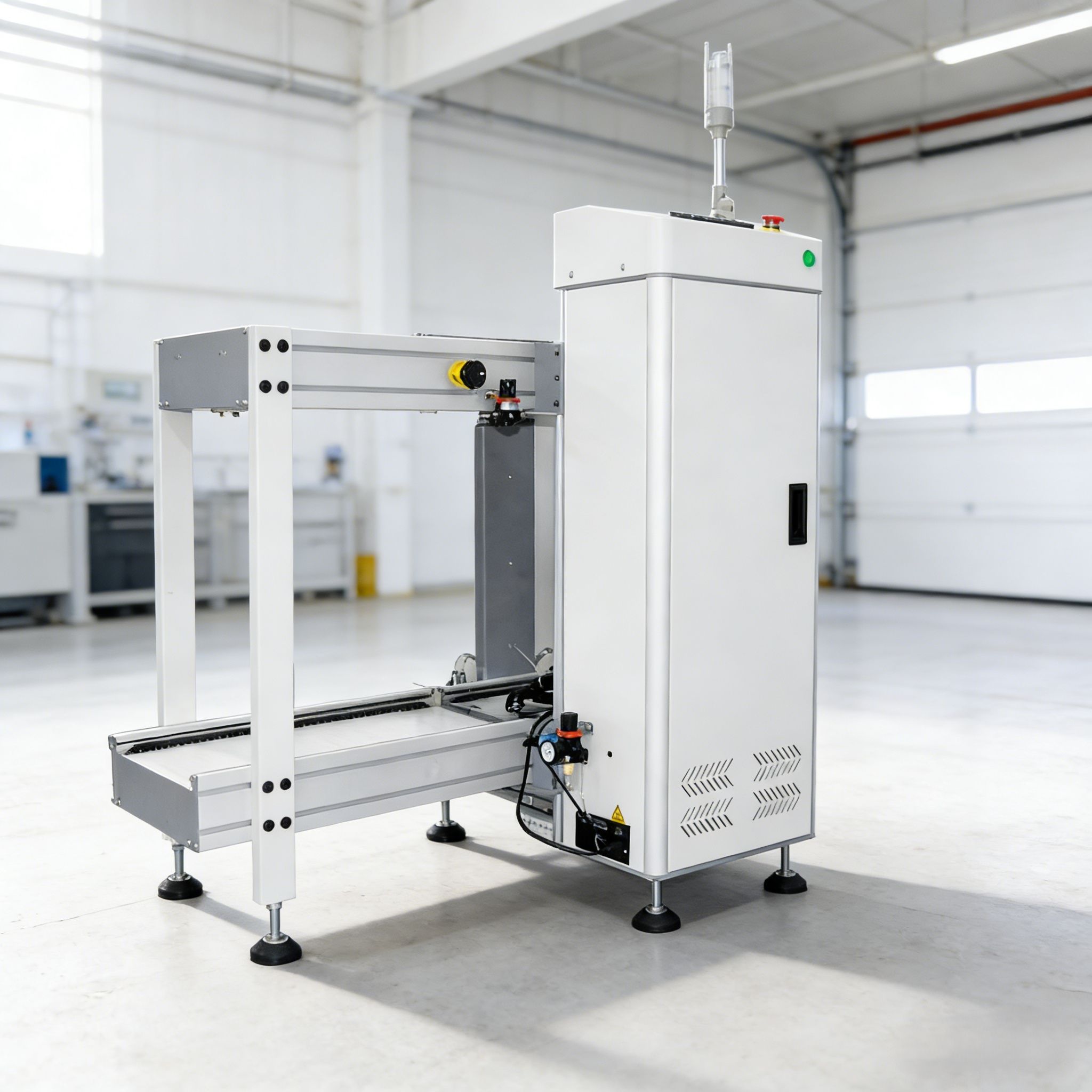

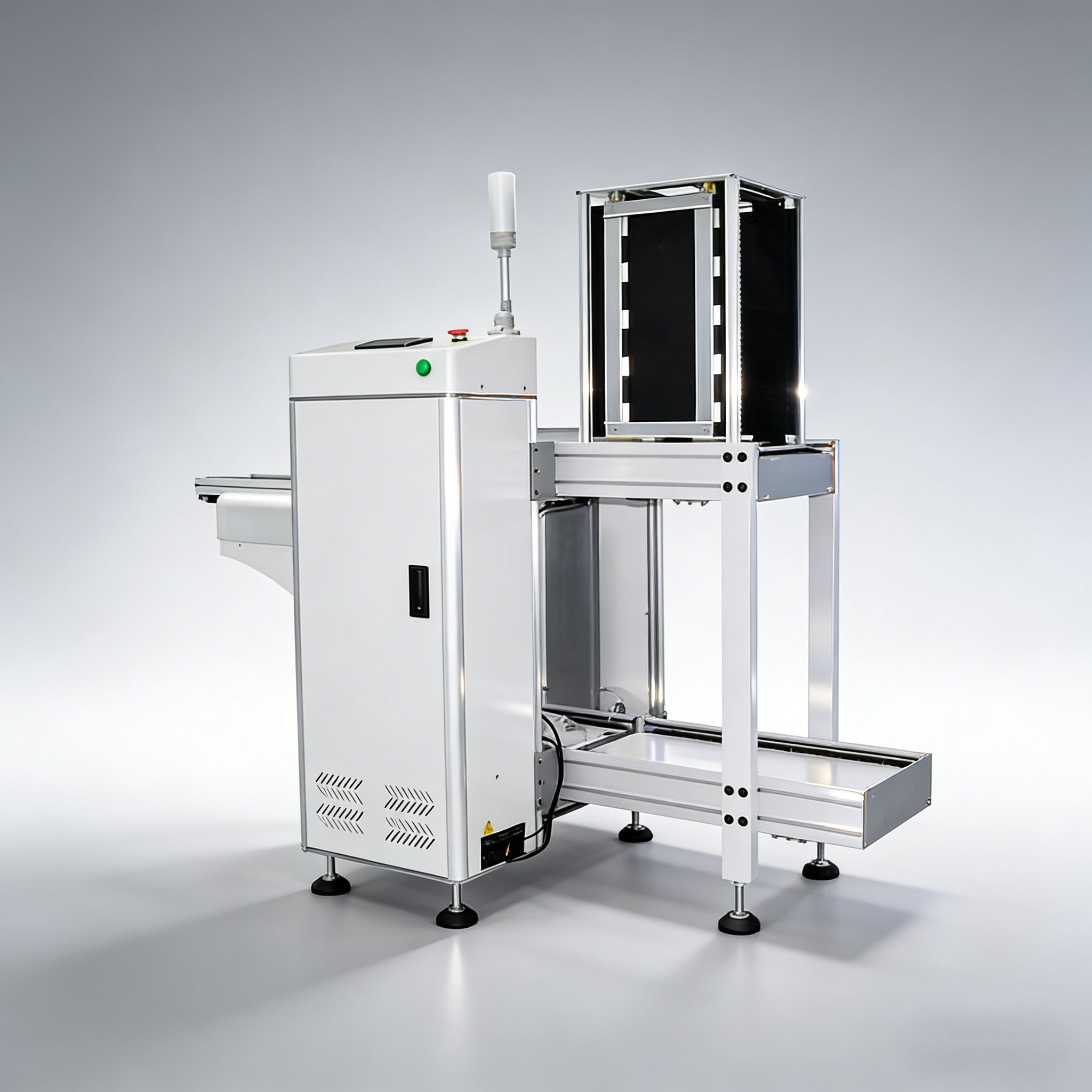

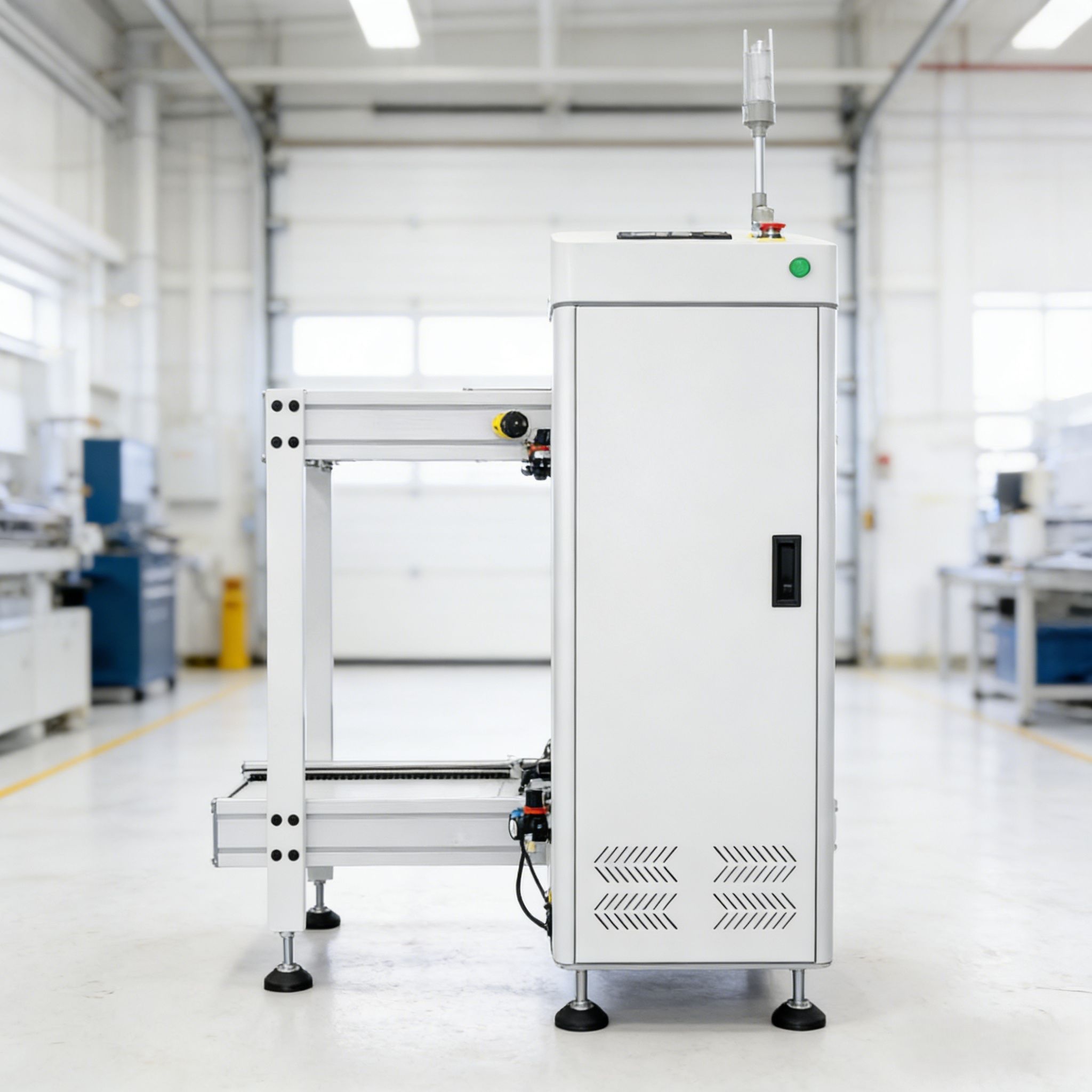

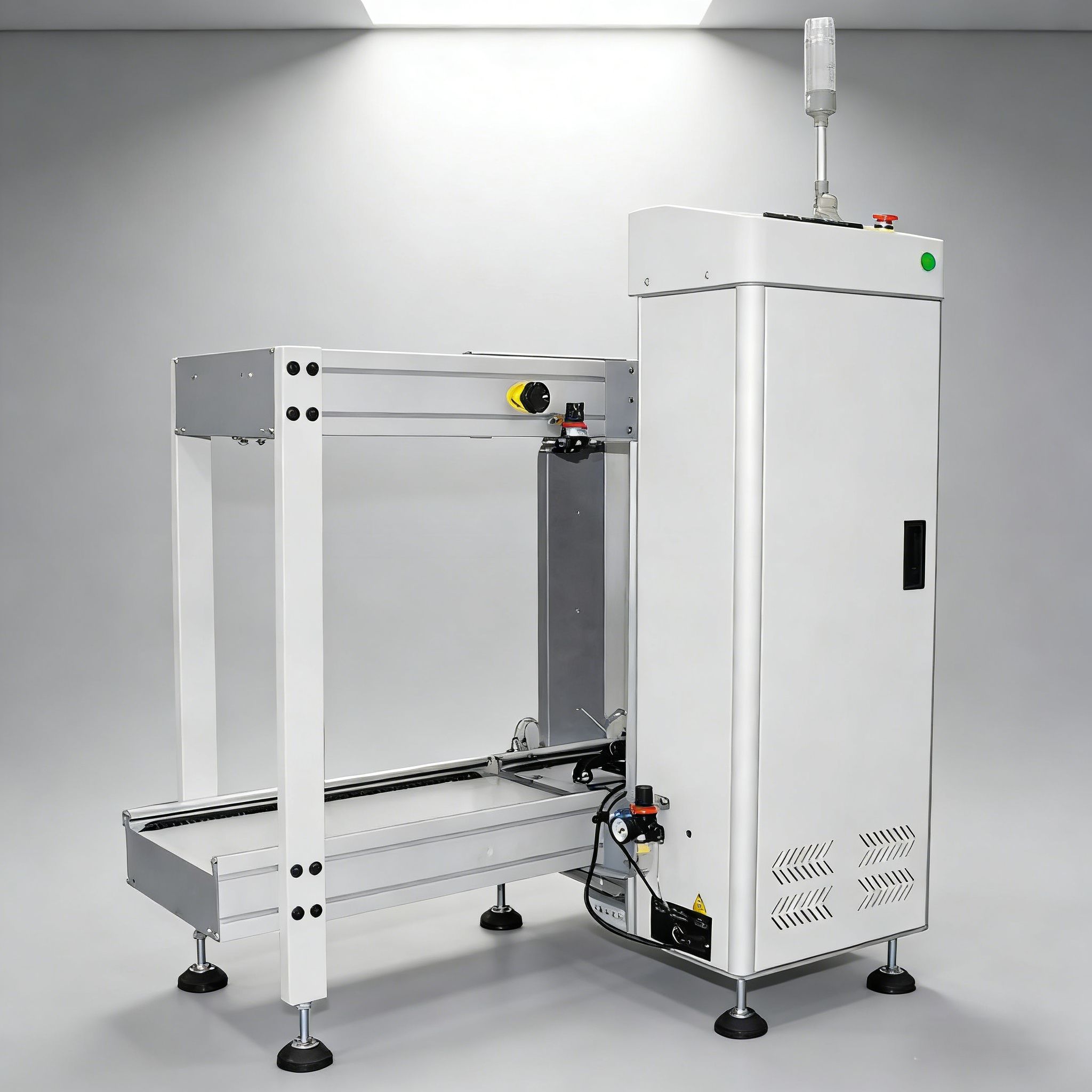

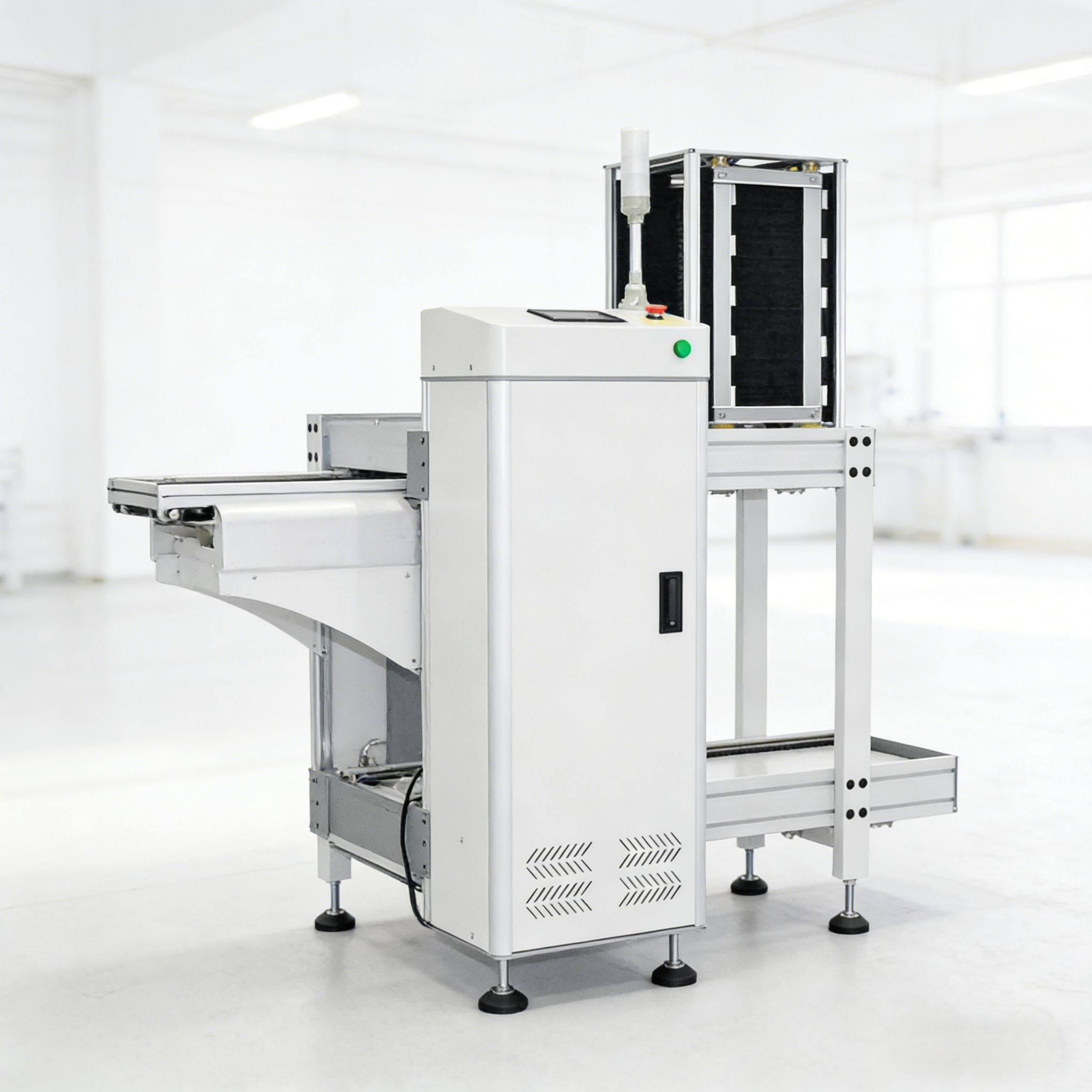

Brunimind Automatic PCB Loader | SMT Production Line PCB Feeding & Transfer Machine

Brunimind automatic PCB loader provides stable PCB feeding and transfer for SMT production lines. PLC control, touch screen, auto-counting, sound-light alarm, CE & ISO certified.

Basic Use

Brunimind this machine is used in the middle section of the SMT production line to transfer PCB boards to the mounting machine.

Product Advantages

Adopts PLC control, stable and reliable.Equipped with touch screen for friendly human-machine interaction and easy operation.With sound and light alarm function.Standard racks are adopted with strong versatility.The lifting stroke of the material rack can be adjusted according to the thickness of the PCB.Built-in automatic counting function, convenient for production statistics.Equipped with signal communication interface, easy for online connection with other equipment.The turnover box is clamped by cylinders at multiple angles, stable and reliable, which can correct the deformation of the turnover box.

Product Information

  • Number of tracks: 1 upper track, 2 lower tracks (customizable)

  • PCB feeding time: 6 seconds (or as customer’s requirement)

  • Board spacing: 10, 20, 30, 40 mm or as your requirement

  • Power supply: AC 220V 50/60Hz

  • Air pressure: 4–6 kgf/cm²

  • PCB thickness: 0.6–3.0 mm

  • PCB dimension: 80×50 – 330×250 mm

  • Transmission height: 920±30 mm

  • Weight: 140 KG

  • Machine size: 1250(L)×810(W)×1200(H) mm

  • Material box size: 1750×750×1300 mm



SMT Prodution Line



FAQ

Q:Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT production line, including SMT Pick and Place
Machine, Reflow Soldering Oven,Soldering Paste Printer, and other SMT production line assembly machines.
OEM &ODM service are available.Please feel free to let us know your requirements.
Q:Is it hard to use these machines?
A:No, not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:What's the way of shipping?
A:These are all heavy machines; we suggest you use cargo ship. But components for mending the machines,
air transportation would be fine.
Q:How about the warranty?
A:We support one year warranty. We will regularly update the software for customers. If there is any doubt in
the process of operating the machine, pls feel free contact us. We will help you in time.
Q:How is the training?
A:After buying our machines, your engineers can go to our company.We have English user manual and guide
video to teach you how to use the machine .The user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
