Brunimind AIBM 40X Series Online 2D Optical Detection Equipment

AIBM40X Series‑SMT is a high‑precision online 2D optical inspection equipment for PCBA and chips. Adopting high‑precision industrial cameras and convolutional neural network algorithms, it can automatically identify various defects of SMD components and solder joints such as wrong components, reversed polarity, missing parts, offset, dirt and copper leakage. With the benefits of high detection rate, low false alarm, easy operation and data traceability, it is widely used in SMT production lines





Launch Scheme

AIBM 40X Seires

Product Model AIBM40X Series-SMT



Product Name  Online PCBA chip 2D optical detection equipment

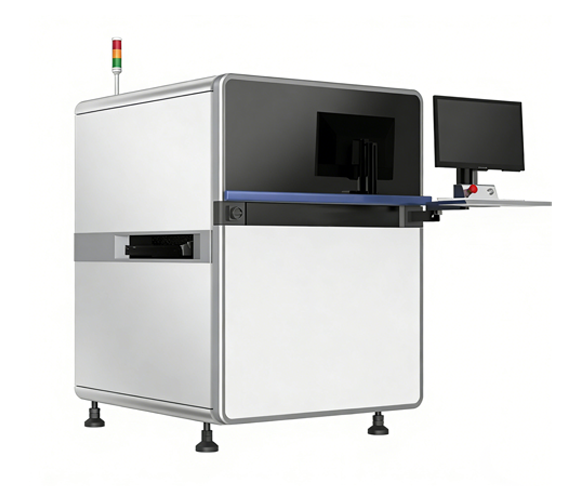

Equipment Structure Diagram



AIBM401 AIBM401-B AIBM401B-D





Product Application Scope



Professional detection of SMD components and solder defects for SMT production line



Test Case



Wrong Piece Reverse Copper Leakage Deviation Missing Parts Dirt



Equipment Principle



High-precision color industrial camera captures PCB board images in real time, adopts convolutional neural network algorithm for image processing, and intelligently identifies and judges components and solder defects accurately.



Core Advantages



1. Bilateral telecentric lens, featuring low distortion and high depth of field, ensuring detection accuracy.

2. Streamlined programming process, user-friendly interface, and support for one-key batch parameter modification, improving work efficiency.

3. Centralized management and control, multi-equipment interconnection, strong anti-interference ability, high detection rate and low false alarm rate, stabilizing production quality.

4. Multiple configuration options to meet different SMT production detection requirements.

5. Complete data traceability, supporting SPC alarm, facilitating production quality management.



Launch Scheme



It can be used behind the SMT section printer, perfectly matching the SMT production line layout and realizing seamless connection.
