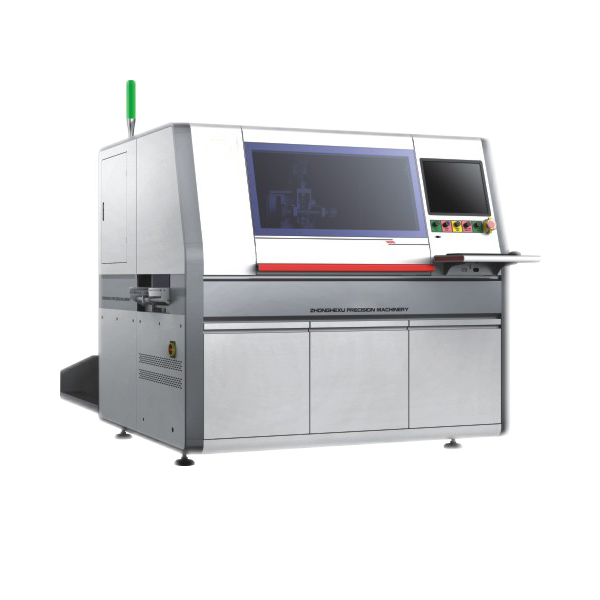

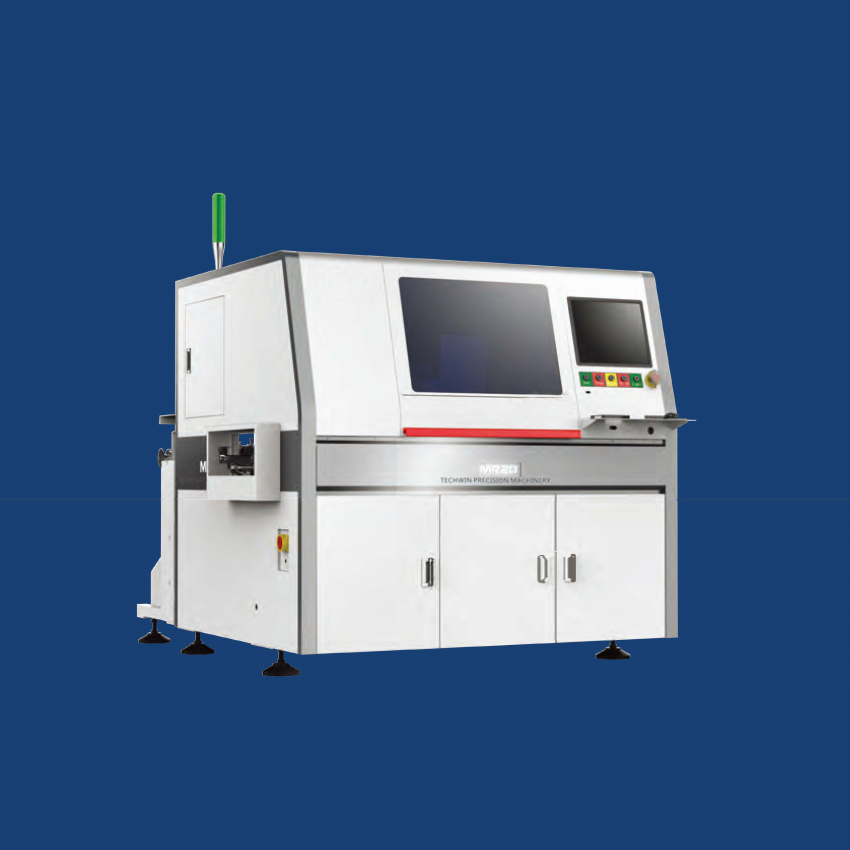

BRUNIMIND MR20E‑S Vertical Automatic Plug‑in Machine

BRUNIMIND MR20E‑S is a compact, high‑efficiency vertical plug‑in machine specially designed for customers with fewer component stations, limited workshop space, and smaller PCB sizes. It delivers reliable insertion performance with a practical speed up to 0.26 seconds per point under optimal conditions, supporting diversified processes to meet different production requirements.

Performance Parameters

MR20E‑S Specification Table 1

Item Specification
Theoretical Speed Approx 20,000 CPH
Insertion Direction 0°‑360°, 1° Increment (−180°‑180° Option)
Lead Span 2.5mm/5.0mm; 2.5mm/5.0mm/7.5mm; 5.0mm/7.5mm/10.0mm; 2.5mm/3.5mm/5.0mm; 2.5mm/5.0mm/7.5mm/10.0mm Selectable
Board Size Max 300mm × 285mm
Process Height 900±20mm
Board Thickness 0.79‑2.36mm
Component Parameter Height max 23mm (26mm option); Diameter within 13mm
Component Style Capacitor, Transistor, Triode, LED, Mini Switch, Resistor, Connector, Coil, Potentiometer, Fuse Block, other radial style taped components
Cut & Clinch Length 1.2 / 1.5 / 1.8mm (Selectable)
Clinch Angle 25°‑45° External Bending; 3.5mm Lead Span Internal/External Bending Selectable
Machine Dimension (Main Body) L1800 × W1600 × H1700mm
Component Station Size L1800 × W1450 × H1100mm
Weight (Main Body) Approx 1100kg
Power Requirement AC220V, Single Phase, 50/60Hz, 4kW

MR20E‑S Specification Table 2

Item Specification
Power Protection UPS (Option, 15 minutes duration after power cut‑off)
Air Pressure 0.6 Mpa
Air Consumption 0.3 M³/min
Environmental Temperature 20℃±10℃
Noise Level Approx 75 dB(A)
Clinch Module Movement AC Servo Motor (Up/Down)
Tape Cutter Single Stroke Cutting Feature (fast, low noise)
Station Feeding System STD Valve
Component Transfer Assemble (CTA) Cylinder
Position Teaching Vision System, Multi Fiducial
Axis Driving System AC Servo Motor
Data Input Style USB Port (Excel Format)
Operation System Chinese/English Interface (Windows Platform), LCD Display
Operation Mode Auto / Semi Auto / Manual
Component Density High Density Insertion Style
Worktable Rotation Conveyor Track
Board Inload Conveyor Inload Left to Right (Selectable)
Programming On‑line Teaching
Loader/Unloader Option

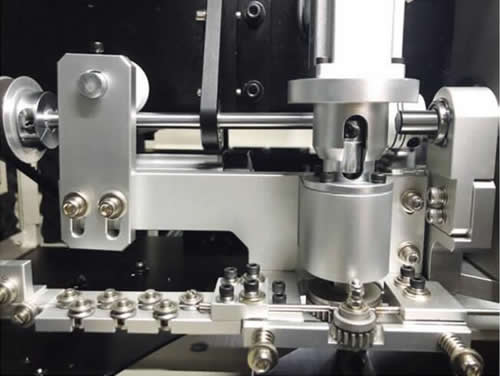

Efficient and reliable transmission system

In the face of fragile component pins, you need high-precision transmission components to ensure no deformation during transmission. Our high-precision transmission system can ensure that the component pins will not be deformed at the efficiency of up to 0.15 seconds/piece, thus bringing the highest continuous process reliability.

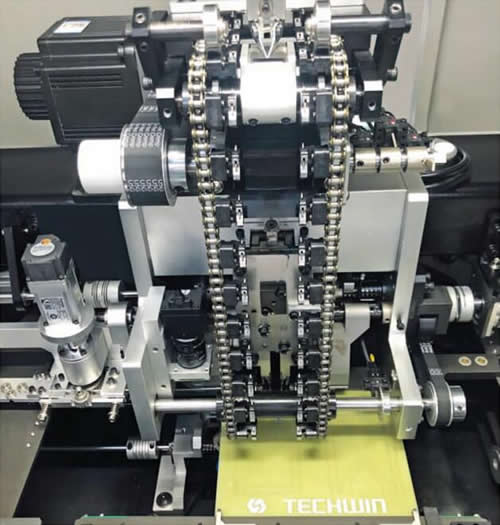

Jumper supply scheme suitable for a variety of wire diameters | the ultimate range of plug-in

The huge feeder capacity, wide compatibility and impressive flexibility ensure your wise choice of value investment. On the ha/ma Series platform, you can also select a variety of jumper supply schemes to realize online production of more than three different wire diameters at the same time, so as to maximize productivity.

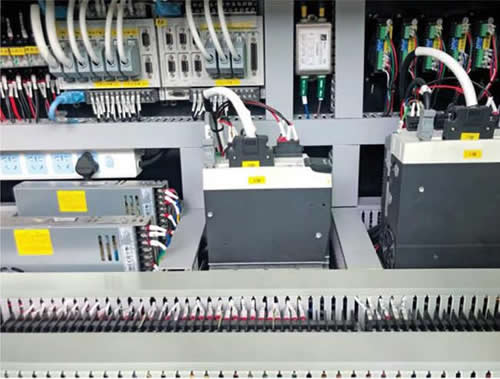

Independent integrated control unit 𞓜 stable and reliable system output

The extraordinary precision and comprehensive intelligent characteristics of all precision machinery require excellent control units to ensure the stable and reliable operation of the system. The system integration unit based on multi-core processing technology configured by zhonghexu for high performance can meet any needs of your plug-in process, and can also perfectly match more intelligent options to improve process capability and achieve more excellent plug-in performance.

Product Features

  • Compact structure ideal for limited workshop space and small PCBs
  • Diversified design adaptable to various production processes
  • High‑precision vision positioning with multi‑fiducial correction
  • Stable servo drive system for accurate and consistent insertion
  • Flexible lead span, clinch angle and cutting length settings
  • User‑friendly Chinese/English Windows interface with USB data import
  • Optional UPS, auto loader/unloader for enhanced reliability

Notes

  1. Machine dimensions exclude extension parts such as signal indication tower.
  2. Weight refers to main body only.
  3. Plug‑in speed varies with component distribution density and layout.
  4. For full details, please refer to the official specification.
ꁆ ꁇ

  • BRUNIMIND MR20E‑S Vertical Automatic Plug‑in Machine

    BRUNIMIND MR20E‑S is a compact, high‑efficiency vertical plug‑in machine specially designed for customers with fewer component stations, limited workshop space, and smaller PCB sizes. It delivers reliable insertion performance with a practical speed up to 0.26 seconds per point under optimal conditions, supporting diversified processes to meet different production requirements.

    넶2 ¥ 0.00

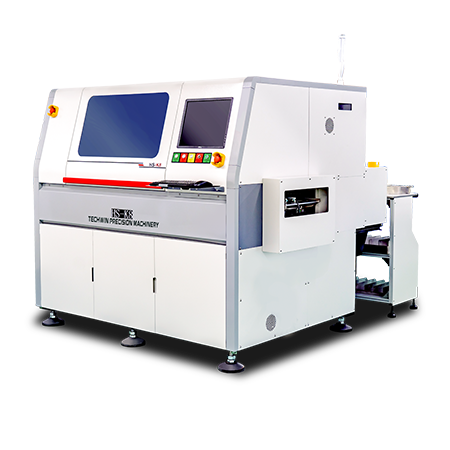

  • brunimind HS-K8 Vertical Plug-in Machine - Automated Radial Component Insertion Equipment

    brunimind K Series HS-K8 Vertical Plug-in Machine: 28000CPH theoretical speed, 0°-360° insertion direction, vision positioning system, supports multiple radial components. High precision, low noise, ideal for PCB production lines.

    넶3 ¥ 0.00

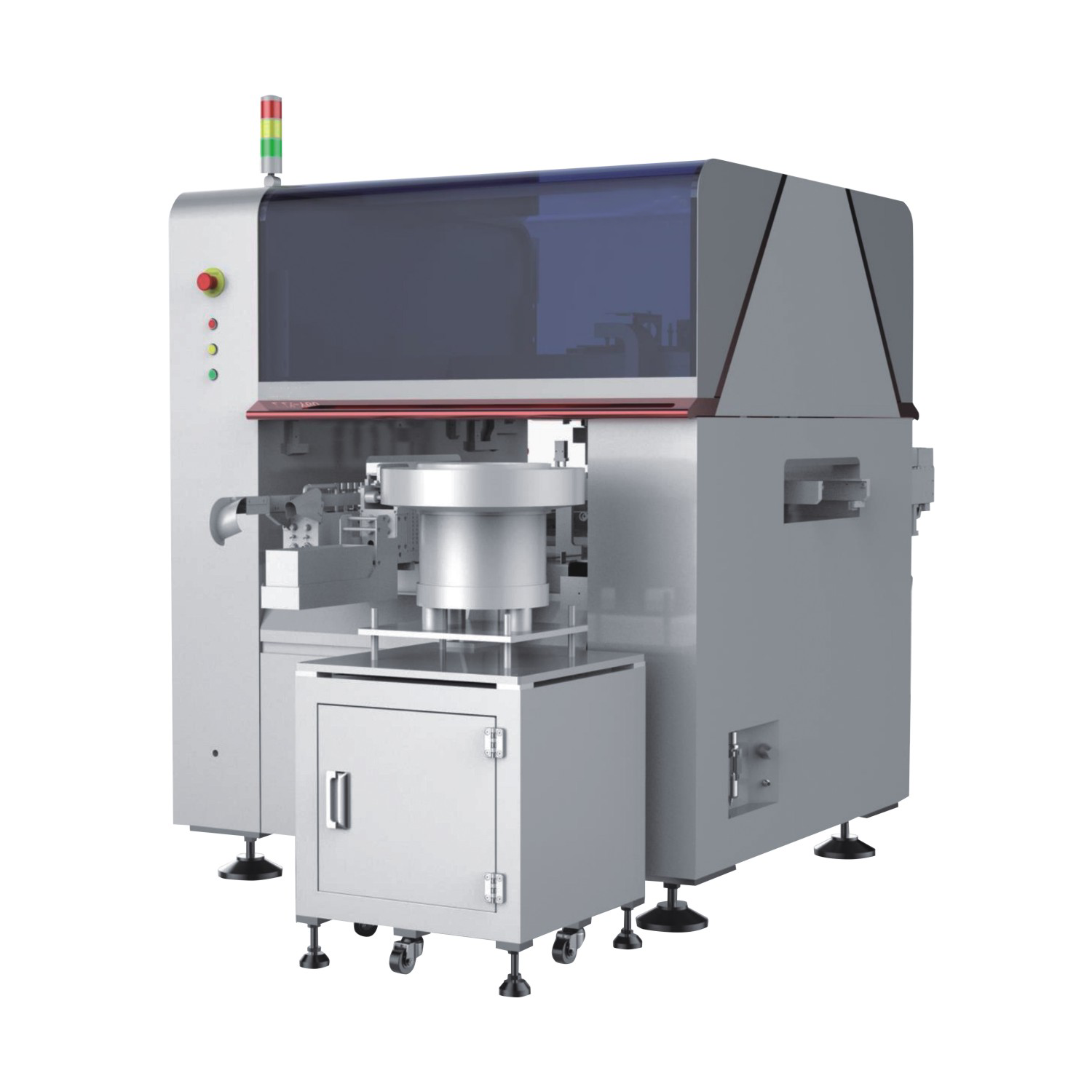

  • BRUNIMIND Y50/Y60 Multifunctional Special-Shaped Plug-In Machine - High Speed & Precision

    BRUNIMIND Y50/Y60 multifunctional special-shaped plug-in machine features compact modular design, flexible integration, high precision (±0.02mm repeatability), and speeds up to 11000CPH. Suitable for various components, it boosts electronic manufacturing efficiency and adapts to diverse production lines.

    넶0 ¥ 0.00

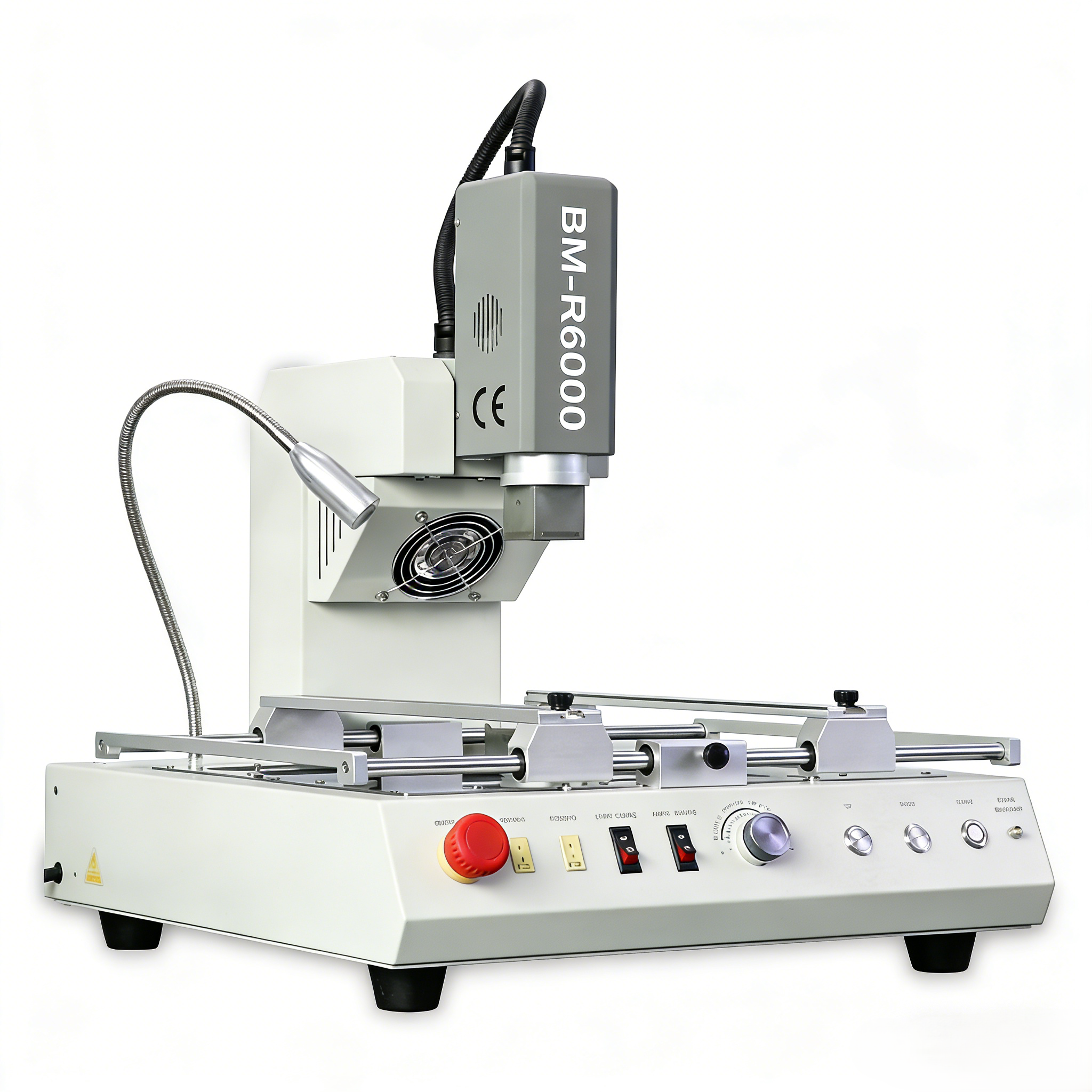

  • BM-R6000 BGA Rework Station | Infrared Heating & One‑Key Operation
