Brunimind Innovation Center Compact U-Type SMT Production Line Project Document
Brunimind Innovation Center Compact U-Type SMT Production Line Project Document
In 2025, Brunimind fully delivered and commissioned a high-specification, fully automatic SMT production line for a leading automotive electronics manufacturer in the Middle East. This production line focuses on manufacturing automotive motor control boards and core supporting components, adhering to strict automotive-grade standards for product consistency, long-term reliability, and process stability.
Unlike standard electronic product manufacturing, automotive PCBA manufacturing has extremely high requirements for process control, quality repeatability, and long-term equipment stability. Additionally, the customer faced a common practical constraint in many factories: limited workshop width.
Instead of expanding facilities or compromising efficiency, the customer partnered closely with Brunimind. Brunimind designed a horseshoe-shaped (U-type) SMT production line to maximize output within a limited floor space, effectively addressing the space constraint challenge.

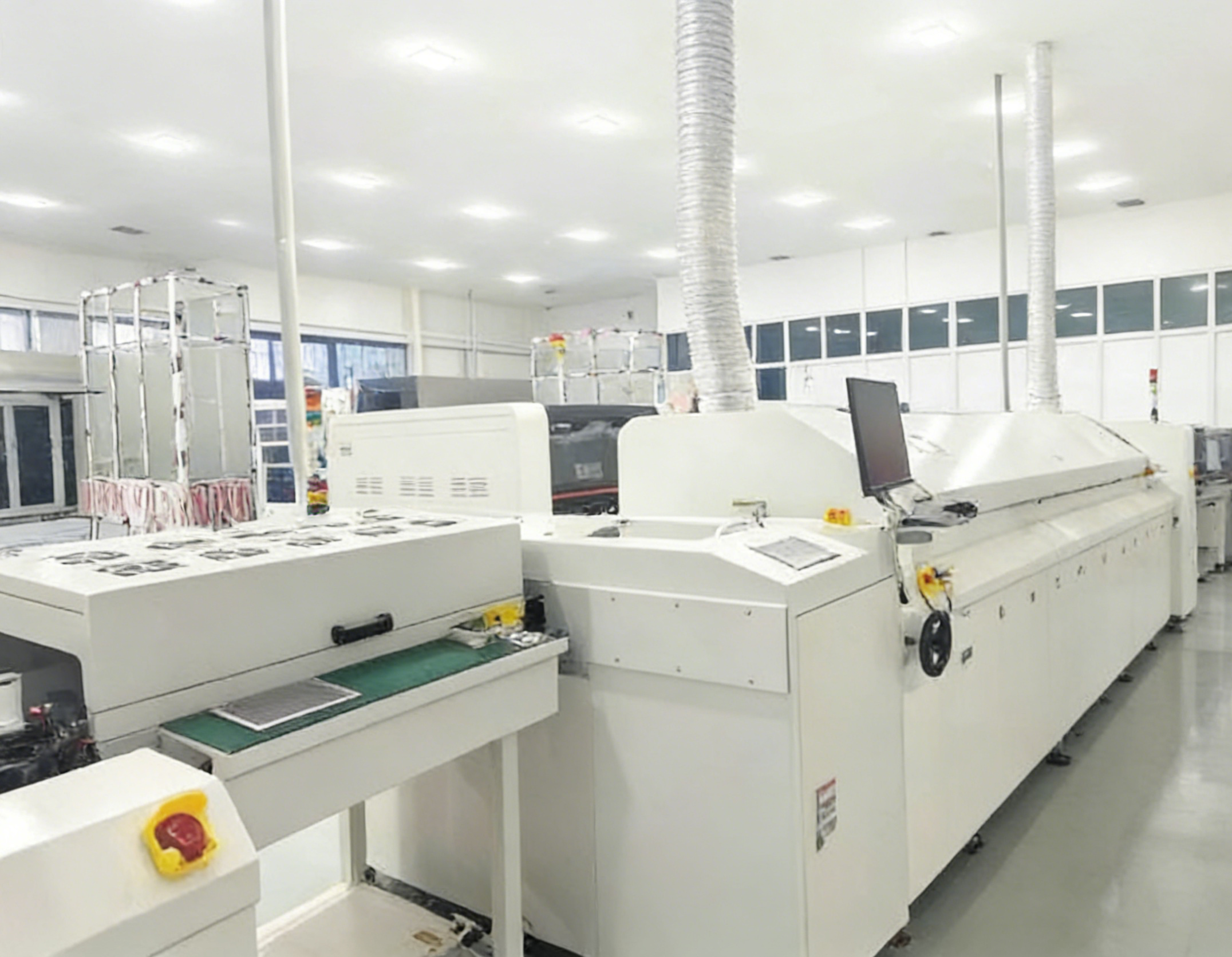

2. On-Site Shooting: Efficient Operation of U-Type SMT Production Line
To clearly demonstrate the on-site implementation of the project, the accompanying on-site video fully records the entire process of equipment installation, U-type production line layout, operator training, and production startup at the customer's factory.
This real-scene footage helps intuitively illustrate how the U-type SMT production line operates efficiently and stably in an automotive electronics workshop with limited space, fully showcasing the core advantages of the compact layout.
On-Site Shooting: SMT Automotive PCBA Manufacturing Production Line Installation and Training Footage
3. Core Challenges: Achieving High-Capacity Automotive-Grade Manufacturing in Limited Space
The main challenges faced by the customer centered on the dual conflict between space constraints and high-specification production requirements, which specifically included:
1. Limited factory width, which made the traditional linear SMT production line layout unfeasible and significantly increased the difficulty of production line planning;
2. The products were automotive motor PCBs equipped with standard SMD and precision BGA components, demanding extremely high precision for placement, soldering, and other processes;
3. Requirement for end-to-end SMT capabilities, covering complete processes such as printing, placement, reflow soldering, inspection, rework, and PCB depaneling;
4. After the production line handover, local operators needed the ability to independently operate and maintain the line without relying on external technical support.
This was not merely a simple equipment procurement project—it was a system-level manufacturing challenge centered on layout, requiring comprehensive and refined system planning and on-site execution.

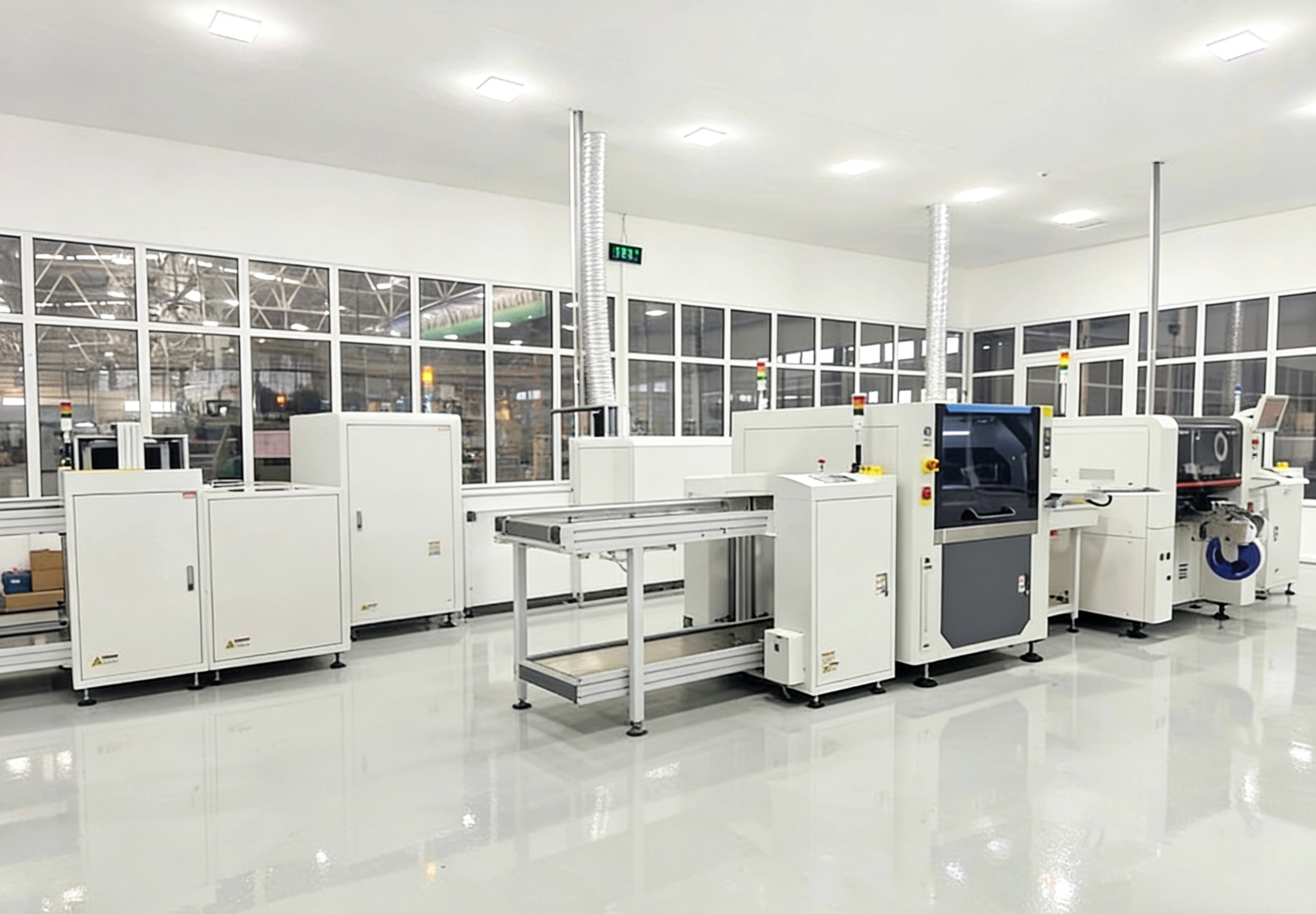

4. Brunimind Solution: Compact U-Type SMT Production Line
After comprehensively evaluating the customer's site conditions, product specifications, and production capacity goals, Brunimind proposed a targeted U-type SMT production line layout. This layout significantly reduced the linear space required for the production line while ensuring smooth material flow and operator convenience, thus achieving dual improvements in space utilization and production efficiency.
4.1 SMT Equipment Configuration (Automotive-Grade Closed-Loop Process)
To meet the high reliability requirements of automotive electronics, the customer's SMT production line was configured as follows, forming a complete closed-loop compact manufacturing process:
• Automatic Solder Paste Printer 5151
• High-Precision Hanwha DECAN S1 Mounter
• L8 Reflow Oven (specially optimized for automotive soldering curves)
• Online AOI Inspection System (ensuring product inspection accuracy)
• NG/OK Unloader (realizing automatic circuit board sorting)
• BGA Rework Station (for repair and rework of high-value components)
• Online Milling PCB Depaneling Machine
• Solder Paste Mixer (stabilizing printing quality and improving process consistency)
• PCB Shuttle Conveyor (accurately supporting the smooth operation of the U-type production line)
4.2 Operator Training and Production Preparation
Brunimind's on-site engineering team conducted a specialized on-site training program to ensure that the customer's engineering team could fully operate the production line independently. The specific training objectives included:
• Independently operate all SMT equipment in the entire line and proficiently master equipment operation specifications;
• Quickly complete product changeovers and efficiently perform daily equipment maintenance;
• Independently handle basic production line faults and abnormalities without external support.
Following systematic training and trial production verification, the customer successfully entered a stable, independent large-scale production phase, where both production line capacity and product quality met the expected standards.
