In January 2026, BRUNIMIND engineers delivered a comprehensiveon-site technical supportprogramme for a newly established manufacturing enterprise in Kazakhstan, facilitating the commissioning of a bespokeSMT DIP integrated production linefor professionalPC motherboard assembly. This project marks BRUNIMIND's continued commitment to supporting localised electronics manufacturing in Central Asia, providing turnkey solutions that bridge equipment investment and operational success.
This turnkey project encompassed full equipment installation, precision commissioning, process validation, and systematic operator training, enabling the factory to achieve a seamless transition from equipment delivery to stable mass production- a critical factor for Kazakhstan's growing electronics manufacturing sector.
The case exemplifies the rising demand for localised electronics manufacturing in Central Asia, where enterprises (including those in Kazakhstan) increasingly prioritise production stability, quality consistency, and rapid capacity scaling- a trend equally prominent across Europe. The successful deployment of integrated SMT DIP lines now hinges on robust local engineering support, underscoring that expert on-site services are the linchpin in translating capital equipment investment into tangible production performance. BRUNIMIND's on-site technical support for SMT & DIP PC motherboard assembly in Kazakhstan addresses this critical need for local manufacturers.
|
Parameter |
Details |
|
Client Location |
Kazakhstan |
|
Product Type |
PC Motherboards |
|
Line Configuration |
Integrated SMT DIP Production Line |
|
Service Scope |
Installation, Commissioning, Training, Optimisation |
The client is a leading local manufacturer in Kazakhstan specialising in the production of high-mix PC motherboards for domestic and regional Central Asian markets. Ahighly flexible SMT line designwas the paramount selection criterion, necessitating a solution that could address short-term delivery pressures while ensuring long-term production scalability- key priorities for Kazakhstan's electronics manufacturers looking to compete regionally.
Faced with escalating market demand and stringent quality benchmarks, the client defined three core objectives:
1.Minimise manual rework and assembly errors for consistent PC motherboard quality.
2.Enhance production output without a proportional increase in labour costs- critical for Kazakhstan's manufacturing sector.
3.Establish in-house technical capabilities to enable autonomous day-to-day operations of the SMT DIP production line.
Following a comprehensive evaluation, the client selected BRUNIMIND's custom-engineered solution, wherein the SMT DIP production line was uniquely tailored to their PCB specifications, throughput requirements, and the skill level of their workforce. BRUNIMIND's expertise in Kazakhstan's local manufacturing landscape was a key factor in this selection.
The Solution: Integrated SMT DIP Production Line for PC Motherboard Assembly
BRUNIMIND designed a complete PCB assembly solution comprising two parallel yet interoperable systems:SMT (Surface Mount Technology)andDIP (Through-Hole Technology). This dual-system architecture allows for independent operation while enabling seamless synergy within a unified factory layout, thus maximising overall production efficiency- ideal for Kazakhstan's high-mix PC motherboard manufacturers.

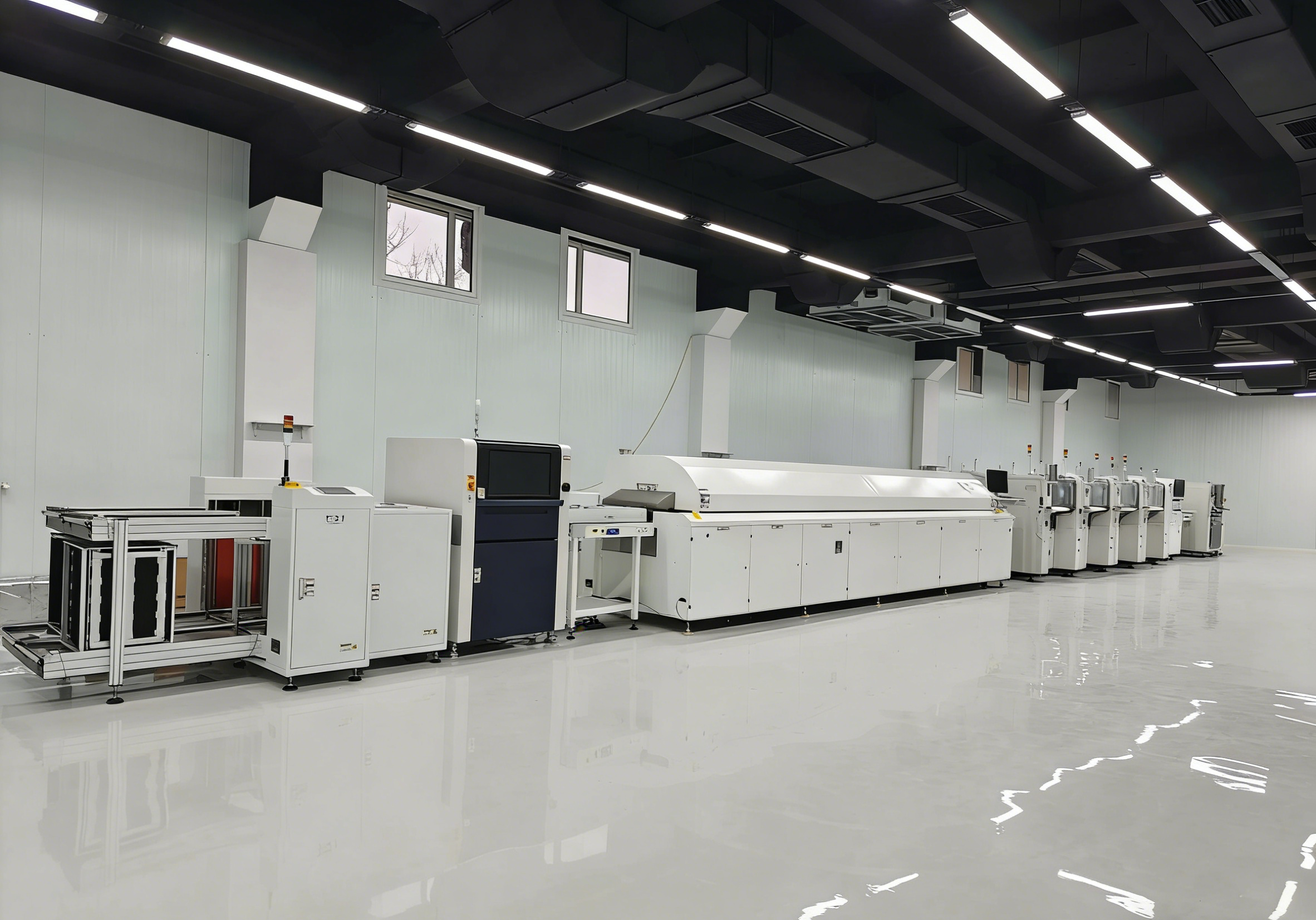

SMT Line Highlights for PC Motherboard Manufacturing
Configured specifically for the rigours of PC motherboard manufacturing, the SMT line places paramount focus onsolder paste printing precisionto ensure consistent solder joint formation on high-density, fine-pitch layouts. Key equipment and configuration advantages include:
•Automated Solder Paste Printer: Calibrated for high-precision solder paste deposit profiles, ensuring uniform application even on dense PCB layouts- critical for reliable PC motherboard performance.
•Multi-Module Placement Machine: Equipped with high-speed and precision placement heads, enabling rapid and accurate pick-and-place of all electronic components (from small chips to large integrated circuits) for PC motherboards.
•Advanced Reflow Oven: Features multi-zone temperature control and optimised thermal profiling, guaranteeing superior solder joint integrity and avoiding component damage- essential for SMT line reliability in Kazakhstan's manufacturing facilities.
•In-Line Inspection Equipment: Integrates SPI (Solder Paste Inspection) and AOI (Automated Optical Inspection) systems for real-time quality monitoring, detecting defects early in the production process to reduce rework.
•Intelligent Conveyor System: Ensures smooth and stable material flow throughout the SMT process, reducing board damage and improving production continuity for high-volume PC motherboard assembly.
This integrated SMT configuration fundamentally ensures the placement accuracy of all electronic components and a high degree of consistency in soldering quality, meeting the strict requirements of PC motherboard manufacturing- a key benefit for BRUNIMIND's clients in Kazakhstan.

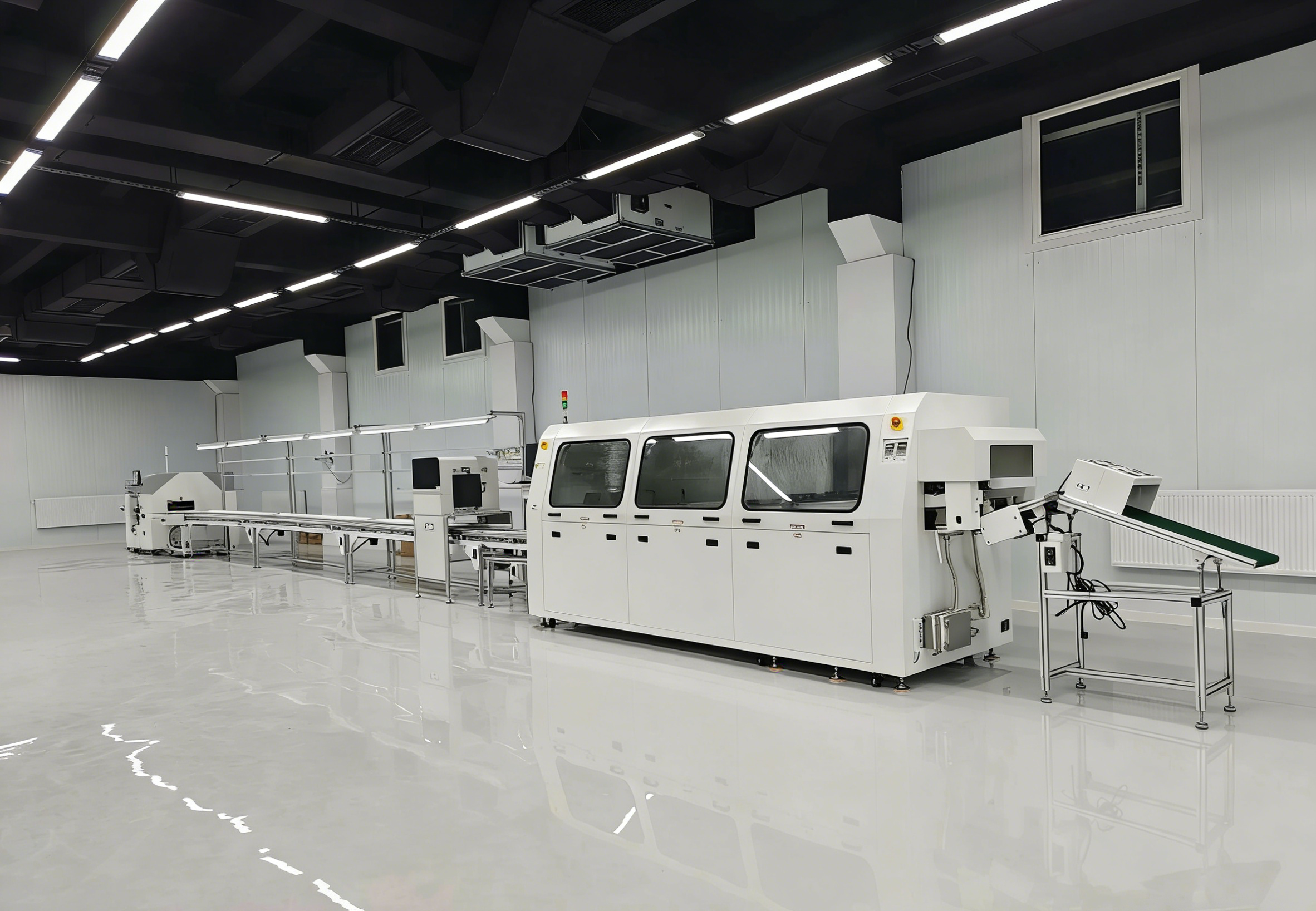

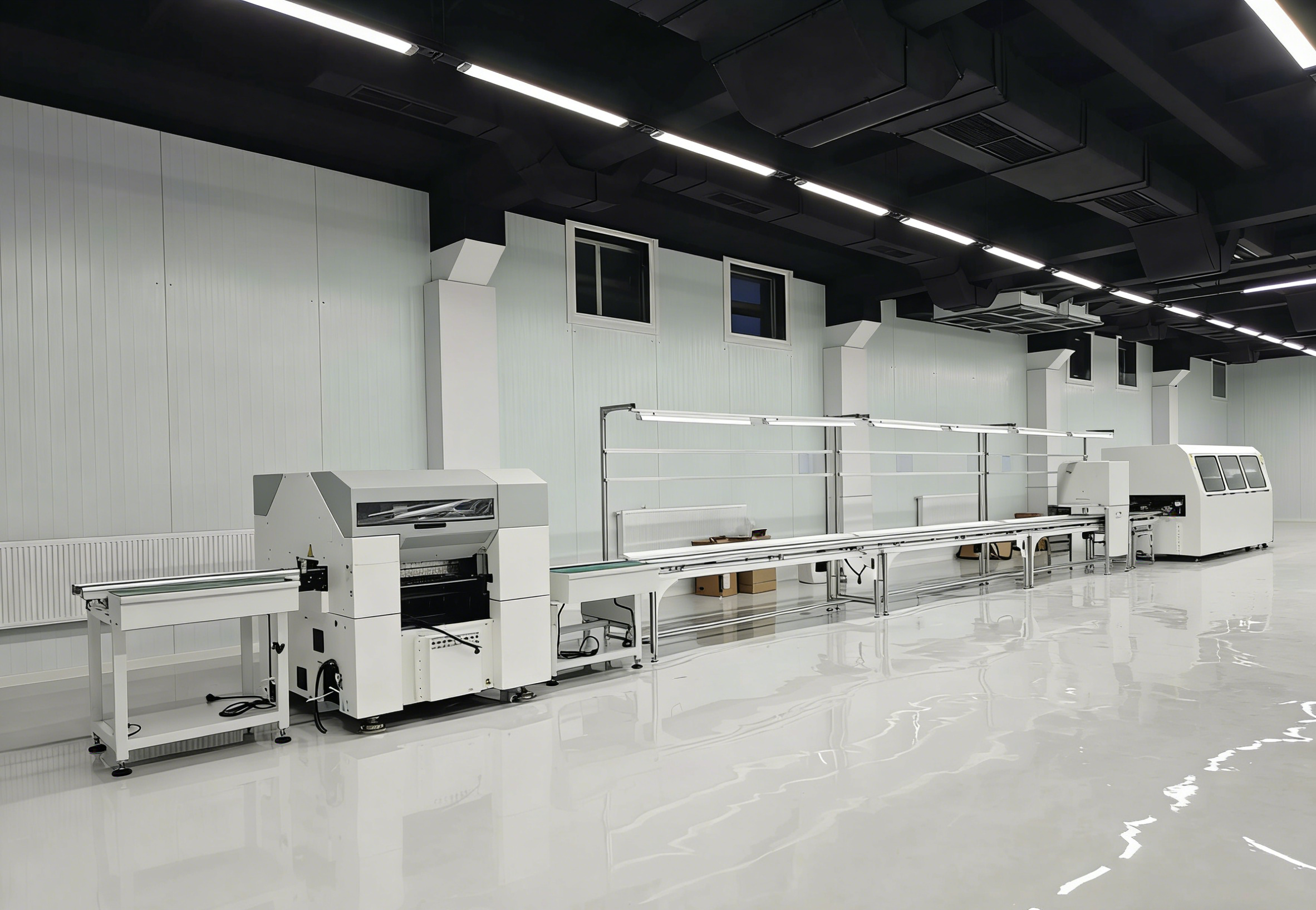

DIP Line Highlights for PC Motherboard Assembly
To accommodate the assembly of connectors and through-hole components commonly used in PC motherboards, the DIP line incorporates aprecision wave soldering processas its core, ensuring uniform void-free filling and long-term mechanical reliability. Key equipment and configurations include:
•Hybrid Insertion Line: Combines manual and semi-automatic insertion stations, balancing operational flexibility for special components and efficiency for standard parts in PC motherboard assembly.
•Odd-Form Insertion Machine: Specialised for components with non-standard leads, ensuring accurate insertion and reducing manual errors- critical for consistent PC motherboard quality.
•Customised Wave Soldering Machine: Features adjustable wave height and temperature, achieving robust component-to-board interconnection and adapting to different PCB thicknesses for diverse PC motherboard models.
•Integrated Conveyor System: Seamlessly connects each DIP process step, ensuring efficient board transfer and reducing manual handling- improving productivity for Kazakhstan's PC motherboard manufacturers.
The synergistic design of the SMT and DIP systems achieves a balanced production layout, capable of handling surface mount and traditional through-hole operations without bottlenecks, fully covering the assembly requirements of PC motherboards. This integration is a key advantage of BRUNIMIND's solutions for on-site technical support in Kazakhstan.
Production Line Configuration for High-Mix PC Motherboards
The facility employs a complete integrated SMT DIP solution by BRUNIMIND, designed with the core objectives of balancing productivity, flexibility, and quality control to enable the efficient manufacture of high-mix PC motherboards- a top priority for manufacturers in Kazakhstan.
1.Automated Solder Paste Printer (high-precision, suitable for fine-pitch PCBs used in motherboard assembly)
2.SPI (Solder Paste Inspection) System (in-line, real-time defect detection for consistent SMT quality)
3.High-Speed High-Precision Placement System (optimised for diverse component sizes and dense motherboard layouts)
4.Multi-Zone Reflow Oven (temperature-adjustable, with custom thermal profiling function for reliable soldering)
5.In-Line AOI Inspection (post-reflow, full-board defect scanning to reduce rework in PC motherboard production)
6.Intelligent Conveyor and Buffering Systems (stable transfer, avoiding board jams for continuous production)
1.Manual and Automatic Insertion Stations (flexible for different component types in PC motherboards)
2.Wave Soldering / Selective Soldering System (customisable wave parameters for diverse PCB thicknesses)
3.Post-Solder AOI Inspection (detecting soldering defects such as cold joints and bridging in DIP assembly)
4.Final Assembly and Test Preparation Conveyors (connecting to subsequent testing processes for PC motherboards)
This hybrid configuration enables the production line to efficiently handle complex PC motherboard layouts while maintaining adaptability to different board models and production scales, fully meeting the client's high-mix production requirements in Kazakhstan. BRUNIMIND's on-site technical support ensures this configuration operates at peak efficiency from day one.
Why On-Site Technical Support Is Critical for SMT DIP Lines in Kazakhstan
In overseas factory construction projects- including those in Kazakhstan- core risks typically emerge not during machine delivery, but at the critical juncture between installation completion and production startup. In PC motherboard manufacturing, common commissioning challenges include:
•Poor line balancing (inefficient coordination between SMT and DIP equipment)
•Inconsistent soldering quality (caused by improper equipment parameters for PC motherboard assembly)
•Non-reproducible inspection results (incorrect operation of SPI/AOI inspection equipment)
•Operator inexperience and process uncertainty with SMT DIP line operations
•Prolonged pilot production cycles, delaying time-to-market for PC motherboards
If unresolved, these issues directly leadhigh rework rates, delayed deliveries, increased material waste, and even latent risks to the long-term reliability of the motherboards- costly setbacks for Kazakhstan's electronics manufacturers.
Professional on-site technical support from BRUNIMIND effectively bridges the gap between equipment installation and actual production performance. It ensures not only the normal operation of individual machines but also the synchronous coordination of the entire SMT DIP production system, making it the cornerstone of successful overseas production line deployment in Kazakhstan.
On-Site Installation, Commissioning, and Training for Kazakhstan Clients
Upon equipment arrival in Kazakhstan, BRUNIMIND engineers executed a standardised, structured on-site technical support process, delivering end-to-end implementation services tailored to the local manufacturing environment. The core workflow included:
1.Machine Positioning and Safety Installation: Conducting precise positioning of all SMT DIP equipment, commissioning power and pneumatic systems, and performing comprehensive safety verification to ensure compliance with Kazakhstan's local safety standards.
2.Mechanical and Electrical Calibration: Meticulously adjusting mechanical components and electrical systems to ensure positional accuracy of placement equipment and seamless communication between all SMT DIP line modules.
3.Process Parameter Setup and First-Article Validation: Configuring equipment parameters based on the client's PCB design specifications for PC motherboards, conducting trial production of the first PCB, and optimizing parameters to meet quality standards.
4.Operator Training: Providing hands-on training for the client's team in Kazakhstan, covering machine operation, routine maintenance (such as equipment cleaning and part replacement), common fault diagnosis and troubleshooting, and core principles of SMT DIP production workflow.
This phase was critical to the line's success, empowering the client's team in Kazakhstan to not only accept the equipment but also build operational confidence and achieve self-sufficiency in production management- a key goal of BRUNIMIND's on-site technical support services.
Key Technical Challenges and Engineering Solutions for Kazakhstan Manufacturers
Challenge 1: Mixed Component Density on PC Motherboards
PC motherboards integrate a full spectrum of electronic components, from ultra-fine-pitch integrated circuits to large connectors. The significant variance in component type and size demands both high placement accuracy and throughput- a common challenge for Kazakhstan's PC motherboard manufacturers.
Solution:
The line configuration integrates high-speed placement modules with high-precision placement heads to meet efficiency requirements without compromising accuracy. BRUNIMIND engineers optimized nozzle selection and calibrated feeders to ensure consistent placement quality across all component types and sizes, effectively resolving the conflict between speed and precision for Kazakhstan's high-mix production needs.
Challenge 2: Thermal Management of Multilayer PCBs
PC motherboards are thick PCBs with high copper content, presenting challenges in temperature control during reflow soldering. Risks include cold solder joints, excessive component stress, and PCB warpage- issues that can derail production for Kazakhstan's manufacturers.
Solution:
BRUNIMIND engineers developed a custom thermal profile tailored to the specific heat absorption characteristics of the client's PCBs, adjusting the temperature and residence time of each zone in the reflow oven to achieve uniform soldering even in high-density layouts. For high-reliability production requirements, nitrogen reflow soldering technology is available as an option to further enhance solder wetting performance and reduce oxidation-related defects- a valuable solution for Kazakhstan's PC motherboard manufacturers.
Challenge 3: Seamless Integration of SMT and DIP Processes
Segmented SMT and DIP operations can cause workflow fragmentation, leading to inefficiencies and quality control blind spots- a critical issue for Kazakhstan's manufacturers looking to maximise productivity.
Solution:
The production layout was engineered as a continuous integrated system, with conveyors seamlessly connecting the SMT and DIP processes. This design enhances full-process traceability, reduces material handling, and ensures uncompromised quality control from solder paste printing to final soldering, eliminating workflow bottlenecks for Kazakhstan's PC motherboard assembly lines.
The Tangible Value of BRUNIMIND On-Site Support in Kazakhstan
With over 800 complete SMT&DIP production lines delivered globally, BRUNIMIND remains focused onsystem-level manufacturing solutionsrather than mere equipment sales- a distinction that benefits clients in Kazakhstan. Leveraging extensive project experience, we deliver fully automated, end-to-end traceable SMT solutions that empower enterprises to achieve long-term quality control, production transparency, and scalable manufacturing management.
Every BRUNIMIND project in Kazakhstan includes a comprehensive service portfolio tailored to local needs:
•Factory layout planning (optimising equipment placement for efficient SMT DIP workflow)
•Process flow optimisation (reducing production cycles and defect rates for PC motherboard assembly)
•Full installation coordination (ensuring on-time equipment commissioning in Kazakhstan)
•Systematic engineering training (building in-house technical capabilities for local teams)
•Long-term technical support (providing timely solutions for post-commissioning issues with SMT DIP lines)
From project design to operational handover, our core objectives remainsustainable performance, operational stability, and future scalability, delivering production line solutions perfectly aligned with the evolving needs of Kazakhstan's electronics manufacturers. BRUNIMIND's on-site technical support for SMT DIP PC motherboard assembly is designed to help local businesses thrive in regional and global markets.
Building a professional PC motherboard production line is not merely a matter of procuring advanced equipment; it demands sophisticated system integration capabilities, deep engineering expertise, and extensive hands-on commissioning experience- all areas where BRUNIMIND excels for clients in Kazakhstan.
Professional on-site technical support is instrumental in helping factories in Kazakhstan avoid costly production startup errors, significantly accelerating the ramp-up phase, and establishing a stable long-term production system- a value that is particularly pronounced in overseas projects characterised by technical complexity and high cross-cultural communication costs. BRUNIMIND's proven track record in Central Asia, including Kazakhstan, makes us the trusted partner for SMT DIP production line solutions and on-site technical support.
